Cisco

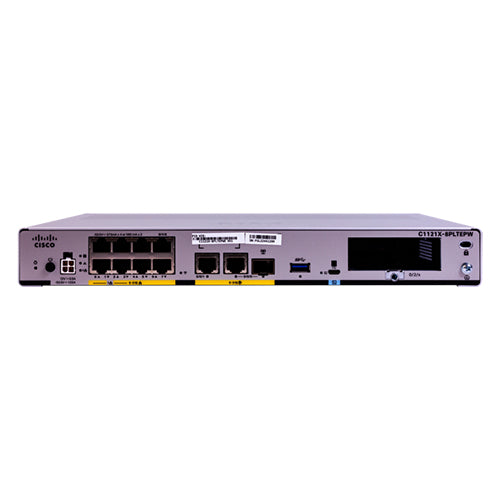

Cisco C1121X-8PLTEPWZ | ISR 1100X 8-Port PoE+ Router, 2x GE WAN, LTE, Wi-Fi

C1121X-8PLTEPWZ

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco C1121X-8PLTEPWZ is a compact ISR 1100X branch router designed for distributed enterprise and SMB deployments requiring integrated connectivity. It combines 8 Gigabit Ethernet LAN ports with optional PoE+ support, dual Gigabit WAN interfaces, pluggable 4G LTE Advanced cellular with GPS and SMS, and embedded Wi-Fi access point in a single fanless platform. With 8GB DRAM and flash, SD-WAN capabilities, and Cisco IOS XE Software, it delivers secure, reliable routing for retail, branch offices, kiosks, and remote sites.

Features

Integrated 8-port Gigabit Ethernet switch with VLAN, QoS, and Layer 2/3 routing
- Dual WAN connectivity with Gigabit Ethernet RJ45 and SFP fiber options
- Pluggable 4G LTE Advanced cellular module with dual SIM support for WAN failover
- Embedded 802.11ac Wave 2 wireless access point for branch Wi-Fi connectivity
- GPS and SMS support for location-based services and out-of-band management
- SD-WAN capabilities with application-aware routing and policy-based forwarding
- Advanced security features including VPN, firewall, intrusion prevention (IPS), and URL filtering
- Application hosting support with 8 GB memory for Docker containers and third-party apps
- Zero-touch deployment with Cisco Plug and Play (PnP) provisioning
- Centralized management via Cisco DNA Center, vManage, or traditional CLI/web GUI
- Fanless, compact design for noise-sensitive and space-constrained environments
- Optional PoE/PoE+ output for powering edge devices directly from the router
- High availability with dual WAN, cellular backup, and VRRP support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

8x Gigabit Ethernet LAN ports with optional PoE/PoE+ (4 PoE, 2 PoE+ ports)
- 2x Gigabit Ethernet WAN ports: 1x RJ45, 1x GE/SFP combo
- Pluggable 4G LTE Advanced module with GPS and SMS support
- Embedded 802.11ac Wi-Fi access point (EMEA/North America domain)
- 8 GB DRAM, 8 GB Flash memory for app-hosting capabilities
- Maximum encrypted throughput: 650 Mbps (single tunnel, IMIX)
- Cisco IOS XE Software with SD-WAN controller mode support
- Micro USB console (USB 3.0), auxiliary management
- Dimensions: 1.65 x 12.7 x 8.9 inches (H x W x D)
- Weight: 3.74 lb (1.70 kg)
- Power: AC 100-240V, 150W power supply (for PoE configurations)
- Operating temperature: 0° to 40°C (32° to 104°F)
- Fanless, compact desktop design

FAQs

Q: What LTE capabilities does the C1121X-8PLTEPWZ support?
A: This model includes a pluggable 4G LTE Advanced (Category 6) cellular module with GPS and SMS support, designed for EMEA and North America regions. It supports carrier aggregation for wireless WAN failover or primary connectivity in mobile branch deployments.

Q: Can this router power PoE devices like IP phones and access points?
A: Yes, when equipped with the optional 150W power supply, the C1121X-8PLTEPWZ supports PoE and PoE+ on up to 6 of the 8 LAN ports (4 PoE ports and 2 PoE+ ports), enabling it to power IP phones, wireless access points, and security cameras.

Q: What is the difference between the C1121X and C1121 models?
A: The 'X' designation indicates 8 GB DRAM and 8 GB Flash memory for application hosting capabilities, compared to 4 GB DRAM/Flash in non-X models. This enables support for advanced SD-WAN features, container applications, and larger routing tables.

Q: Does this router support SD-WAN deployments?
A: Yes, the C1121X-8PLTEPWZ runs Cisco IOS XE Software and supports SD-WAN controller mode with up to 650 Mbps encrypted throughput. It integrates seamlessly into Cisco SD-WAN fabric for automated provisioning, traffic steering, and centralized management.

Q: What Wi-Fi domain does the WZ suffix indicate?
A: The 'WZ' suffix indicates Wi-Fi regulatory domain Z, which is approved for use in EMEA (Europe, Middle East, Africa) and North America regions. The embedded 802.11ac access point operates within the regulatory requirements for these markets.
