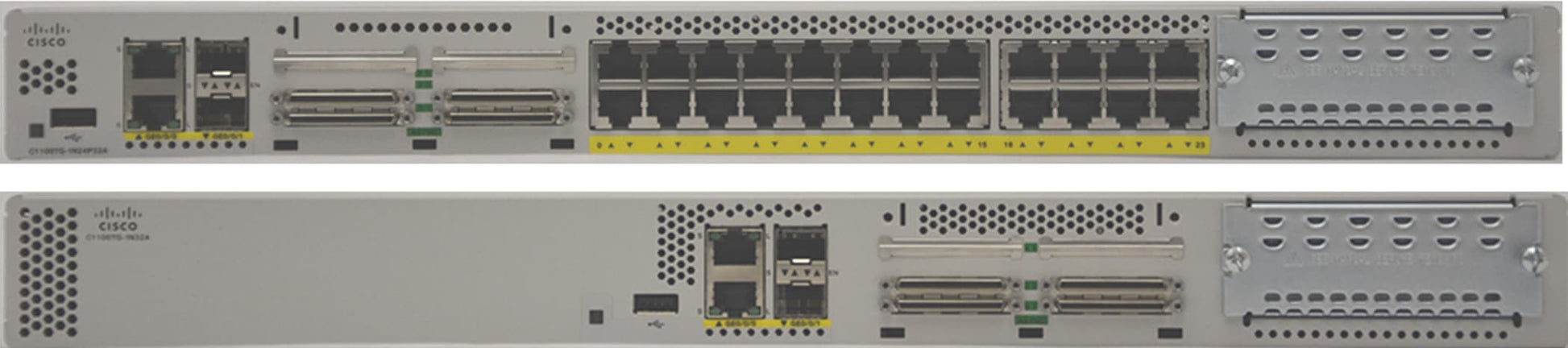

• Cisco C1100TG-BRA async module bracket on 2960X switch
1 1

Cisco

Cisco C1100TG-BRA | 1100TG Async Module Mounting Bracket, Passive Accessory

C1100TG-BRA

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This mounting bracket is an accessory for the Cisco 1100 Terminal Services Gateway (1100TG) chassis. It supports the async module mounting and cable management on the 1100TG, helping keep async cabling tidy in console server and terminal services deployments.

The bracket is designed for the 1100TG chassis models C1100TG-1N32A, C1100TG-1N24P32A and C1100TGX-1N24P32A, which each provide 32 onboard async ports in a 1 rack unit chassis. It is used with the optional 16-port async daughter card (C1100TG-16A), taking a chassis to as many as 48 async ports. The wider 1100TG platform also accepts NIM-16A and NIM-24A async modules for up to 72 async ports in total.

The bracket is a passive mechanical accessory with no power requirement and needs no licence. Any licensing, including the optional SL-1100TG-APP-K9 and SL-1100TG-SEC-K9 licences, relates to the 1100TG chassis rather than the bracket.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports async cable management on the 1100TG chassis
- Designed for use with the 16-port async daughter card
- Suits 1RU 1100TG deployments with 32 onboard async ports
- Passive mechanical design with no power draw
- Part of the Cisco 1100 Terminal Services Gateway platform, which scales to 72 async ports in one rack unit

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Async module mounting bracket / chassis accessory
- Compatible chassis: C1100TG-1N32A, C1100TG-1N24P32A, C1100TGX-1N24P32A
- Async port support: up to 48 ports (32 onboard + 16 on the daughter card)
- Compatible async daughter card: C1100TG-16A (16-port)
- Compatible async NIMs on the platform: NIM-16A, NIM-24A (up to 72 total async ports)
- Chassis rack height: 1 rack unit
- Chassis dimensions (H x W x D): 44 x 444 x 305 mm (1.73 x 17.5 x 12 in.)
- Power: passive mechanical accessory, no power required
- Licensing: none required for the bracket

FAQs

Q: Which chassis models does this bracket suit?
A: It is an accessory for the Cisco 1100TG chassis models C1100TG-1N32A, C1100TG-1N24P32A and C1100TGX-1N24P32A.

Q: Does the bracket need a licence?
A: No. The bracket is a passive mechanical accessory. The optional SL-1100TG-APP-K9 and SL-1100TG-SEC-K9 licences apply to the 1100TG chassis itself.

Q: How many async ports does the 1100TG support with this bracket?
A: The bracket supports cabling for up to 48 async ports on the 1100TG, made up of 32 onboard ports plus 16 ports on the daughter card.

Q: Which async module is it used with?
A: It is used with the 16-port async daughter card C1100TG-16A on the 1100TG chassis. The platform also supports NIM-16A and NIM-24A async modules.

Q: Does the bracket require power?
A: No. It is a passive mechanical accessory and needs no power.
