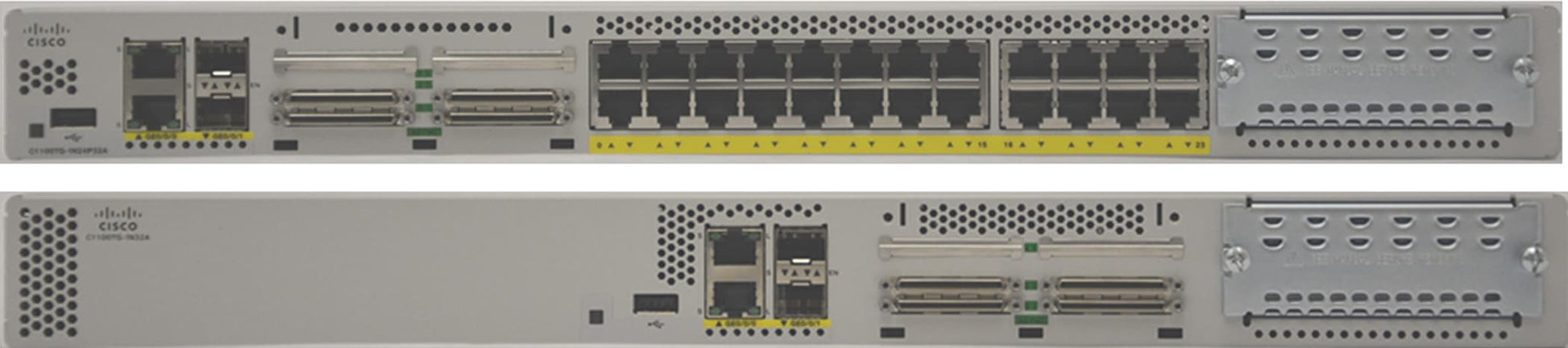

• Cisco C1100TG-16A 16-port async serial module with RJ-45 RS-232 ports
1 1

Cisco

Cisco C1100TG-16A | 1100 TSG 16-Port Async Module, RS-232 RJ-45

C1100TG-16A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The C1100TG-16A is a 16-port asynchronous serial daughter card for the Cisco 1100 Terminal Services Gateway. It suits network teams that need secure remote console access and out-of-band management of routers, switches, servers and IoT devices across data centres, branch sites and remote locations.

The card adds 16 RS-232 async ports with RJ-45 connectors, taking the host gateway from 32 onboard async ports to 48. Each port runs at up to 230.4 Kbps, with selectable rates from 300 bps to 230400 bps, 7 or 8-bit characters and even, mark, none, odd or space parity. Combined with a 24-port NIM-24A, a single gateway can reach a maximum of 72 terminal server ports. Connections to equipment use the Cisco CAB-ASYNC-8 asynchronous cable.

The module is a daughter card for the C1100TG-1N32A, C1100TG-1N24P32A and C1100TGX-1N24P32A gateways, with one 16-port daughter card supported per gateway. It draws power from the host gateway and needs no separate power supply or licence of its own.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Expands the Cisco 1100 TSG built-in 32 async ports to 48 for secure remote console and out-of-band management
- Supports a wide range of RS-232 console and terminal connections to networking, compute and IoT devices
- Works alongside the optional NIM-16A or NIM-24A in the NIM slot for up to 72 terminal server ports
- Runs under Cisco IOS XE Software on the host gateway, with IOS Firewall, IPsec and NAT protecting connected devices
- Connects to equipment using the Cisco CAB-ASYNC-8 asynchronous cable

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product ID: C1100TG-16A
- Module type: Daughter card
- Async ports: 16 x RS-232 (RJ-45)
- Daughter cards supported per gateway: 1
- Onboard async ports on host gateway: 32 (48 with this daughter card)
- Maximum terminal server ports per gateway: 72 (32 onboard + 16 daughter card + 24 via NIM-24A)
- Maximum per-port speed: 230.4 Kbps
- Serial data rates: 300, 600, 1200, 2400, 4800, 9600 (default), 14400, 19200, 32000, 38400, 48000, 56000, 57600, 64000, 72000, 115200, 128000, 230400 bps
- Parity: even, mark, none, odd, space
- Character support: 7 or 8-bit, 1 start bit, 1 stop bit
- Cabling: Cisco CAB-ASYNC-8 asynchronous cable
- Host gateway rack height: 1 RU
- Host gateway dimensions (H x W x D): 44 x 444 x 305 mm
- Host gateway operating temperature: 0 to 40 C
- Host gateway relative humidity: 5% to 85%

FAQs

Q: Does the module need its own licence?
A: No. The card needs no separate licence. The host Cisco 1100 TSG runs Cisco IOS XE, with optional licences such as SL-1100TG-APP-K9 for Application Experience and SL-1100TG-SEC-K9 for Security.

Q: Which gateways is the C1100TG-16A compatible with?
A: It is a daughter card for the Cisco 1100 Terminal Services Gateway models C1100TG-1N32A, C1100TG-1N24P32A and C1100TGX-1N24P32A, with one 16-port daughter card per gateway.

Q: Does it need a separate power supply?
A: No. The module is powered from the host Cisco 1100 TSG, which has an internal AC or DC power supply selected when the gateway is ordered.

Q: How many terminal server ports can one gateway reach with this card?
A: The card takes the onboard async ports from 32 to 48. Adding a NIM-24A gives a maximum of 72 terminal server ports per gateway.

Q: What cable connects the ports to my devices?
A: The ports use the Cisco CAB-ASYNC-8 asynchronous cable for connections to console and terminal devices.
