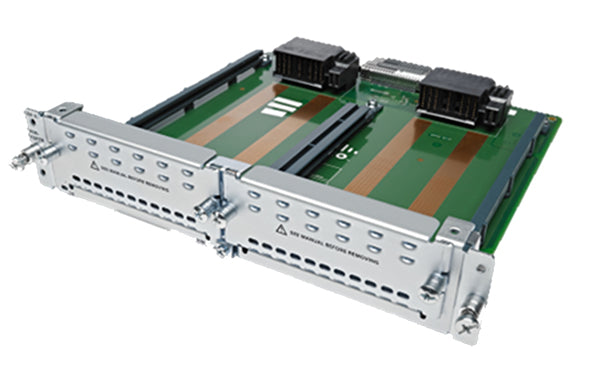

• Cisco C-SM-NIM-ADPT adapter with silver rack, green circuit board, brown stripes
1 1

Cisco

Cisco C-SM-NIM-ADPT | Catalyst 8300 SM-X to NIM Adapter, 2x NIM Slots

C-SM-NIM-ADPT

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The C-SM-NIM-ADPT is a single-wide carrier card in the SM-X form factor for Catalyst 8300 Series Edge Platforms. It lets two Network Interface Modules (NIMs) be installed in a Service Module slot, so branch and edge routers can use spare SM slots for legacy voice, WAN, LTE, DSL and serial NIMs.

The adapter provides 2 NIM slots and supports up to 2 NIMs per carrier card with no performance or functionality limits. It is hot-swappable for 1- and 2-port NIMs, and the adapter itself can be removed without powering off the device. NIM density rises to as many as 6 NIMs on C8300-2N2S models and 3 NIMs on C8300-1N1S models. It measures 40 x 206 x 207 mm, weighs 500 g and operates from 0 to 40 C.

The adapter is powered by the host Catalyst 8300 chassis through the SM slot and has no separate licence. It is supported in the SM slots of C8300-2N2S-4T2X, C8300-2N2S-6T, C8300-1N1S-4T2X and C8300-1N1S-6T platforms.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-NIM carrier card for Catalyst 8300 Series platforms in an SM-X form factor
- Hot-swap (OIR) of 1- and 2-port NIMs when installed in the adapter
- Direct NIM-slot installs support online insertion only, so the adapter adds flexibility
- Raises NIM density to up to 6 NIMs on 2N2S models and 3 NIMs on 1N1S models
- Adapter itself is hot-swappable and can be removed without powering off the device
- Supports voice, WAN, LTE, DSL, async and Ethernet LAN/WAN NIMs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: SM-X (single-wide service module slot)
- NIM slots per adapter: 2
- NIMs per carrier card: up to 2 with no performance or functionality limits
- Hot-swap (OIR): supported for 1- and 2-port NIMs
- Dimensions (H x W x D): 40 x 206 x 207 mm (1.57 x 8.11 x 8.15 in)
- Weight: 500 g
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 70 C (-38 to 150 F)
- Relative humidity: 5% to 95%
- Operating humidity: 5% to 85%
- Max NIMs with adapter, C8300-2N2S-4T2X: 6
- Max NIMs with adapter, C8300-2N2S-6T: 6
- Max NIMs with adapter, C8300-1N1S-4T2X: 3
- Max NIMs with adapter, C8300-1N1S-6T: 3
- Spare part number: C-SM-NIM-ADPT=

FAQs

Q: Does the adapter need its own licence?
A: No. There is no separate licence for the adapter. Functionality follows the software and licence of the host Catalyst 8300 platform.

Q: Which Catalyst 8300 models support the adapter?
A: The adapter is supported in the SM slots of the C8300-2N2S-4T2X, C8300-2N2S-6T, C8300-1N1S-4T2X and C8300-1N1S-6T.

Q: How many NIMs can I install in total?
A: Each adapter holds 2 NIMs. With the adapter fitted, 2N2S models can run up to 6 NIMs and 1N1S models up to 3 NIMs.

Q: Which NIMs work in the adapter?
A: Supported NIMs include NIM-LTEA-EA/LA, NIM-VAB-A, NIM-1T/2T/4T, NIM-16A/24A, the CE1T1-PRI and BRI NIMs, the FXS/FXO voice NIMs, NIM-ES2-4/8, C-NIM-2T, C-NIM-1M and C-NIM-1X. The C-NIM-4X, C-NIM-8M and C-NIM-8T modules are not supported in the adapter.

Q: How is the adapter powered?
A: It draws power from the host Catalyst 8300 chassis through the SM slot. NIMs with PoE, such as C-NIM-1M, need a PoE-capable power supply in the host.
