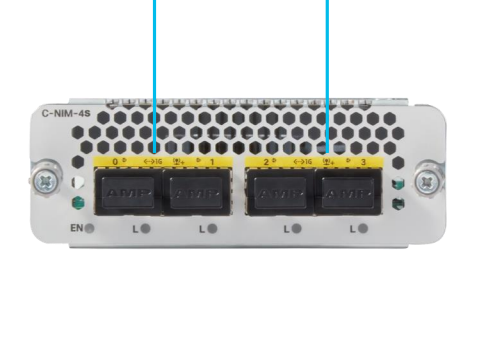

Cisco C-NIM-WAN-4S | Catalyst 8000 4-Port 1GE SFP WAN Module, MACsec
SKU:C-NIM-WAN-4S
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The C-NIM-WAN-4S is a next-generation WAN network interface module (NIM) for Cisco Catalyst 8000 Series edge routers. It adds four 1 Gigabit SFP ports to a supported chassis, making it suited to WAN edge sites that need fibre or SFP-based 1G links with encryption on the wire.
The module provides 4 x 1 Gigabit Ethernet SFP ports with Layer 3 configurable Ethernet. WAN MACsec is supported with MKA, using either pre-shared keys or certificate-based encryption, scaling to a maximum of 8 peers per 1G WAN port. PLIM QoS provides ingress classification and strict-priority queueing on the Gigabit Ethernet interface. It is the 4-port 1GE SFP variant, as opposed to the C-NIM-WAN-2X, which offers SFP+ 10G/1G ports.
The module is supported on the Catalyst C8375-E-G2 and requires Cisco IOS XE 17.18.1a or later. It fits only in a NIM slot, or in the SM-NIM Carrier Adapter in non-NEBS setups. For 1000Base-X SFP links, both ends must use the same negotiation setting, either both auto or both non-auto, otherwise the link will be down.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- WAN MACsec with MKA, including pre-shared key and certificate-based encryption
- Layer 3 configurable Ethernet on all four SFP ports
- 1 Gigabit SFP connectivity for fibre and SFP-based WAN links
- PLIM QoS ingress classification and strict-priority queueing
- Next-generation NIM form factor designed for enhanced security, reliability and performance
- Scales to 8 MACsec peers per 1G WAN port
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Module type: Next-generation WAN network interface module (NIM)
- Ports: 4 x 1 Gigabit Ethernet SFP
- Layer 3: Layer 3 configurable Ethernet
- Security: WAN MACsec with MKA, pre-shared key and certificate-based encryption
- MACsec scaling (1G WAN port): Maximum 8 peers per port
- Form factor: Supported only in a NIM slot
- SM-NIM Carrier Adapter: Supported in non-NEBS setups
- Supported platform: Catalyst C8375-E-G2
- Minimum software: Cisco IOS XE 17.18.1a or later
- Negotiation: For 1000Base-X SFP, both ends must use the same setting (both auto or both non-auto)
- QoS: PLIM QoS with strict-priority queue mapping on the Gigabit Ethernet interface
FAQs
Q: Which router platform and software does the C-NIM-WAN-4S require?
A: It is supported on the Catalyst C8375-E-G2 and requires Cisco IOS XE 17.18.1a or later. It fits only in a NIM slot, or in the SM-NIM Carrier Adapter in non-NEBS setups.
Q: Does it need a separate module licence?
A: No separate module licence is specified for the module. Features are enabled through the host router's Smart Licensing, so confirm the tier required for your deployment.
Q: How does the C-NIM-WAN-4S differ from the C-NIM-WAN-2X?
A: The C-NIM-WAN-4S provides 4 x 1GE SFP ports. The C-NIM-WAN-2X is the sibling module with SFP+ ports supporting 10G and 1G.
Q: What MACsec options does it support?
A: It supports WAN MACsec with MKA, using either pre-shared keys or certificate-based encryption. Each 1G WAN port scales to a maximum of 8 peers.
Q: Why would an SFP link stay down after install?
A: For 1000Base-X SFP links, both ends must use the same negotiation setting, either both auto or both non-auto. A mismatch keeps the link down.
