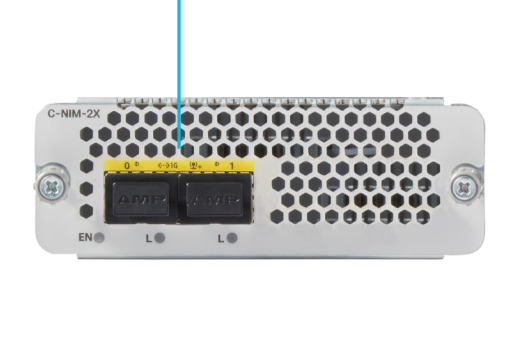

• Silver metallic c-nim-wan-2x network interface module with perforated panel and two black ethernet ports for catalyst 8000
1 1

Cisco

Cisco C-NIM-WAN-2X | Catalyst 8000 2-Port 10G SFP+ WAN Module, Layer 3

C-NIM-WAN-2X

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco C-NIM-WAN-2X is a next-generation Network Interface Module designed for Catalyst 8300 Series edge platforms. This 2-port 10G SFP+ module delivers high-speed WAN connectivity with Layer 3 routing capabilities and 256-bit WAN MACsec encryption for secure enterprise branch deployments. Compatible with NIM slots and the C-SM-NIM-ADPT carrier adapter.

Features

Dual 10G SFP+ ports for high-speed WAN connectivity
- Layer 3 routing with full feature parity to embedded Catalyst 8300 WAN ports
- 256-bit WAN MACsec with Tag-in-Clear support
- MKA (MACsec Key Agreement) protocol with pre-shared key and certificate-based authentication
- Support for 1G and 10G Ethernet speeds per port
- Enhanced security, reliability, and performance for enterprise branch WAN
- Plug-and-play installation with automatic device recognition
- Compatible with C-SM-NIM-ADPT dual-NIM carrier for SM-X slot deployment
- Online insertion support for installation without full shutdown
- Standards-based SFP/SFP+ transceiver compatibility
- Cisco IOS XE software feature parity with ISR and Catalyst platforms
- QoS, routing protocols, VPN, and SD-WAN support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

2x SFP+ ports supporting 1G and 10G connectivity
- Layer 3 configurable Ethernet network support
- 256-bit WAN MACsec encryption (10G: max 16 peers per port; 1G: max 8 peers per port)
- Form factor: Network Interface Module (NIM)
- Compatible with Catalyst 8300 Series platforms
- Compatible with C-SM-NIM-ADPT carrier adapter in non-NEBS setup
- Requires Cisco IOS XE 17.18.1a or later
- Online insertion only (not hot-swappable)
- Supports 1000BASE-X SFP and 10GBASE-R SFP+ transceivers

FAQs

Q: Which Catalyst platforms support the C-NIM-WAN-2X module?
A: The C-NIM-WAN-2X is supported exclusively on Catalyst 8300 Series edge platforms. It can be installed in NIM slots or in the C-SM-NIM-ADPT dual-NIM carrier adapter in SM-X slots. Minimum Cisco IOS XE version 17.18.1a is required.

Q: What is the difference between C-NIM-WAN-2X and C-NIM-1X?
A: The C-NIM-WAN-2X provides two 10G SFP+ ports for dual WAN connectivity, while the C-NIM-1X offers a single 10G SFP+ port. Both support Layer 3 routing and 256-bit WAN MACsec. Choose the C-NIM-WAN-2X when you need dual high-speed WAN uplinks for redundancy or load balancing.

Q: Does the C-NIM-WAN-2X support MACsec encryption?
A: Yes, the module supports full 256-bit WAN MACsec encryption with MKA (MACsec Key Agreement) protocol. 10G ports support up to 16 MACsec peers per port, while 1G ports support up to 8 peers per port. Both pre-shared key and certificate-based MACsec authentication are supported.

Q: Can I use this module for Layer 2 switching?
A: No, the C-NIM-WAN-2X is designed exclusively for Layer 3 routed WAN connectivity. The ports function as native Layer 3 interfaces with full feature parity to the embedded WAN ports on Catalyst 8300 Series platforms. For Layer 2/3 LAN/WAN switching, consider the C-NIM-4X or C-NIM-8T modules.

Q: What types of SFP transceivers are compatible?
A: The C-NIM-WAN-2X supports standard 1G SFP (1000BASE-X) and 10G SFP+ (10GBASE-R) transceivers for fiber connectivity. Copper SFP transceivers and 100BASE/10BASE SFP modules are not supported. Always verify transceiver compatibility with your specific Cisco IOS XE software version.
