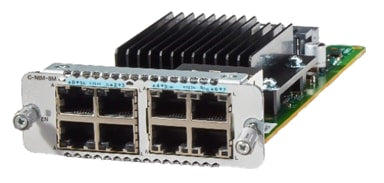

• Cisco C-NIM-8M 8x 2.5G mGig Ethernet switch module
1 1

Cisco

Cisco C-NIM-8M | Catalyst 8300 8-Port 2.5G mGig RJ45 Switch Module

C-NIM-8M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The C-NIM-8M is an 8-port multigigabit switch Network Interface Module for the Cisco Catalyst 8300 Series Edge Platforms. It lets a branch edge router also act as a Layer 2 access switch, a good fit for branch-in-a-box deployments that need multigigabit LAN access for Wi-Fi access points and other mGig devices.

Each of the eight RJ45 ports runs at 100 Mbps, 1 Gbps or 2.5 Gbps. The module supports LAN MACsec in Layer 2 mode and WAN MACsec in Layer 3 mode, with optional Layer 3 routing and full Layer 3 feature parity with the embedded Layer 3 ports. It is part of the LAN/WAN module family and is distinct from the C-NIM-8T (8-port 100M/1G), C-NIM-4X (4-port 1/10G SFP/SFP+) and C-NIM-1M (1-port 2.5G WAN) modules.

The module fits the NIM slots of the Catalyst 8300 Series: C8300-1N1S-4T2X, C8300-1N1S-6T, C8300-2N2S-4T2X and C8300-2N2S-6T. It is powered from the host chassis through the NIM slot. The Catalyst 8300 platform is offered with a Cisco DNA Software subscription.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Combines Layer 2 switching and Layer 3 routing in one NIM
- Hardware-based MACsec for secure LAN and WAN connections
- Multigigabit RJ45 ports up to 2.5 Gbps for Wi-Fi 6/6E access points and other mGig devices
- Lets the edge router work as a branch-in-a-box with downstream switching
- Higher Layer 3 port density at the branch
- Full Layer 3 feature parity with the embedded Layer 3 ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product number: C-NIM-8M
- Module type: Network Interface Module (Switch NIM)
- Ports: 8 x RJ45
- Port speeds: 100 Mbps / 1 Gbps / 2.5 Gbps (mGig)
- Switching: Layer 2 with optional Layer 3
- MACsec: LAN MACsec (Layer 2 mode), WAN MACsec (Layer 3 mode)
- Module category: LAN/WAN modules
- Form factor: NIM (Network Interface Module)
- Host platforms: C8300-1N1S-4T2X, C8300-1N1S-6T, C8300-2N2S-4T2X, C8300-2N2S-6T
- Minimum host software: Cisco IOS XE Release 17.3.2
- Uplinks: none, module ports only

FAQs

Q: Does the C-NIM-8M need its own licence?
A: No separate licence applies to the module itself. The host Catalyst 8300 platform is offered with a Cisco DNA Software subscription.

Q: Which platforms does it work with?
A: It fits the NIM slots of the Catalyst 8300 Series Edge Platforms: C8300-1N1S-4T2X, C8300-1N1S-6T, C8300-2N2S-4T2X and C8300-2N2S-6T.

Q: What port speeds does it support?
A: Each of the eight RJ45 ports runs at 100 Mbps, 1 Gbps or 2.5 Gbps.

Q: How does it differ from the C-NIM-8T?
A: The C-NIM-8T provides eight ports at 100M/1G, while the C-NIM-8M adds 2.5G multigigabit speeds on all eight RJ45 ports.

Q: Does it support MACsec?
A: Yes. It supports LAN MACsec in Layer 2 mode and WAN MACsec in Layer 3 mode.
