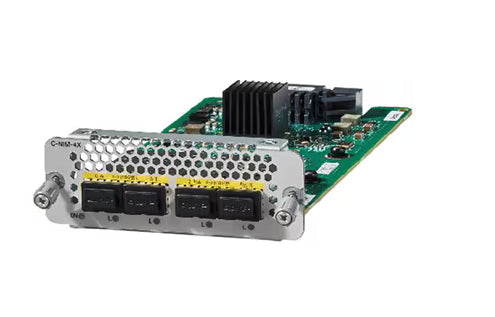

• Cisco C-NIM-4X green circuit board with silver connectors and heatsink
1 1

Cisco

Cisco C-NIM-4X | Catalyst 8000 4-Port 1G/10G SFP/SFP+ Switch Module, MACsec

C-NIM-4X

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 8000 Series 4-port 1G/10G LAN/WAN network interface module is a Layer 2/3 switch NIM for Cisco Catalyst 8300 Series Edge Platforms. It suits branch-office and small to medium business deployments that need integrated switching and routing, including Ethernet WAN access, Cisco SD-WAN, and high-speed LAN links to top-of-rack data centre switches and servers.

It provides four switched SFP/SFP+ ports running at 100M, 1G or 10G, with line-rate Layer 2 switching on every port. The two highest-numbered ports can be configured as native Layer 3 ports for WAN use. IEEE 802.1AE MACsec is supported, with 128-bit and 256-bit options. All four ports share a single 10 Gbps internal backplane link, so the module is oversubscribed 4:1 at full load. This is a non-PoE module, distinct from the 8-port RJ-45 C-NIM-8T and the 8-port PoE C-NIM-8M.

The module is supported in a NIM slot on the Catalyst 8300 Series only, not the Catalyst 8200 Series, and is not supported on the C-SM-NIM-ADPT carrier card. One LAN/WAN module is supported per chassis, and Cisco IOS XE 17.11.1 or later is required. It supports online insertion and removal.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate Layer 2 switching on all ports, with feature parity to ISR 4000 NIMs
- LAN MACsec switch-to-switch in Layer 2 mode and 256-bit WAN MACsec with Tag-in-Clear in Layer 3 mode
- 802.1X with Change of Authorization (CoA) and posture validation
- Two highest-numbered ports configurable as native Layer 3 ports
- Cisco SD-WAN and Catalyst SD-WAN Manager support
- 802.1Q trunking, Spanning Tree, PVST, VTP, Voice VLAN, IGMP snooping, SPAN, storm control, port security, BPDU guard and PortFast
- HSRP, VRRP and GLBP on VLAN interfaces
- SNMP, RMON, Cisco Discovery Protocol and IOS XE CLI management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: Network Interface Module (NIM)
- Ports: 4x SFP/SFP+ switched ports
- Port speeds: 100M/1G/10G (100M via GLC-GE-100FX SFP)
- Layer 3: native Layer 3 configurable on the last two ports
- Backplane: single 10 Gbps internal link, 4:1 oversubscribed at full load
- MACsec (IEEE 802.1AE): 128/256-bit
- PoE: No
- Maximum VLANs: 1024
- Maximum VLAN IDs: 4095
- Spanning Tree instances: 1 per VLAN, maximum 128
- QoS queues: 8 per port
- Secure MAC addresses: up to 100
- Jumbo frames: 8 kB
- Supported platform: Catalyst 8300 Series
- Minimum software: Cisco IOS XE 17.11.1
- Modules per chassis: 1
- Online insertion and removal: Yes

FAQs

Q: Which routers is this module supported on?
A: It is supported in a NIM slot on Catalyst 8300 Series Edge Platforms only. It is not supported on the Catalyst 8200 Series or on the C-SM-NIM-ADPT carrier card.

Q: Does it need a separate licence?
A: No separate module licence is stated. The module runs under the host Catalyst 8300 router's Cisco IOS XE and DNA software licensing.

Q: Does this module provide PoE?
A: No. It has no PoE support. For a PoE option, look at the C-NIM-8M 8-port module instead.

Q: What software version is required?
A: Cisco IOS XE 17.11.1 or later is required on the host Catalyst 8300 router.

Q: Can the ports be used for routed WAN links?
A: Yes. All four ports switch at Layer 2, and the last two ports can be configured as native Layer 3 ports for WAN use.

Q: How does it differ from C-NIM-8T and C-NIM-8M?
A: This module has four SFP/SFP+ ports at 1G/10G with no PoE. C-NIM-8T has eight RJ-45 ports at 10M/100M/1G, and C-NIM-8M has eight 100M/1G/2.5G PoE ports.
