• Cisco C-ANT9104 5GHz dual-band directional Wi-Fi antenna 10dBi
1 1

Cisco

Cisco C-ANT9104 | Catalyst 9104 Stadium Directional Antenna, 2.4/5 GHz, 8-Port DART

C-ANT9104

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9104 Stadium Antenna is an eight-port, polarization-diverse, ultra-low-sidelobe directional patch array for 2.4 GHz and dual 5 GHz Wi-Fi. It is built for stadiums, arenas and other large public venues where high-density, sectorised coverage is needed, and it suits wall or pole mounting.

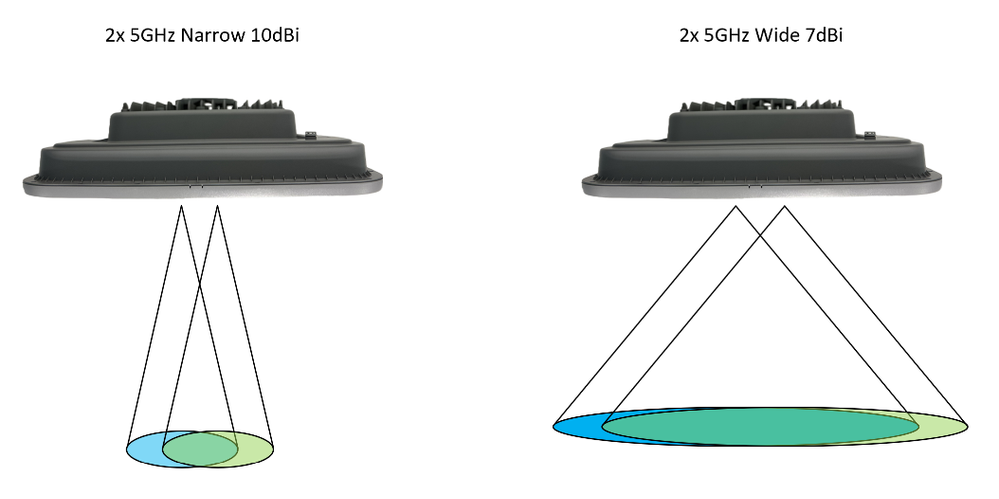

This variant is a dual-band 2.4/5 GHz MIMO antenna with an 8-port DART connection and Self ID, so it identifies itself to the host access point. 6 GHz is not supported. At 2.4 GHz it delivers 6 dBi peak gain with a 70 x 70 degree beamwidth. At 5 GHz the beamwidth is software-switchable between a wide beam (7 dBi, 80 x 25 degrees) and a narrow beam (10 dBi, 25 x 25 degrees), with narrow-beam steering to boresight, 10 and 20 degrees off-centre. One radio can run a wide beam while the other runs a narrow beam. The antenna is IP65 rated and operates from -20 to 60 C without solar loading.

It connects to the octal DART port on a Catalyst 9130AXE access point and is powered and controlled through that AP. The advanced beam-selection parameters are configured in the radio profile on a Catalyst 9800 wireless controller.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Software-controlled, electronically switchable 5 GHz beamwidth: narrow 25 x 25 degrees at 10 dBi or wide 80 x 25 degrees at 7 dBi
- Beam steering of each 5 GHz narrow beam to 0, 10 or 20 degrees off-centre
- One radio can be set to a wide beam and the other to a narrow beam
- Self ID lets the antenna identify itself to the Catalyst 9130AXE access point
- Ultra-low sidelobe design for high-density venue deployments
- Weatherproof IP65 construction for outdoor venue installation
- Advanced beam selection parameters in the Catalyst 9800 controller radio profile

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Eight-port polarization-diverse, ultra-low-sidelobe patch array, directional
- Frequency bands: 2.4 GHz and dual 5 GHz (6 GHz not supported)
- Connection: 8-port DART with Self ID (Catalyst 9130AXE)
- Nominal input impedance: 50 Ohms (all bands)
- VSWR: 2:1 (all bands)
- Peak gain (2.4 GHz): 6 dBi
- Peak gain (5 GHz wide beam): 7 dBi
- Peak gain (5 GHz narrow beam): 10 dBi
- Peak gain (IoT): 6 dBi
- Polarization (2.4 GHz): Ports A and C vertical, ports B and D horizontal
- Polarization (5 GHz): Ports A, C, E, G vertical, ports B, D, F, H horizontal
- 3-dB beamwidth azimuth (2.4 GHz / 5 GHz wide / 5 GHz narrow): 70 / 80 / 25 degrees
- 3-dB beamwidth elevation (2.4 GHz / 5 GHz wide / 5 GHz narrow): 70 / 25 / 25 degrees
- Sidelobe level (5 GHz wide / narrow): -21 dBr / -30 dBr
- Front-to-back ratio (2.4 GHz / 5 GHz wide / 5 GHz narrow): -15 / -20 / -30 dBr
- Beam steering (5 GHz narrow beam): 0, 10 and 20 degrees off-centre
- Dimensions (W x H x D): 59.70 x 46.23 x 14.8 cm
- Weight: 7.03 kg
- Ingress protection: IP65
- Operational wind rating: 100 mph
- Operating temperature (no solar loading): -20 to 60 C
- Operating temperature (with solar cover): up to 50 C
- Storage temperature: -40 to 70 C

FAQs

Q: Which access point does the C-ANT9104 connect to?
A: It connects to the octal DART port on a Catalyst 9130AXE series access point. Self ID lets the antenna identify itself to the AP.

Q: Does the C-ANT9104 support 6 GHz?
A: No. It covers 2.4 GHz and dual 5 GHz only.

Q: Does the antenna need its own power supply or licence?
A: No. It is a passive antenna powered and controlled through the connected Catalyst 9130AXE. The antenna needs no licence, but the host AP uses the usual Catalyst wireless licensing for the chosen deployment.

Q: What controller is needed for the advanced beam selection features?
A: The advanced beam selection parameters are configured in the radio profile on a Catalyst 9800 wireless controller.

Q: How does beamwidth switching work at 5 GHz?
A: Beamwidth is set in software. You can choose a wide beam (7 dBi, 80 x 25 degrees) or a narrow beam (10 dBi, 25 x 25 degrees) per radio, and the narrow beam can be steered to 0, 10 or 20 degrees off-centre.
