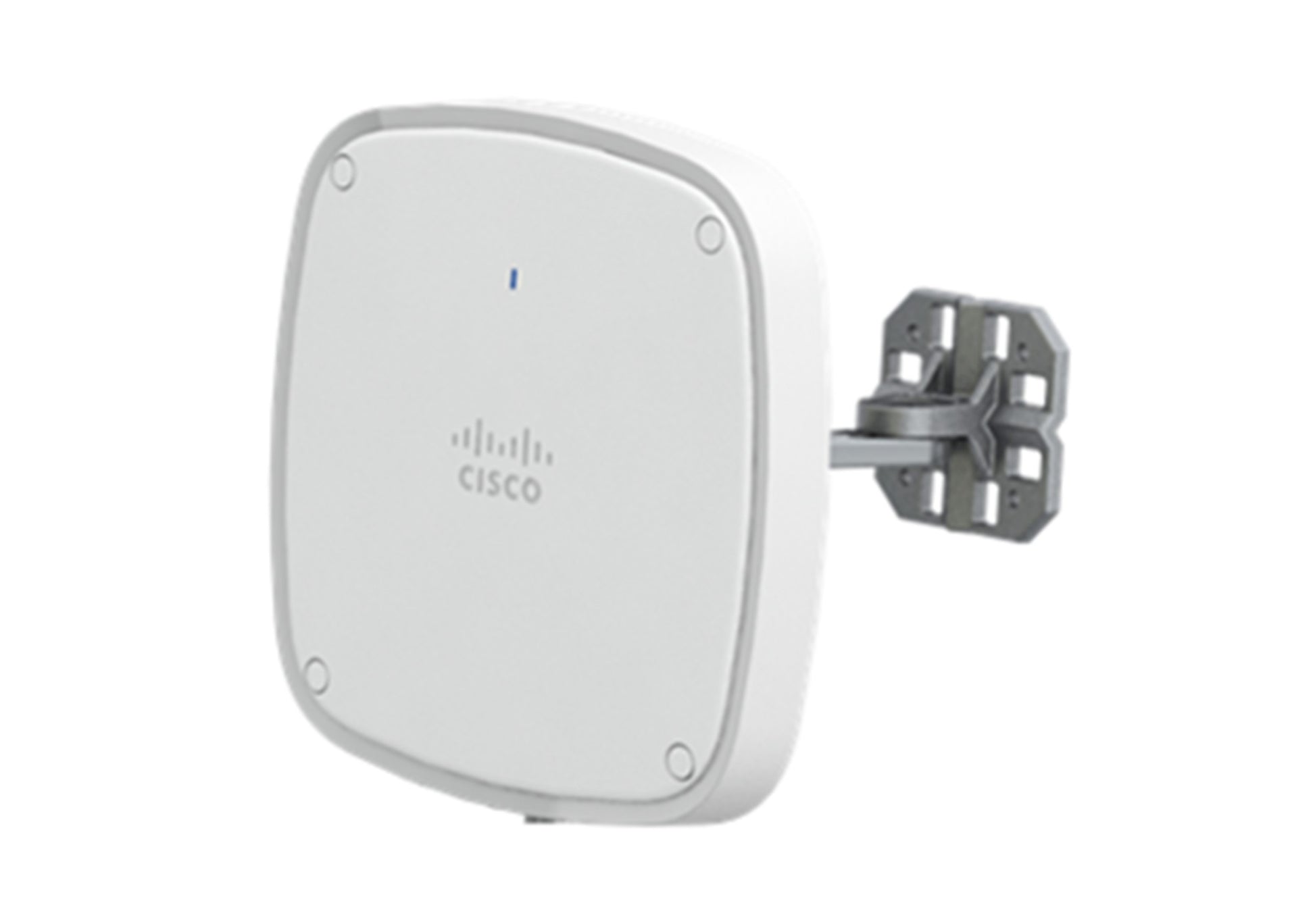

• Cisco C-ANT9103 dual-band directional Wi-Fi patch antenna
1 1

Cisco

Cisco C-ANT9103 | Catalyst 6 dBi 8-Port DART Directional Patch Antenna

C-ANT9103

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco Catalyst dual-band polarization-diverse directional patch antenna covers the 2.4 GHz and 5/6 GHz bands with 6 dBi peak gain on each band. It uses an 8-port DART connector and is designed for wall or pole mounting in indoor and outdoor deployments with compatible Cisco Catalyst access points. An IP66 rating, 120 MPH operational wind tolerance and a wide operating temperature range suit it to manufacturing floors, retail venues and other demanding sites.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Operates in the 2.4 GHz band and the extended 5 GHz band (up to 7.125 GHz), and supports IoT
- Ships with an articulating mount for flat surfaces and masts, adjustable in both horizontal and vertical planes
- For indoor and outdoor use with approved Cisco Catalyst access points that need four dual-band and four 5/6 GHz antennas
- Built-in circuitry lets the access point identify the antenna automatically
- Active LED that mimics the access point LED
- Right-angle DART connector for a discreet hidden AP look
- Suited to installations such as manufacturing and retail venues

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: 8-element MIMO dual-band polarization-diverse, moderately directional patch, wall/pole mount
- Frequency ranges: 2.4-2.484 GHz and 5.15-7.125 GHz (plus 2.4-2.484 GHz IoT)
- Peak gain: 6 dBi (2.4 GHz) / 6 dBi (5/6 GHz)
- 8 RF paths and 16 digital lines
- Connector: right-angle octal DART, with 2.5 ft (76 cm) cable
- Nominal impedance: 50 Ohms; VSWR 2:1
- Beamwidth: 70 degrees elevation; 75 degrees (2.4 GHz) / 70 degrees (5/6 GHz) azimuth
- Front-to-back ratio: >15 dB; port-to-port isolation: >20 dB
- Dimensions: 12 x 12 x 1.2 in. (30.48 x 30.48 x 4.1 cm)
- Weight: 2.5 lbs (1.13 kg)
- Ingress protection: IP66
- Operational wind: 120 MPH
- Operating temperature: -40C to 70C; storage temperature: -60C to 90C

FAQs

Q: What frequency bands does this antenna cover?
A: It covers 2.4-2.484 GHz and 5.15-7.125 GHz, and also supports 2.4 GHz IoT.

Q: What connector does it use?
A: It uses a right-angle octal DART connector with an integrated 2.5 ft (76 cm) cable, providing 8 RF paths.

Q: How is it mounted?
A: It ships with an articulating mount for flat surfaces and masts, adjustable in both horizontal and vertical planes, so it suits wall or pole installation.

Q: Is it suitable for outdoor use?
A: Yes. It is IP66 rated, tolerates operational winds of 120 MPH and operates from -40C to 70C.

Q: Will the access point recognise the antenna automatically?
A: Yes. Built-in circuitry lets a compatible Cisco Catalyst access point identify the antenna automatically, and an LED on the antenna mimics the access point LED.
