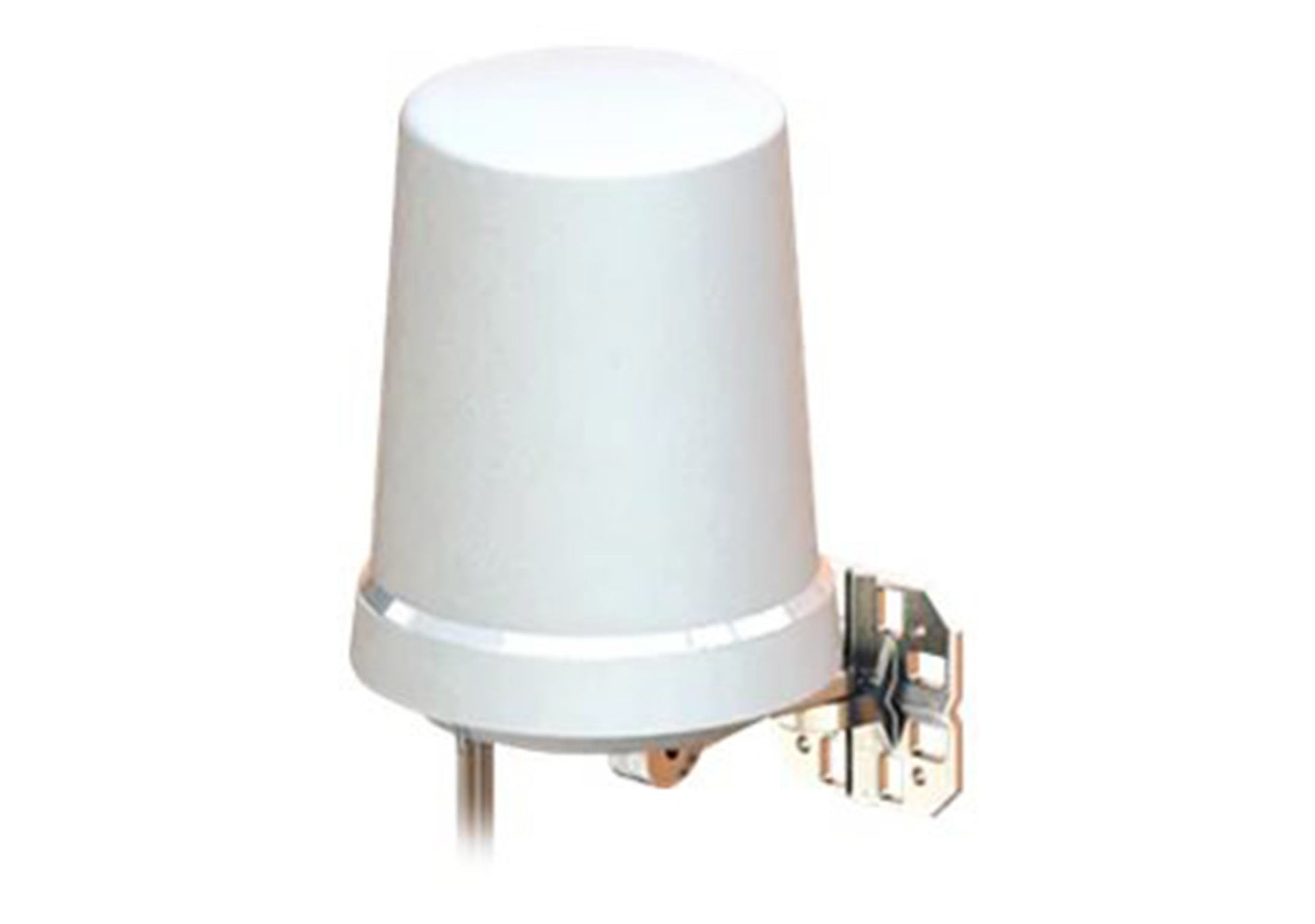

• Cisco C-ANT9102 dual-band omnidirectional Wi-Fi antenna with white dome
1 1

Cisco

Cisco C-ANT9102 | Catalyst Wi-Fi Omnidirectional Antenna, 8-Port DART, 4 dBi

C-ANT9102

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The C-ANT9102 is an 8-element, dual-band, polarization-diverse omnidirectional antenna for Cisco Catalyst 91xx Series access points that use an octal DART port. It is designed for indoor and outdoor deployments, giving omnidirectional Wi-Fi coverage when mounted on a wall, pole or mast.

The antenna delivers 4 dBi peak gain on both the 2.4 GHz band and the 5/6 GHz band, covering 2.4-2.484 GHz and 5.15-7.125 GHz, with a 2.4 GHz IoT path as well. Polarization is vertical at 2.4 GHz and dual-polarised vertical and horizontal at 5/6 GHz. The octal DART connector carries 8 RF paths and 16 digital lines, with built-in circuitry that lets the access point identify the antenna automatically. It is IP66 rated and operates from -40 to 70 C.

The antenna is passive and is powered and identified through the access point's octal DART port. It suits Catalyst 91xx external-antenna access points that need four dual-band (2.4/5/6 GHz) and four 5/6 GHz antenna connections. No licence or subscription is required for the antenna itself.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Octal DART connector with 8 RF paths and 16 digital lines
- Built-in circuitry for self-identification by Catalyst 91xx access points
- Status LED driven via the DART interface
- Articulating mount for flat surfaces and masts, adjustable in horizontal and vertical planes
- Covers 2.4 GHz, the extended 5 GHz band up to 7.125 GHz (5/6 GHz) and IoT
- Suitable for indoor and outdoor deployment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: 8-element MIMO dual-band polarization-diverse omnidirectional, wall/pole mount
- Operating frequency range: 2.4-2.484 GHz / 5.15-7.125 GHz / 2.4-2.484 GHz (IoT)
- Peak gain: 4 dBi (2.4 GHz) / 4 dBi (5/6 GHz) / 4 dBi (2.4 GHz IoT)
- Nominal input impedance: 50 Ohms (all bands)
- VSWR: 2:1 (all bands)
- Polarization: Vertical (2.4 GHz) / dual-polarized vertical and horizontal (5/6 GHz) / mixed (IoT)
- Azimuth plane (3-dB beamwidth): Omnidirectional (all bands)
- Elevation plane (3-dB beamwidth): 60 deg (2.4 GHz) / 30 deg (5/6 GHz) / 60 deg (IoT)
- Connector: Octal DART (8 RF paths, 16 digital lines)
- Cable: 2 ft (60.96 cm)
- Length: 10.45 in (26.55 cm)
- Diameter: 8.03 in (20.4 cm)
- Weight: 2.3 lbs (1043.26 g)
- Environment: IP66
- Temperature range: -40 to 70 C (-40 to 158 F)

FAQs

Q: Which access points does the C-ANT9102 work with?
A: It works with Cisco Catalyst 91xx Series access points that have an octal DART port, meaning models that need four dual-band (2.4/5/6 GHz) and four 5/6 GHz antenna connections.

Q: Does the antenna need a separate power supply?
A: No. It is a passive antenna and is powered and identified through the access point's octal DART port, which also drives the status LED.

Q: Does it need a licence or subscription?
A: No licence or subscription is required for the antenna itself.

Q: Can it be mounted outdoors?
A: Yes. It is IP66 rated and operates from -40 to 70 C, and it can be fixed to a wall, pole or mast using the articulating mount.

Q: What frequency bands does it cover?
A: It covers 2.4-2.484 GHz and 5.15-7.125 GHz, plus a 2.4 GHz IoT path, with 4 dBi peak gain on each band.
