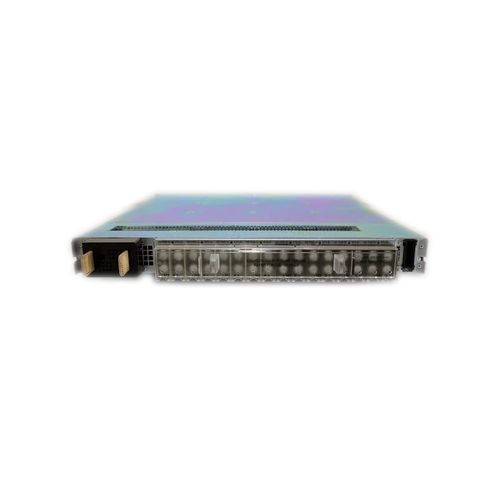

• Cisco ASR9K-DC-PEM-V2 silver metal server rack with DC power slots
1 1

Cisco

Cisco ASR9K-DC-PEM-V2 | ASR 9000 DC Power Entry Module V2, 2.1 kW, -48V DC

ASR9K-DC-PEM-V2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR9K-DC-PEM-V2 is a DC Power Entry Module for the Cisco ASR 9000 Series modular chassis. It brings -48V DC feeds into the router and houses the 2.1 kW DC power supplies (PWR-2KW-DC-V2). It suits service provider and carrier-grade edge and core deployments, such as carrier Ethernet, mobile backhaul and MSE, typically in telco central offices that run -48V DC plant.

The module accepts a DC input range of -40 to -72V (-48V nominal), rated 50A nominal and 60A maximum. It supports A/B feed redundancy and N+1 DC redundancy, with a fully load-sharing power infrastructure and no power zone restrictions. Power module airflow is front-to-back. As part of the pay-as-you-grow power architecture, capacity can be added as line cards are added, which reduces initial capital outlay. The number of PEMs per chassis varies: one in the ASR 9006 and ASR 9904, two in the ASR 9010, three in the ASR 9912 and four in the ASR 9922. No licence or subscription is required for the PEM itself.

The V2 DC PEM is shared across the ASR 9006, ASR 9010, ASR 9904, ASR 9912 and ASR 9922 chassis. AC and DC modules cannot be mixed in the same chassis, so it should be paired with other DC power components. The spare part number is A9K-DC-PEM-V2=.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Field-serviceable power entry module within a modular power architecture
- Pay-as-you-grow power that scales as line cards are added
- No power zone or placement restrictions
- Fully load-sharing power infrastructure
- Supports A/B feed redundancy and N+1 DC redundancy
- Shared across ASR 9006, 9010, 9904, 9912 and 9922 chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: DC Power Entry Module V2
- Product number: ASR9K-DC-PEM-V2
- Spare part number: A9K-DC-PEM-V2=
- Associated power supply: 2100W DC (PWR-2KW-DC-V2)
- DC input: -40 to -72V (-48V nominal)
- Input current: 50A nominal, 60A maximum
- Redundancy: N+1, A/B feed
- Power zones: No restrictions, fully load-sharing
- Airflow: Front-to-back
- Supported chassis: ASR 9006, ASR 9010, ASR 9904, ASR 9912, ASR 9922
- PEMs per chassis: ASR 9006: 1, ASR 9010: 2, ASR 9904: 1, ASR 9912: 3, ASR 9922: 4
- AC and DC mixing: Not supported in one chassis
- Operating temperature (nominal, chassis): 5 to 40 C
- Operating humidity (nominal): 5 to 90% RH
- Storage temperature: -40 to 70 C
- Storage humidity: 5 to 93% RH
- Operating altitude: -60 to 4000 m
- Compliance (chassis): NEBS Level 3, ETSI EN300 386, UL/CSA/IEC/EN 60950-1

FAQs

Q: Does this power entry module need a licence?
A: No. No licence or subscription is required for the power entry module itself.

Q: Which power supplies does it house?
A: It houses the 2.1 kW (2100W) DC power supplies, part number PWR-2KW-DC-V2.

Q: Which ASR 9000 chassis is it compatible with?
A: It is used in the ASR 9006, ASR 9010, ASR 9904, ASR 9912 and ASR 9922 chassis. The number of PEMs required differs by chassis.

Q: Can I mix AC and DC power modules in the same chassis?
A: No. Mixing AC and DC modules in one chassis is not supported, so use DC modules throughout.

Q: What DC input does it accept?
A: It accepts -40 to -72V DC (-48V nominal), rated 50A nominal and 60A maximum, with A/B feed redundancy supported.
