Cisco ASR1002-PWR-AC | ASR 1000 470W AC Power Supply, Hot-Swappable

ASR1002-PWR-AC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 470W AC power supply is a hot-swappable, redundant plug-in module for the Cisco ASR 1000 Series, designed for the ASR 1002 and ASR 1002-X Aggregation Services Routers. It provides primary or redundant AC power for enterprise WAN edge and service provider aggregation deployments.

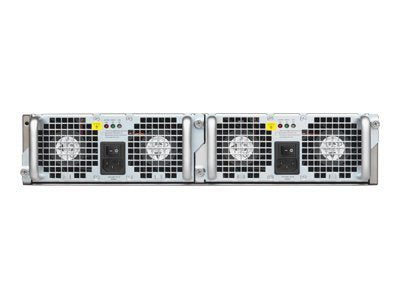

The module delivers up to 470W of output from a wide-range AC input of 85 to 264 VAC at 50/60 Hz, which suits deployments in regions with different mains standards. The ASR 1002 chassis has two power supply slots, slot 0 and slot 1, and both slots must hold the same supply type to run in a 1+1 redundant arrangement. Each module carries its own On/Off switch, status LEDs, cooling fan and AC power inlet on the rear panel, and is held in place by a captive installation screw.

It works with the Cisco ASR 1002 and ASR 1002-X routers, and AC and DC supplies must not be mixed in the same chassis. As a passive hardware component it needs no licence or subscription.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable, so it can be replaced without powering down the router
- Redundant 1+1 power supply design with two supplies per ASR 1002 chassis
- Wide-range AC input suits worldwide deployment
- Built-in On/Off switch, status LEDs and cooling fan on each module
- Captive installation screw secures the module in the chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Device type: Power supply, hot-plug / redundant plug-in module
- Power capacity: 470 W
- AC input voltage range: 85 - 264 VAC
- AC input frequency: 50 - 60 Hz
- Designed for: Cisco ASR 1002 and ASR 1002-X
- Slots in chassis: 2 (slot 0 and slot 1, both must be the same type)
- Chassis max power consumption (AC input): 560 W
- Chassis max power output: 470 W
- Rear-panel features: On/Off switch, status LEDs, captive installation screw, cooling fan, AC power inlet
- Operating temperature (ASR 1002 chassis, nominal): 5 to 40 C
- Storage temperature (ASR 1002 chassis): -40 to 70 C
- Operating humidity (ASR 1002 chassis, nominal): 10% to 85%

FAQs

Q: Does this power supply need a licence or subscription?
A: No. It is a passive hardware component and requires no licence or subscription.

Q: Which routers does it fit?
A: It is designed for the Cisco ASR 1002 and ASR 1002-X Aggregation Services Routers.

Q: How do I set up power redundancy?
A: The ASR 1002 chassis has two power supply slots, slot 0 and slot 1. Install two identical supplies to run in a redundant 1+1 arrangement.

Q: Can I mix AC and DC power supplies in the same chassis?
A: No. Both slots must hold the same supply type, so do not mix AC and DC modules.

Q: What AC input does it accept?
A: It accepts 85 to 264 VAC at 50/60 Hz and delivers up to 470W output.
