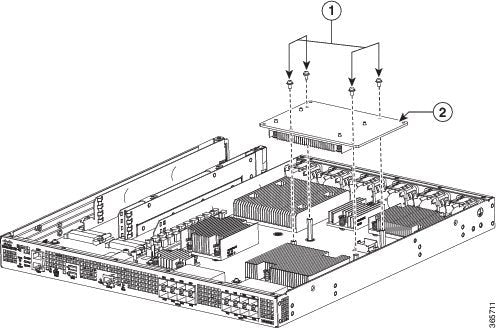

• Cisco ASR1001HX-IPSECHW hardware crypto accelerator for IPsec offload
1 1

Cisco

Cisco ASR1001HX-IPSECHW | ASR 1001-HX Crypto Module, No Default Throughput

ASR1001HX-IPSECHW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR1001HX-IPSECHW is the hardware encryption module for the Cisco ASR 1001-HX router in the ASR 1000 Series. It adds hardware-accelerated IPsec to the chassis, making it suited to VPN headend and aggregation roles and to managed CPE or branch WAN edge deployments that need encrypted traffic without adding service blades.

This SKU ships with no default crypto throughput, so it is enabled in tiers through software-activated licences. The ASR 1001-HX uses two tiers: an 8 Gbps base licence (FLSA1-1HXIPS8G) and an upgrade from 8 Gbps to 16 Gbps (FLSA1-1HX8G16G). Once licensed, the module supports 3DES and AES encryption, DMVPN and Easy VPN. It is powered from the host chassis, which runs dual AC or DC power supplies.

This module is for the ASR 1001-HX only, a 1RU router with 8 x 1GE SFP and 4 x 10GE SFP+ ports and 8 GB of default DRAM. The ASR 1002-HX uses a separate module, ASR1002HX-IPSECHW.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardware-accelerated IPsec encryption for the ASR 1001-HX
- Pay-as-you-grow crypto throughput through software licences, 8G then 16G
- Supports 3DES, AES, DMVPN and Easy VPN once licensed
- Cryptography processed in hardware on the ASR 1000 platform
- No additional service blades required for encryption in managed CPE or headend deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: ASR1001HX-IPSECHW
- Product type: Crypto module for Cisco ASR 1001-HX router
- Default crypto throughput: None (licence required)
- Crypto throughput tiers: 8 Gbps or 16 Gbps via software-activated licence
- Base crypto licence: FLSA1-1HXIPS8G (8 Gbps)
- Upgrade licence: FLSA1-1HX8G16G (8 Gbps to 16 Gbps)
- Encryption support: 3DES, AES, DMVPN, Easy VPN once licensed
- Host platform: Cisco ASR 1001-HX Router (1RU)
- Host chassis dimensions (H x W x D): 43.43 x 439.42 x 466.85 mm
- Host chassis weight: 10.44 kg with dual AC power supplies, 10.21 kg with dual DC power supplies
- Host chassis default memory: 8 GB DRAM
- Host chassis built-in ports: 8 x 1GE SFP, 4 x 10GE SFP+, plus optional 4 configurable 1GE/10GE ports
- Power: supplied by the host chassis power supplies

FAQs

Q: Does this crypto module need a licence?
A: Yes. It has no default crypto throughput, so a crypto throughput licence is required. The ASR 1001-HX uses FLSA1-1HXIPS8G as the 8 Gbps base and FLSA1-1HX8G16G to upgrade from 8 Gbps to 16 Gbps.

Q: What crypto throughput can I reach?
A: Throughput is enabled in two tiers through software-activated licences: 8 Gbps, then 16 Gbps with the upgrade licence.

Q: Which router is this module compatible with?
A: It is for the Cisco ASR 1001-HX router only. The ASR 1002-HX uses a different module, ASR1002HX-IPSECHW.

Q: How is the module powered?
A: It draws power from the ASR 1001-HX chassis, which uses dual AC or DC power supplies. It has no separate power connection.

Q: Which encryption and VPN features does it support?
A: Once licensed, it supports IPsec with 3DES and AES, along with DMVPN and Easy VPN.
