Cisco

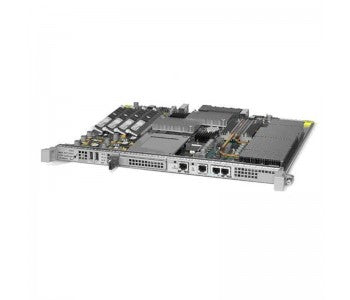

Cisco ASR1000-RP3 | ASR 1000 Route Processor 3 Module, 8GB DRAM, 100GB SSD

SKU:ASR1000-RP3

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR1000-RP3 is the third-generation route processor for the Cisco ASR 1000 Series. It acts as the control-plane engine for high-end service provider and enterprise WAN edge, aggregation and core routing, and suits large routing tables and BGP route-reflector roles. It runs 64-bit Cisco IOS XE and supports HA/SSO redundancy in dual-RP configurations.

This variant has a quad-core 2.2 GHz processor, 8 GB DRAM and a hot-swappable 100 GB SSD, plus 8 GB of built-in eUSB/eMMC bootflash. With 8 GB of memory it supports up to 1,000,000 IPv4 or IPv6 routes, and BGP route-reflector scalability of up to 8,000,000 IPv4 or 6,000,000 IPv6 routes. Memory can be upgraded to 16, 32 or 64 GB, and the SSD to 200 or 400 GB. Management connectivity includes a 10/100/1000 RJ-45 Ethernet port, console and auxiliary ports, a BITS RJ-48 connector and two USB ports.

The module is supported in ASR 1006-X, ASR 1009-X and ASR 1013 chassis and requires Cisco IOS XE 16.3.1 or later. It draws power from the chassis backplane and works with the ASR 1000 Embedded Services Processors in those chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full range of Cisco IOS XE Software features and services
- Optional redundant route processor and dual IOS XE support for improved network resiliency
- Field-replaceable, hot-swappable modular design for minimal service disruption
- Hot-swappable SSD for code storage, boot, configuration and logs
- Stratum-3 clock circuitry with BITS input and output
- Memory scalable up to 64 GB DRAM
- Builds and distributes forwarding information to the Embedded Services Processor
- Manages IPsec/IKE negotiation and session border controller setup and teardown

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Chassis support: Cisco ASR 1006-X, 1009-X and 1013
- Operating system: Cisco IOS XE, 64-bit
- CPU: Quad-core processor, 2.2 GHz
- Memory: 8 GB default, upgradable to 16 GB, 32 GB or 64 GB
- Built-in eUSB/eMMC bootflash: 8 GB
- Storage: 100 GB hot-swappable SSD default, upgradable to 200 GB or 400 GB
- Minimum software: Cisco IOS XE 16.3.1
- Management port: 1 x 10/100/1000 RJ-45 Ethernet
- Console and auxiliary ports: RJ-45
- BITS connector: RJ-48 for input clock and output source
- USB ports: 2
- Routes with 8 GB memory: up to 1,000,000 IPv4 or IPv6 routes
- BGP RR scalability with 8 GB memory: up to 8,000,000 IPv4 or 6,000,000 IPv6 routes
- Redundancy: 1+1 in dual-route-processor configuration, NSF/SSO, ISSU, OIR
- Network management: Telnet and SSH (CLI), console port, SNMP
- Dimensions (H x W x D): 0.92 x 16.7 x 14.19 in. (0.02 x 0.428 x 0.36 m)
- Weight: 7 lb (3.2 kg)
- Operating temperature, nominal: 5 to 40 C
- Storage temperature: -40 to 70 C
- Operating altitude: -60 to 4000 m

FAQs

Q: Which ASR 1000 chassis support the ASR1000-RP3?
A: The ASR1000-RP3 is supported only in ASR 1006-X, ASR 1009-X and ASR 1013 chassis.

Q: What software version does it require?
A: It requires Cisco IOS XE 16.3.1 or later. Router features and throughput are governed by the IOS XE software licensing on the ASR 1000 chassis, and the route processor itself has no separate licence.

Q: Can the memory and SSD be upgraded?
A: Yes. DRAM can be upgraded from 8 GB to 16, 32 or 64 GB using M-ASR1K-RP3-16GB, M-ASR1K-RP3-32GB or M-ASR1K-RP3-64GB. The 100 GB SSD can be upgraded to 200 or 400 GB using M-ASR1K-SSD-200GB or M-ASR1K-SSD-400GB.

Q: Does it support redundant route processor deployments?
A: Yes. Two route processors in a dual-RP configuration provide 1+1 redundancy with NSF/SSO and ISSU, and the modules are hot-swappable.

Q: How is the ASR1000-RP3 powered?
A: It is powered from the chassis backplane of the ASR 1006-X, 1009-X or 1013, and needs no separate power connection.
