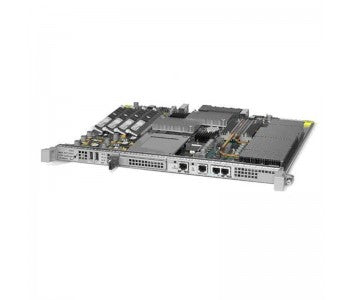

• Cisco ASR1000-RP2 route processor with silver motherboard and 8GB DRAM
1 1

Cisco

Cisco ASR1000-RP2 | ASR 1000 RP2 Route Processor, 8 GB DRAM, 80 GB HDD

ASR1000-RP2

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR1000-RP2 is a Route Processor 2 module for the Cisco ASR 1000 Series Aggregation Services Routers. It handles control-plane processing and system management for modular ASR 1000 chassis, running 64-bit Cisco IOS XE. It suits carrier-grade IP and MPLS aggregation, WAN edge, broadband aggregation, session border control and data-centre interconnect, and a second route processor in the same chassis provides a redundant setup.

This variant uses a dual-core 2.66 GHz processor with 8 GB of DDR2 DRAM as four 2-GB mini-DIMMs, upgradable to 16 GB. Storage includes a 2 GB built-in eUSB bootflash and a front-mounted, hot-swappable 80 GB hard drive. Connectivity covers a 10/100/1000 RJ-45 management Ethernet port, RJ-45 console and auxiliary ports, two USB ports and an RJ-48 BITS connector with Stratum-3 clock circuitry. With 8 GB fitted it supports up to 1,000,000 IPv4 or IPv6 routes, or up to 8,000,000 IPv4 routes in a BGP route reflector role.

The module fits the ASR 1004, ASR 1006, ASR 1006-X, ASR 1009-X and ASR 1013 chassis and draws power from the chassis backplane. It is not used in the ASR 1002 or ASR 1002-F, which have a built-in RP1. Software features and throughput depend on the Cisco IOS XE licensing applied to the chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Central control processor running IOS XE for carrier-grade IP and MPLS routing
- Supports QoS, MPLS, L2VPN, L3VPN, Application Visibility and Control, Performance Routing, AppNav and IPv6 through IOS XE
- Optional second route processor for 1+1 redundancy, with NSF/SSO and ISSU for high availability
- Stratum-3 clock circuitry and BITS ports for synchronous services such as SONET/SDH
- Memory upgradable from 8 GB to 16 GB for larger routing tables and more MPLS VRFs
- Hot-swappable 80 GB HDD for code, configuration, billing and log storage
- USB compact flash support for simpler code and configuration management
- Modular design allows later upgrade to other ASR 1000 route processors

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Route processor module
- Chassis support: ASR 1004, ASR 1006, ASR 1006-X, ASR 1009-X and ASR 1013
- Operating system: 64-bit Cisco IOS XE
- CPU: Dual-core processor, 2.66 GHz
- Memory: 8 GB DDR2 DRAM (default), upgradable to 16 GB
- Memory configuration: Four 2-GB DDR2 mini-DIMMs
- Built-in eUSB bootflash: 2 GB
- Storage: 80 GB hot-swappable, front-mounted, field-replaceable HDD
- USB ports: 2 (1-GB USB Compact Flash supported)
- Management port: 1 x 10/100/1000 RJ-45 Ethernet
- Console and auxiliary ports: RJ-45
- Clocking: RJ-48 BITS input clock and output source, Stratum-3 clock circuitry
- Route capacity (8 GB): Up to 1,000,000 IPv4 or 1,000,000 IPv6 routes
- Route capacity (8 GB, BGP route reflector): Up to 8,000,000 IPv4 or 6,000,000 IPv6 routes
- Redundancy: 1+1 in dual route processor configuration, OIR, NSF/SSO, ISSU
- Network management: Telnet, SSH, SNMP, console port
- Dimensions (H x W x D): 0.92 x 16.7 x 14.19 in. (0.02 x 0.428 x 0.36 m)
- Weight: 5.0 lb (2.3 kg)
- Operating temperature (nominal): 5 to 40 C (41 to 104 F)
- Storage temperature: -40 to 70 C (-38 to 150 F)
- Compliance: UL/CSA/IEC/EN 60950-1, AS/NZS 60950-1, FCC Class A, CISPR 22 Class A, NEBS GR-1089-CORE and GR-63-CORE

FAQs

Q: Which ASR 1000 chassis does the RP2 fit?
A: It fits the ASR 1004, ASR 1006, ASR 1006-X, ASR 1009-X and ASR 1013. It is not used in the ASR 1002 or ASR 1002-F, which have a built-in RP1.

Q: Does the route processor need a separate licence?
A: No separate licence applies to the route processor hardware. Software features and throughput depend on the Cisco IOS XE licensing applied to the ASR 1000 chassis.

Q: Can the memory be upgraded beyond 8 GB?
A: Yes. The RP2 can be upgraded from 8 GB to 16 GB of DRAM using the M-ASR1K-RP2-16GB memory upgrade. The extra memory raises route capacity and supports more MPLS VRFs.

Q: How is the module powered?
A: It is powered from the host ASR 1000 chassis backplane and has no separate power supply.

Q: Can I run two route processors for redundancy?
A: Yes. Installing two route processors in one chassis gives a 1+1 redundant configuration, with OIR, NSF/SSO and ISSU support.
