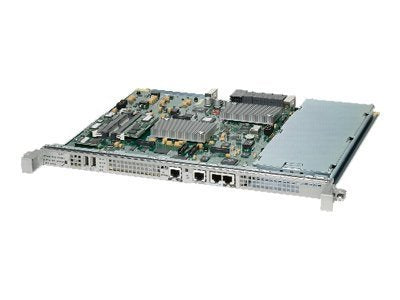

• Cisco ASR1000-RP1 route processor with silver rack and green components
1 1

Cisco

Cisco ASR1000-RP1 | ASR 1000 Route Processor RP1, 4GB DRAM, 40GB HDD

ASR1000-RP1

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ASR 1000 Series Route Processor 1 (RP1) is a modular route processor for the ASR 1004 and ASR 1006 chassis. It handles control-plane processing, system management and Cisco IOS XE functions, loads operating-system images to installed line cards and keeps redundant IOS XE, RP and ESP components synchronised. It suits WAN edge, service provider and enterprise aggregation deployments, and is mainly relevant as a spare or replacement for existing ASR 1004 and ASR 1006 installations.

The RP1 is built around a general-purpose 1.5-GHz CPU with 4 GB of DRAM (2 x 2-GB DDR2 mini-DIMMs) and a 40-GB on-board hard disk for code storage, configuration and logs. It also has 1 GB of eUSB bootflash and a USB port that accepts 1-GB compact flash. Management is through an RJ-45 console port, an RJ-45 auxiliary port and a 10/100/1000 Ethernet port, and two RJ-48 connectors provide BITS clock input. It supports up to 1,000,000 IPv4 routes or 500,000 IPv6 routes, with 1+1 redundancy, SSO, NSF and ISSU in a dual route processor configuration.

The RP1 draws power from the chassis backplane and runs 32-bit Cisco IOS XE. It works only in ASR 1004 and ASR 1006 chassis, because the ASR 1002 and 1002-F have an embedded RP1 and the ASR 1006-X, 1009-X and 1013 use RP2 or RP3. Compatible spares are the M-ASR1K-RP1-4GB memory upgrade and the M-ASR1K-HDD-40GB hard disk.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Manages control plane, system management and Cisco IOS XE functions for the ASR 1000 chassis
- Loads operating-system images to installed line cards and synchronises state for redundant IOS XE, RP and ESP components
- Supports 1+1 route processor redundancy with Stateful Switchover (SSO), NSF and ISSU
- Supports online insertion and removal (OIR)
- On-board 40-GB hard disk for code storage, configuration and logs
- Out-of-band console, auxiliary, USB and Gigabit Ethernet management ports
- BITS clock input connectors for network synchronisation
- Network management through Telnet, SSH, console port and SNMP

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Route Processor (RP1)
- CPU: General-purpose 1.5-GHz processor
- Memory: 4 GB DRAM (2 x 2-GB DDR2 mini-DIMMs)
- Memory options: Two 1-GB or two 2-GB DDR2 mini-DIMMs, upgradable from 2-GB to 4-GB DRAM
- Storage: 40-GB on-board HDD and external USB
- Built-in eUSB bootflash: 1 GB
- USB ports: 1, supports 1-GB USB compact flash
- Management ports: Console (RJ-45), Auxiliary (RJ-45), 10/100/1000 Ethernet (RJ-45)
- Clocking: Two RJ-48 connectors for BITS input clocks
- Operating system: 32-bit Cisco IOS XE
- Chassis support: Cisco ASR 1004 and ASR 1006
- Route scale: Up to 1,000,000 IPv4 routes or 500,000 IPv6 routes
- BGP RR scalability: Up to 5,000,000 IPv4 routes or 3,000,000 IPv6 routes
- Redundancy: 1+1 in dual route processor configuration
- Dimensions (H x W x D): 0.92 x 16.7 x 14.19 in. (0.02 x 0.428 x 0.36 m)
- Weight: 5.0 lb (2.3 kg)
- Operating temperature, nominal: 5 to 40 C
- Operating temperature, short-term: -5 to 55 C
- Storage temperature: -40 to 70 C
- Operating humidity, nominal: 5 to 85% RH
- Operating altitude: -60 to 4000 m

FAQs

Q: Which chassis does the ASR1000-RP1 work in?
A: It works in Cisco ASR 1004 and ASR 1006 chassis. The ASR 1002 and 1002-F have an RP1 embedded, and the ASR 1006-X, 1009-X and 1013 use RP2 or RP3 instead.

Q: Does the RP1 need a separate licence?
A: No separate licence is listed for the RP1 hardware itself. It runs Cisco IOS XE on the ASR 1000 chassis, and feature or software licences are ordered separately for the router.

Q: How is the RP1 powered?
A: It draws power from the ASR 1004 or ASR 1006 chassis backplane and has no separate power supply. A PWR LED shows when the power rails are within specification.

Q: Can the memory and hard disk be upgraded or replaced?
A: Yes. Memory upgrades use 2-GB DDR2 mini-DIMMs (M-ASR1K-RP1-4GB), and the spare hard disk is M-ASR1K-HDD-40GB. The hard disk is field-replaceable but not hot-swappable.

Q: Does the RP1 support route processor redundancy?
A: Yes. A dual route processor configuration provides 1+1 redundancy with Stateful Switchover, NSF and ISSU, and the RP1 supports online insertion and removal.
