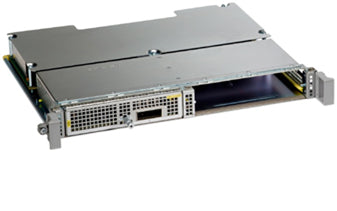

• Cisco ASR1000-MIP100 100G modular interface processor for ASR 1000 chassis
1 1

Cisco

Cisco ASR1000-MIP100 | ASR 1000 100G Modular Interface Processor, 2x EPA

ASR1000-MIP100

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR1000-MIP100 is a modular carrier card for the Cisco ASR 1000 Series Aggregation Services Routers. It connects to the router backplane at 100 Gbps full-duplex and hosts Ethernet Port Adapters (EPAs) that supply the actual network ports. It suits high-density 1/10/40/100 Gigabit Ethernet WAN aggregation and edge connectivity, with Layer 2, Layer 3, MPLS and QoS services.

The card has two EPA subslots, giving up to 200 Gbps of interface bandwidth when both are populated. It supports 1GE, 10GE, 40GE and 100GE adapters, including EPA-18X1GE, EPA-10X10GE, EPA-1X40GE, EPA-2X40GE, EPA-CPAK-2X40GE, EPA-1X100GE and EPA-QSFP-1X100GE. It has no built-in Ethernet ports and does not accept Shared Port Adapters. The MIP and EPAs support online insertion and removal, and it draws power from the chassis, which must have budget to cover it.

It installs in ASR1006-X, ASR1009-X and ASR1013 chassis alongside ASR1000-RP2 or RP3 route processors and ASR1000-ESP100, ESP200, ESP100-X or ESP200-X embedded services processors. It requires IOS XE 3.16.1 or 16.2.1 as a minimum, with later releases needed for some EPAs. Optional per-port MACsec licences are available for supported EPAs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full-duplex 100 Gbps modular Ethernet line card hosting up to two EPAs
- Adds 40GE and 100GE connectivity to the ASR 1000 Series through EPAs
- Layer 2, Layer 3, IP, IPv6 and MPLS packet processing
- Ingress and egress QoS with egress queuing
- High- and low-priority lanes to the ESP for low-latency forwarding
- Synchronous Ethernet support on selected EPAs
- Online insertion and removal of the MIP and EPAs
- MACsec available on selected EPAs with optional per-port licences

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: ASR1000-MIP100
- Backplane connection: 100 Gbps full-duplex
- Maximum interface bandwidth: up to 200 Gbps
- EPA subslots: 2 (subslot 0 and subslot 1)
- Built-in Ethernet ports: No
- Shared Port Adapter (SPA) support: No
- Ethernet Port Adapter (EPA) support: Yes
- Supported chassis: ASR1006-X, ASR1009-X, ASR1013
- Compatible route processors: ASR1000-RP2, ASR1000-RP3
- Compatible embedded services processors: ASR1000-ESP100, ASR1000-ESP200, ASR1000-ESP100-X, ASR1000-ESP200-X
- Minimum IOS XE release: XE 3.16.1 / XE 16.2.1
- Minimum IOS XE for EPA-10X10GE: XE 16.2.1
- Minimum IOS XE for EPA-18X1GE: XE 16.3.1
- Minimum IOS XE for EPA-1X40GE and EPA-2X40GE: XE 16.6.2
- Minimum IOS XE for EPA-QSFP-1X100GE: XE 16.9.1
- Front-panel LEDs: 2 (PWR, STAT)
- Hot swap (OIR): Supported for MIP and EPAs
- Power: Drawn from the chassis, no separate power supply

FAQs

Q: Does the ASR1000-MIP100 have its own network ports?
A: No. It is a carrier card with two EPA subslots. The network ports come from the Ethernet Port Adapters you install, ranging from 1GE to 100GE.

Q: Which ASR 1000 chassis does it work with?
A: It is supported in ASR1006-X, ASR1009-X and ASR1013 chassis. It works with ASR1000-RP2 or RP3 route processors and ASR1000-ESP100, ESP200, ESP100-X or ESP200-X embedded services processors.

Q: Which Ethernet Port Adapters can it host?
A: It supports EPA-18X1GE, EPA-10X10GE, EPA-1X40GE, EPA-2X40GE, EPA-CPAK-2X40GE, EPA-1X100GE and EPA-QSFP-1X100GE. It does not support Shared Port Adapters.

Q: Does it need a licence?
A: No licence is stated for the carrier card itself. Optional per-port MACsec licences apply to supported EPAs, and EPA-1X40GE needs an optional licence to enable its second 40GE port.

Q: What IOS XE version does it require?
A: The minimum is IOS XE 3.16.1 or 16.2.1. Some EPAs need later releases, for example XE 16.6.2 for EPA-1X40GE and EPA-2X40GE, and XE 16.9.1 for EPA-QSFP-1X100GE.
