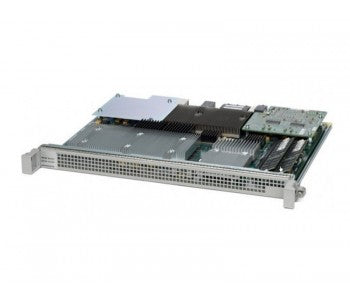

Cisco ASR1000-ESP40 | ASR 1000 40 Gbps Embedded Services Processor, 8-GB DRAM
SKU:ASR1000-ESP40
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The ASR 1000 Embedded Services Processor, 40 Gbps is the data-plane forwarding engine for ASR 1000 Series Aggregation Services Routers. It is built on the Cisco Flow Processor and is aimed at service provider broadband aggregation, managed CPE, multimedia provider edge, enterprise WAN aggregation, internet gateway, Intelligent WAN and data centre interconnect designs.
This 40 Gbps ESP carries 8-GB DRAM, 1-GB Cisco FP resource memory, 40-Mb TCAM and 256-MB packet buffer memory, and draws 267 W maximum (227 W typical) from the host chassis. It differs from the 20, 100 and 200 Gbps ESPs in throughput class, memory and power draw. It handles routing, QoS, NetFlow, IPsec encryption, NAT and zone-based firewall services concurrently at line speed. The ESP is hardware only. Feature sets on the router are enabled through Cisco IOS XE software licences.
It installs in ASR 1004, ASR 1006, ASR 1006-X, ASR 1009-X and ASR 1013 chassis and works with ASR1000-RP2 and ASR1000-RP3 route processors, ASR1000-SIP10 and ASR1000-SIP40 SIPs, and the ASR1000-6TGE and ASR1000-2T+20X1GE Ethernet line cards. It requires Cisco IOS XE 3.1.0S or later, or 3.2.0S or later on the ASR 1004. Two ESPs in an ASR 1006, 1006-X, 1009-X or 1013 provide 1+1 redundancy.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Built on the Cisco Flow Processor, a programmable application-aware network processor
- Handles all data-plane tasks including MAC classification, L2/L3 forwarding, QoS classification and NetFlow accounting
- Runs IPsec encryption, NAT, zone-based firewall, AppNav, AVC, PfR and LISP concurrently at line rate
- Layer 2 connectivity options including EoMPLS, VPLS, OTV and VXLAN
- Hardware-assisted traffic classification and shaping
- Hardware 1+1 ESP redundancy with OIR, NSF/SSO and ISSU on supported chassis
- NEBS-compliant module
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Throughput class: 40 Gbps ESP
- Architecture: Cisco Flow Processor (FP) based
- Cisco FP resource memory: 1-GB
- DRAM: 8-GB
- TCAM: 40-Mb
- Packet buffer memory: 256-MB
- Power consumption: 267 W maximum (227 W typical)
- Minimum software: Cisco IOS XE 3.1.0S (3.2.0S for ASR 1004)
- Chassis: ASR 1004, ASR 1006, ASR 1006-X, ASR 1009-X, ASR 1013
- Route processors: ASR1000-RP2, ASR1000-RP3
- SIPs: ASR1000-SIP10, ASR1000-SIP40
- Redundancy: 1+1 in dual ESP configuration, OIR, NSF and SSO, ISSU
- Network management: Telnet (CLI), console port, SNMP (RFC 2665)
- MIBs: RFC 2737 compliant
- Status LEDs: PWR, STAT, ACTV, STBY
- Dimensions (H x W x D): 0.92 x 16.7 x 14.19 in (0.023 x 0.428 x 0.369 m)
- Operating temperature, nominal: 5 to 40 C (41 to 104 F)
- Operating temperature, short-term: -5 to 55 C (23 to 131 F)
- Storage temperature: -40 to 70 C (-38 to 150 F)
- Operating humidity, nominal: 5 to 85% RH
- Operating altitude: -60 to 4000 m
- Safety: UL60950, CAN/CSA-C22.2 No. 60950, AS/NZS 60950, IEC/EN 60950
- EMC emissions: AS/NZS 3548 Class A, EN55022 Class A, CISPR 22, FCC 47 CFR Part 15 Class A
- NEBS: GR-1089-CORE, GR-63-CORE, ETSI 300 386, ETSI 300 132-2
FAQs
Q: Does the ASR1000-ESP40 need its own licence?
A: No. The ESP is hardware and has no licence of its own. Feature sets and throughput are enabled through Cisco IOS XE software licences on the host router.
Q: Which ASR 1000 chassis does it fit?
A: It fits the ASR 1004, ASR 1006, ASR 1006-X, ASR 1009-X and ASR 1013 chassis. It requires Cisco IOS XE 3.1.0S or later, or 3.2.0S or later on the ASR 1004.
Q: Can I run two ESPs for redundancy?
A: Yes. Two ESPs provide 1+1 redundancy in an ASR 1006, 1006-X, 1009-X or 1013 chassis. ISSU also needs dual route processors.
Q: What power does it draw?
A: It draws 267 W maximum and 227 W typical from the host chassis. It does not need the 1600 W power supply that the 100 Gbps ESP requires.
Q: How does it differ from the other ASR 1000 ESPs?
A: The ASR1000-ESP40 is the 40 Gbps ESP with 8-GB DRAM and a 267 W maximum draw. The 20, 100 and 200 Gbps ESPs differ in throughput class, memory and power requirements.
