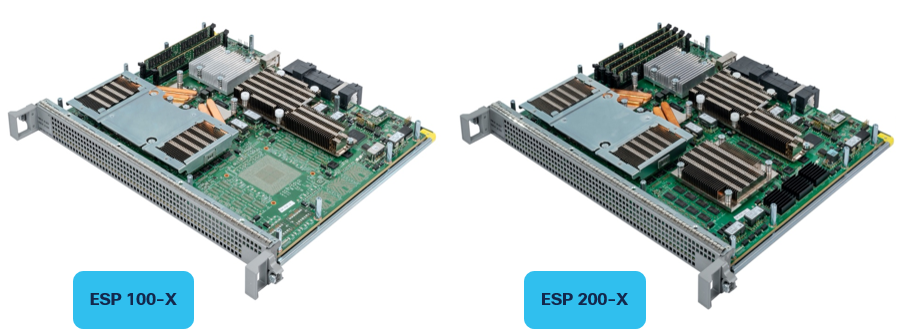

• Cisco ASR1000-ESP200-X ESP 200 with dual CPU sockets, black silver components
1 1

Cisco

Cisco ASR1000-ESP200-X | ASR 1000 200Gbps Embedded Services Processor, 64GB

ASR1000-ESP200-X

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR1000-ESP200-X is the 200 Gbps Embedded Services Processor for the Cisco ASR 1000 Series, built on Cisco Flow Processor technology. It handles the forwarding plane and hardware-accelerated services including QoS, cryptography, NAT, firewall and deep packet inspection. It suits high-throughput WAN edge and aggregation roles, including SD-WAN headend aggregation, enterprise data centre edge and service provider POP routing.

This -X processor carries 64 GB of memory and is rated for up to 200 Gbps of non-crypto throughput and up to 78 Gbps of IPsec encryption performance, with support for up to 8,000 IPsec tunnels. As an -X model it uses pay-as-you-grow throughput licensing, so higher throughput is enabled through a software licence change rather than a hardware swap.

It is designed for the ASR 1006-X chassis, where two ESPs can be installed for redundancy in routing mode. It pairs with ASR1000-RP2 or RP3 route processors and ASR1000-MIP100 modular interface processors, with EPA-10X10GE, EPA-2X40GE and EPA-QSFP-1X100GE adapters. SD-WAN mode requires IOS XE 17.5.1 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco Flow Processor-based hardware acceleration of QoS, cryptography and ACLs
- Embedded security services including Zone-Based Firewall and IPsec with no additional service modules required
- Optimised for QoS and IP Multicast applications
- Supports redundant ESPs in chassis that support ESP redundancy, such as the ASR 1006-X
- Supports Cisco SD-WAN headend aggregation with the ASR 1006-X from IOS XE 17.5.1
- Pay-as-you-grow throughput licensing on -X models

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product: ASR1000-ESP200-X Embedded Services Processor
- Processing capacity: 200 Gbps
- Memory: 64 GB
- Technology: Cisco Flow Processor
- Forwarding throughput (non-crypto): up to 200 Gbps
- IPsec encryption performance: up to 78 Gbps
- IPsec tunnels: up to 8,000
- Firewall and NAT performance (ASR 1000 range): 2.5 to 200 Gbps
- Supported chassis: ASR 1006-X
- SD-WAN support: IOS XE 17.5.1 and later on ASR 1006-X
- SD-WAN mode configuration: 1 x ASR1000-RP3, 1 x ASR1000-ESP200-X, no intra-chassis redundancy
- SD-WAN mode interface modules: EPA-10X10GE, EPA-2X40GE, EPA-QSFP-1X100GE via 1 or 2 x ASR1000-MIP100

FAQs

Q: Does this processor need a licence to reach full throughput?
A: ASR 1000 -X models use pay-as-you-grow throughput licensing, so higher throughput is enabled through a software licence change. In SD-WAN mode, Cisco DNA licensing for SD-WAN and Routing applies.

Q: Which chassis is the ASR1000-ESP200-X designed for?
A: It is designed for the ASR 1006-X chassis. In routing mode the chassis supports two ESPs for redundancy, while SD-WAN mode uses a single ESP.

Q: Can it be used for SD-WAN?
A: Yes. The ASR 1006-X with the ESP200-X supports Cisco SD-WAN headend aggregation from IOS XE 17.5.1 and later.

Q: Which route processors and interface modules does it work with?
A: It pairs with ASR1000-RP2 or RP3 route processors and ASR1000-MIP100 modular interface processors. Supported adapters include EPA-10X10GE, EPA-2X40GE and EPA-QSFP-1X100GE.

Q: How does it differ from other ASR 1000 Embedded Services Processors?
A: This SKU is the 200 Gbps -X processor with 64 GB of memory for the ASR 1006-X, so it offers higher throughput and memory than lower-capacity ESP options.
