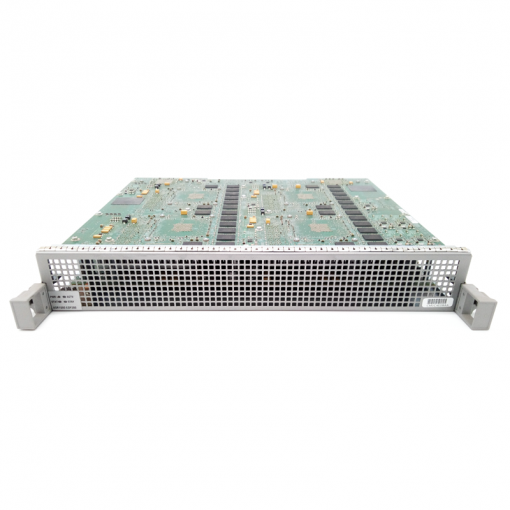

• Cisco ASR1000-ESP200 embedded services processor in silver rack
1 1

Cisco

Cisco ASR1000-ESP200 | ASR 1000 Embedded Services Processor, 200G, 32GB DRAM

ASR1000-ESP200

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR1000-ESP200 is the 200-Gbps Embedded Services Processor for the Cisco ASR 1000 Series Aggregation Services Routers. Built on the Cisco Flow Processor, it handles all data-plane forwarding and services at line rate, including IPsec, firewall, NAT, QoS and NetFlow. It suits service provider broadband aggregation, managed CPE, multimedia provider edge, enterprise WAN aggregation headends, Internet gateways with firewall, Intelligent WAN and data centre interconnect.

This 200-Gbps (non-X) module delivers up to 200 Gbps of system throughput and up to 130 Mpps, with up to 78 Gbps of IPsec encryption throughput and up to 200 Gbps of zone-based firewall throughput. It carries 8 GB of Cisco FP resource memory, 32 GB of DRAM, 2x80-Mb TCAM and a 2-GB packet buffer, and supports up to 464,000 hardware queues. Power draw is 625 W maximum and 450 W typical from the chassis backplane. The ESP hardware itself needs no separate licence, as router feature sets and technology packages are enabled through Cisco IOS XE and Cisco licensing.

The module is supported in the ASR 1009-X and ASR 1013 chassis and requires Cisco IOS XE 3.10.0S or later. It works with the ASR1000-RP2 and ASR1000-RP3 route processors and the ASR1000-SIP40, ASR1000-6TGE, ASR1000-2T+20X1GE and ASR1000-MIP100 line cards and SIPs. It supports 1+1 ESP redundancy, online insertion and removal, NSF/SSO and ISSU.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Built on the Cisco Flow Processor, a programmable, application-aware network processor with up to 256 packet-processor cores
- Parallel processing removes the need for additional service blades
- Deep-packet inspection with visibility into the full Layer 2 frame
- Zone-based firewall, DDoS detection and control-plane protection
- Cisco Session Border Control (SBC) support
- Multicast VQE and video CAC
- Hardware-accelerated traffic classification and shaping
- Concurrent line-rate services including crypto, firewall, NAT, QoS, NetFlow, AVC, PfR, LISP, EoMPLS, VPLS, OTV and VXLAN

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Data-plane throughput: Up to 200 Gbps system throughput, up to 130 Mpps
- Encryption throughput: Up to 78 Gbps (hardware-assisted IPsec)
- Firewall throughput: Up to 200 Gbps, 6 Mpps firewall sessions
- Queues: Up to 464,000 hardware-accelerated queues
- Memory: 8-GB Cisco FP resource memory, 32-GB DRAM, 2x80-Mb TCAM, 2-GB packet buffer memory
- Chassis compatibility: ASR 1009-X and ASR 1013 only
- Software compatibility: Cisco IOS XE Software Release 3.10.0S or later
- Power consumption: 625 W maximum (450 W typical)
- Dimensions (H x W x D): 2.44 x 16.7 x 14.19 in. (0.062 x 0.428 x 0.369 m)
- Storage temperature: -40 to 70 C (-38 to 150 F)
- Operating temperature, nominal: 5 to 40 C (41 to 104 F)
- Operating temperature, short-term: -5 to 55 C (23 to 131 F)
- Storage relative humidity: 5 to 95% RH
- Operating humidity, nominal: 5 to 85% RH
- Operating altitude: -60 to 4000 m (up to 2000 m conforms to IEC/EN/UL/CSA 60950)
- Reliability: 1+1 ESP redundancy, OIR, NSF and SSO, ISSU with dual route processors and dual ESPs
- Network management: Telnet (CLI), console port (CLI), SNMP (RFC 2665) via the Route Processor
- MIBs: RFC 2737 compliant
- Status LEDs: PWR, STAT, ACTV, STBY
- Compliance: UL/CSA/IEC/EN/AS/NZS 60950 safety; FCC Class A, EN55022, CISPR 22 EMC; NEBS GR-1089-CORE and GR-63-CORE; ETSI 300 386

FAQs

Q: Does the ASR1000-ESP200 need a separate licence?
A: The ESP hardware itself needs no separate licence. Router feature sets and throughput or technology packages on the ASR 1000 are enabled through Cisco IOS XE and Cisco licensing.

Q: Which ASR 1000 chassis does this ESP fit?
A: It is supported in the ASR 1009-X and ASR 1013 chassis. It requires Cisco IOS XE Software Release 3.10.0S or later.

Q: How much power does it draw?
A: It draws 625 W maximum and 450 W typical from the chassis backplane. Compatible chassis power supplies include the ASR1013/06-PWR-AC, ASR1013/06-PWR-DC, ASR1000X-AC-1100W and ASR1000X-DC-950W.

Q: Which route processors and line cards does it work with?
A: It works with the ASR1000-RP2 and ASR1000-RP3 route processors. Supported line cards and SIPs include the ASR1000-SIP40, ASR1000-6TGE, ASR1000-2T+20X1GE and ASR1000-MIP100.

Q: How does this differ from the ESP200-X?
A: This is the 200-Gbps non-X ESP with 8-GB FP resource memory and 32-GB DRAM, drawing 625 W maximum. The ESP200-X is a different product.

Q: Does it support redundancy?
A: Yes. It supports 1+1 redundancy in a dual ESP configuration, along with online insertion and removal, NSF and SSO, and ISSU when used with dual route processors.
