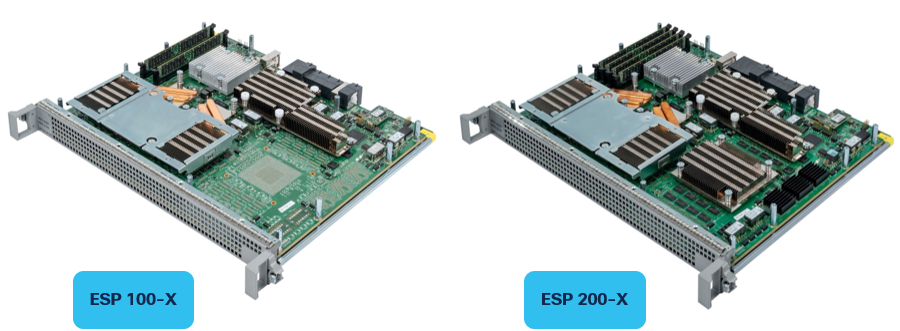

• Cisco ASR1000-ESP100-X motherboard with dual CPU sockets, black and silver components
1 1

Cisco

Cisco ASR1000-ESP100-X | ASR 1000 100G ESP-X Module, 16GB DRAM, QFP3

ASR1000-ESP100-X

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR1000-ESP100-X is a 100 Gbps Embedded Services Processor for the Cisco ASR 1000 Series Aggregation Services Routers. It handles all data-plane traffic processing in the router, running routing, encryption, NAT, firewall, QoS and NetFlow concurrently at line rate. It suits WAN edge routing in large enterprise data centres and offices, and service provider points of presence.

The module is built on a third-generation QFP ASIC with a built-in crypto module. It provides 100 Gbps of forwarding bandwidth, 16 GB DRAM, 32 GB Cisco FP memory, 80 Mb TCAM and 1.4 GB of packet buffer memory. Power draw is 415 W maximum, with a typical figure of 285 W. The hardware itself carries no standalone licence and supports smart licensing with soft enforcement, while feature and throughput licensing is handled at the router level.

It installs in ASR 1006-X, ASR 1009-X and ASR 1013 chassis and requires Cisco IOS XE 17.2.1r or later. A dual-ESP configuration provides 1+1 hardware redundancy with online insertion and removal, NSF/SSO and ISSU. It works with the ASR1000-RP3 Route Processor and the ASR1000-SIP40 and ASR1000-MIP100 interface processors.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Handles all data-plane traffic processing for the ASR 1000 Series
- Runs cryptography, firewall, NAT, QoS and NetFlow concurrently at line speed
- Third-generation QFP ASIC with built-in crypto module for higher bandwidth and crypto performance
- Supports smart licensing with soft enforcement
- Supports Layer 2 services such as EoMPLS, VPLS, OTV and VXLAN
- Dual-ESP 1+1 hardware redundancy with OIR, NSF/SSO and ISSU

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Forwarding bandwidth: 100 Gbps
- Processor: 3rd-generation QFP ASIC with built-in crypto module
- DRAM: 16 GB
- Cisco FP memory: 32 GB
- TCAM: 80 Mb
- Packet buffer memory: 1.4 GB
- Power: 415 W maximum, 285 W typical
- Dimensions (H x W x D): 0.92 x 16.7 x 14.19 in. (0.023 x 0.428 x 0.369 m)
- Compatible chassis: ASR 1006-X, ASR 1009-X, ASR 1013
- Minimum software: Cisco IOS XE 17.2.1r or later
- Redundancy: 1+1 in a dual-ESP configuration
- Management: Via ASR 1000 Route Processor, Telnet (CLI), console port, SNMP (RFC 2665)
- MIBs: RFC 2737 compliant
- Safety: UL60950, CAN/CSA-C22.2 No. 60950, AS/NZS 60950, IEC/EN 60950
- EMC: Class A (AS/NZS 3548, EN55022, CISPR22, FCC Part 15, VCCI)
- NEBS: GR-1089-CORE, GR-63-CORE

FAQs

Q: Does the ASR1000-ESP100-X need its own licence?
A: No. The hardware module has no standalone licence and supports smart licensing with soft enforcement. Feature and throughput licensing is handled at the router level through ASR 1000 software licences and Cisco Smart Licensing.

Q: Which ASR 1000 chassis does it fit?
A: It is supported in the ASR 1006-X, ASR 1009-X and ASR 1013 chassis. It requires Cisco IOS XE 17.2.1r or later and works with the ASR1000-RP3 Route Processor.

Q: How much power does it draw?
A: The module draws 415 W maximum and 285 W typical. Compatible power supplies include the ASR1013/06-PWR-AC or DC, and the ASR1000X-AC-1100W or DC-950W.

Q: Can two be installed for redundancy?
A: Yes. A dual-ESP configuration in an ASR 1006-X, 1009-X or 1013 chassis provides 1+1 redundancy. It also supports online insertion and removal, NSF/SSO and ISSU with dual route processors.

Q: Which interface processors and port adapters does it work with?
A: It works with the ASR1000-SIP40 and ASR1000-MIP100 interface processors. Supported port adapters include the EPA-1X100GE, EPA-QSFP-1X100GE, EPA-2X40GE, EPA-CPAK-2X40GE, EPA-10X1GE and EPA-18X1GE.
