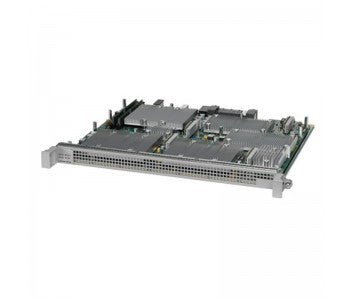

• Cisco ASR1000-ESP100 silver server rack with 100 Gbps throughput
1 1

Cisco

Cisco ASR1000-ESP100 | ASR 1000 100G Embedded Services Processor, 350W

ASR1000-ESP100

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 1000 100 Gbps Embedded Services Processor is the data-plane forwarding engine for the Cisco ASR 1000 Series. It suits service provider broadband aggregation, managed CPE, multimedia provider edge, enterprise WAN aggregation headends, enterprise Internet gateways, IWAN and data centre interconnect, where routing, QoS, firewall, NAT, NetFlow and IPsec need to run in hardware.

This is the 100 Gbps ESP (non-X) variant with a 350 W maximum draw. It is built around the Cisco QuantumFlow Processor with 128 multi-threaded packet processing engines and delivers up to 63 Mpps depending on the features configured. Throughput is 40 Mpps with IPv4 forwarding, multicast, ACL, QoS, RPF, load balancing and sampled NetFlow, 100 Gbps with common features plus firewall or NAT, and 25 Gbps with common features plus IPsec encryption. Onboard resources include 4 GB of Cisco FP memory, 16 GB DRAM, 80 Mb TCAM and a 1 GB packet buffer.

It installs in the ASR 1006, ASR 1006-X, ASR 1009-X and ASR 1013 chassis and requires Cisco IOS XE 3.7.1S or later. A dual-ESP configuration provides 1+1 redundancy with OIR, NSF and SSO support.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hardware acceleration for built-in intelligent services and baseline packet routing
- Massively parallel processing with 128 multi-threaded packet processing engines
- Advanced, flexible, real-time queuing and scheduling with sophisticated QoS
- Dedicated co-processor for security encryption
- Concurrent IPsec, firewall, NAT, QoS, NetFlow and AVC services at line rate
- 1+1 ESP redundancy with OIR, NSF/SSO and ISSU support
- Hardware-assisted traffic classification and shaping

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Data-plane throughput: 100 Gbps
- Forwarding rate: up to 63 Mpps depending on features configured
- Performance with common features: 40 Mpps with IPv4 forwarding, multicast, ACL, QoS, RPF, load balancing and sampled NetFlow
- Bandwidth with common features plus firewall or NAT: 100 Gbps
- Bandwidth with common features plus IPsec encryption: 25 Gbps
- Packet processing: 128 multi-threaded engines (Cisco QuantumFlow Processor)
- Cisco FP resource memory: 4 GB
- DRAM: 16 GB
- TCAM: 80 Mb
- Packet buffer memory: 1 GB
- Power consumption: 350 W maximum (250 W typical)
- Dimensions (H x W x D): 0.92 x 16.7 x 14.19 in. (0.023 x 0.428 x 0.369 m)
- Operating temperature, nominal: 5 to 40 C (41 to 104 F)
- Operating temperature, short-term: -5 to 55 C (23 to 131 F)
- Storage temperature: -40 to 70 C (-38 to 150 F)
- Operating humidity, nominal: 5 to 85% RH
- Operating altitude: -60 to 4000 m
- Minimum software: Cisco IOS XE 3.7.1S
- Redundancy: 1+1 in dual-ESP configuration with OIR, NSF and SSO
- Compliance: NEBS GR-1089-CORE and GR-63-CORE, ETSI 300 386, EMC Class A

FAQs

Q: Which ASR 1000 chassis does the ESP100 fit?
A: It fits the ASR 1006, ASR 1006-X, ASR 1009-X and ASR 1013 chassis. It also works with RP2 and RP3 route processors, SIP10 and SIP40 carrier cards and a range of Ethernet port adapters.

Q: What software does it need?
A: It requires Cisco IOS XE Software Release 3.7.1S or later. Router feature sets and throughput are governed by the IOS XE licensing and packages on the chassis.

Q: What power does it require?
A: It draws up to 350 W (250 W typical). On the ASR 1006 and ASR 1013 chassis it needs the 1600W AC or DC power supply, ASR1013/06-PWR-AC or ASR1013/06-PWR-DC.

Q: How does it differ from the ESP100-X?
A: This is the 100 Gbps ESP (non-X) with a 350 W maximum draw and a 3.7.1S minimum software release. The ESP100-X is a separate module that needs IOS XE 17.2.1r or later.

Q: Can two ESPs be run for redundancy?
A: Yes. A dual-ESP configuration in the ASR 1006, 1006-X, 1009-X or 1013 chassis provides 1+1 redundancy with OIR, NSF and SSO. ISSU is supported with dual route processors and dual ESPs.
