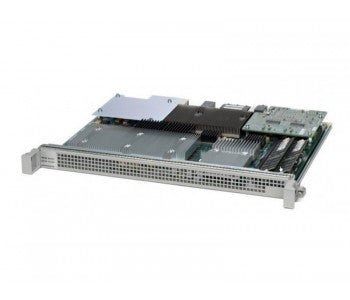

• Cisco ASR1000-ESP10 silver server rack with black components and green accents
1 1

Cisco

Cisco ASR1000-ESP10 | ASR 1000 Embedded Services Processor, 10G, Crypto

ASR1000-ESP10

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR1000-ESP10 is the 10 Gbps Embedded Services Processor for the ASR 1000 Series aggregation routers. Built on the Cisco QuantumFlow Processor, it handles all data-plane traffic processing and provides hardware-assisted encryption, so it suits enterprise WAN edge, branch aggregation and service provider edge deployments that need integrated services.

The card delivers 10 Gbps of system forwarding bandwidth and 8 Mpps for combined IPv4 forwarding, IP Multicast, ACL, QoS, Reverse Path Forwarding, load balancing and Sampled NetFlow. Security traffic performance is 3 Gbps and encryption capability is rated at 4 Gbps. It carries 512 MB of QuantumFlow Processor memory, 2 GB of FECP DRAM, 10 Mb of TCAM and 128 MB of packet buffer memory. This is the crypto-capable variant. The non-crypto model is the ASR1000-ESP10-N, which has the same performance without IPsec or encryption support.

The ESP10 is supported in the ASR 1002 (single ESP only), ASR 1004, ASR 1006 and ASR 1013 chassis. Redundant ESP configurations are available on the ASR 1006 and ASR 1013. It works alongside the ASR 1000 Series Route Processors and SPA interface processors.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Handles all data-plane traffic processing for ASR 1000 Series routers
- Concurrent activation of enhanced services such as NAT, firewall, QoS, NetFlow and IPsec
- Hardware-assisted encryption rated at 4 Gbps
- Redundant ESP configurations supported on the ASR 1006 and ASR 1013 chassis
- Runs under Cisco IOS XE on the ASR 1000 Series chassis
- Crypto-capable variant supports IPsec and crypto software images

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Embedded Services Processor: Cisco ASR1000-ESP10
- Forwarding bandwidth: 10 Gbps
- Forwarding performance: 8 Mpps combined IPv4 forwarding, IP Multicast, ACL, QoS, RPF, load balancing and Sampled NetFlow
- Security traffic performance: 3 Gbps
- Encryption capability: 4 Gbps
- QuantumFlow Processor memory: 512 MB
- FECP DRAM: 2 GB
- TCAM: 10 Mb
- Packet buffer memory: 128 MB
- Dimensions (H x W x D): 0.92 x 16.7 x 14.19 in.
- Supported forwarding engines: ASR1002-ESP-F, ASR1000-ESP10
- Variant: crypto-capable, non-crypto model is ASR1000-ESP10-N
- Supported chassis: ASR 1002, ASR 1004, ASR 1006, ASR 1013

FAQs

Q: Does the ASR1000-ESP10 need a separate licence?
A: No separate licence is specified for the module itself. It runs under Cisco IOS XE on the ASR 1000 Series chassis, and the crypto-capable ESP10 supports crypto software images and IPsec.

Q: What is the difference between the ASR1000-ESP10 and the ASR1000-ESP10-N?
A: Both offer the same 10 Gbps performance. The ASR1000-ESP10 is crypto-capable with hardware-assisted encryption, while the ASR1000-ESP10-N has no IPsec or encryption support.

Q: Which ASR 1000 chassis does it work with?
A: It is supported in the ASR 1002 (single ESP only), ASR 1004, ASR 1006 and ASR 1013. Redundant ESP configurations are available on the ASR 1006 and ASR 1013.

Q: Can I upgrade the ESP in an ASR 1002?
A: The ASR 1002 supports a single ASR1000-ESP5 or ASR1000-ESP10. ESP upgrades are supported on redundant-ESP systems, namely the ASR 1006 and ASR 1013.

Q: How is the module powered?
A: It is powered from the ASR 1000 Series chassis backplane, so no separate power connection is needed.
