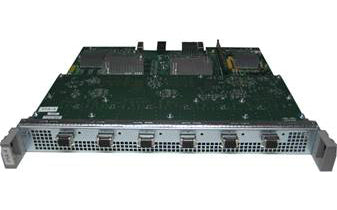

• Cisco ASR1000-6TGE 6x10GbE SFP+ line card with green circuit board
1 1

Cisco

Cisco ASR1000-6TGE | ASR 1000 6x10GE Fixed Ethernet Router Line Card

ASR1000-6TGE

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 1000 6x10GE Fixed Ethernet Line Card is a fixed-port interface card for ASR 1000 Series Aggregation Services Routers. It suits service provider and enterprise teams that need high-density 10 Gigabit Ethernet aggregation or WAN edge connectivity, with greater port density and a lower cost per port than SPA-based designs.

The card provides six built-in 10 Gigabit Ethernet ports and delivers 60 Gbps of input and 40 Gbps of output traffic forwarding. It connects to the chassis over two ESI backplane links at 23 Gbps bidirectional each, 46 Gbps in total. It supports up to 4096 VLANs per port and 49152 per line card, with Layer 2, Layer 3, IP, IPv6 and MPLS packet processing, ingress and egress QoS, and Synchronous Ethernet. Maximum power draw is 145 W and it requires Cisco IOS XE 3.12 or later. No separate licence is needed for the card itself. This is the 6x10GE fixed-port model, distinct from the ASR1000-2T+20X1GE with 2x10GE and 20x1GE ports.

It installs in the SIP slot of ASR1004, ASR1006, ASR1006-X, ASR1009-X and ASR1013 chassis with an RP2 or RP3 route processor and an ESP40, ESP100, ESP200, ESP100-X or ESP200-X. It does not accept Shared Port Adapters or Ethernet Port Adapters.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fixed-port design gives higher Ethernet density and lower price per port than SPA-based designs
- Layer 2, Layer 3, IP, IPv6 and MPLS packet processing
- Ingress and egress QoS with egress queuing
- High- and low-priority lanes to the ESP for low-latency forwarding
- Ingress over-subscription handling
- Synchronous Ethernet (SyncE) support
- Pluggable optics for single-mode or multimode fibre

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 6 x 10 Gigabit Ethernet, fixed-port design
- Forwarding capacity: 60 Gbps input and 40 Gbps output
- Backplane connectivity: 2 ESI links, 23 Gbps bidirectional each, 46 Gbps total
- SPA support: No
- EPA support: No
- VLANs per port: 4096
- VLANs per line card: 49152
- EVCs per port: 4096
- HSRP/DA MAC addresses per line card: 8192
- MAC ACLs per line card: 20480
- CFM/Y.1731 sessions: 480
- Interframe gap: 8 bytes for 10 GE
- Synchronous Ethernet: G.8261, G.8262, G.8264, G.781
- Power requirement: 145 W maximum
- LEDs: 1 power, 1 line card status, 6 port/link status
- Minimum software: Cisco IOS XE 3.12
- Supported chassis: ASR1004, ASR1006, ASR1006-X, ASR1009-X, ASR1013
- Supported route processors: ASR1000-RP2, ASR1000-RP3
- Supported ESPs: ASR1000-ESP40, ESP100, ESP200, ESP100-X, ESP200-X

FAQs

Q: Does this line card need a separate licence?
A: No separate licence is needed for the card itself.

Q: How much power does it draw?
A: It draws chassis power, up to 145 W maximum. Check the chassis power budget before installation.

Q: Which chassis and route processors does it work with?
A: It installs in the SIP slot of ASR1004, ASR1006, ASR1006-X, ASR1009-X and ASR1013 chassis with an ASR1000-RP2 or RP3. It needs an ESP40, ESP100, ESP200, ESP100-X or ESP200-X and Cisco IOS XE 3.12 or later.

Q: Can I fit Shared Port Adapters to this card?
A: No. It is a fixed-port card and does not accept SPAs or EPAs. The six 10 Gigabit Ethernet ports are built in.

Q: How does it differ from the ASR1000-2T+20X1GE?
A: The ASR1000-6TGE provides six 10 Gigabit Ethernet ports, while the ASR1000-2T+20X1GE provides two 10 Gigabit Ethernet ports and twenty 1 Gigabit Ethernet ports.
