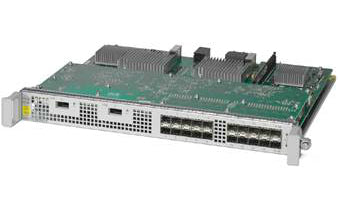

• Cisco ASR1000-2T+20X1GE silver switch module with ports and yellow label
1 1

Cisco

Cisco ASR1000-2T+20X1GE | ASR 1000 Line Card, 2x 10G SFP+ and 20x 1G SFP

ASR1000-2T+20X1GE

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ASR 1000 Fixed Ethernet Line Card with 2x 10GE SFP+ and 20x 1GE SFP ports is built for the modular ASR 1000 Series Aggregation Services Routers. It adds high-density Gigabit and 10 Gigabit Ethernet connectivity to a chassis, making it suited to enterprise data centre or large-office WAN edge deployments and service provider points of presence where many WAN connections and services are aggregated.

The card provides two 10 Gigabit Ethernet SFP+ ports and twenty 1 Gigabit Ethernet SFP ports. It is a fixed Ethernet line card with no SPA slots, positioned as an alternative to the ASR1000-SIP10, SIP40 and MIP100 carrier cards. The 10G ports need SFP+ optics and the 1G ports need SFP optics.

It installs in the SIP and line-card slots of the modular ASR 1004, ASR 1006 and ASR 1013 chassis, which offer 2, 3 and 6 slots respectively. It is not used in the fixed-form-factor ASR 1001-X, 1002-X, 1001-HX or 1002-HX routers, where the line card slots are integrated. It works with the ASR 1000 Embedded Services Processors and runs under Cisco IOS XE Software.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds high-density 1GE and 10GE connectivity to modular ASR 1000 chassis
- Works with ASR 1000 Embedded Services Processors that accelerate encryption, NAT, Zone-Based Firewall, DPI, CUBE and DCI features
- Runs under Cisco IOS XE Software, a modular operating system with modular packaging
- High availability design with hardware and software redundancy across the ASR 1000 platform
- Fixed Ethernet design with no SPA slots for a simple, dense port layout

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Fixed Ethernet line card for ASR 1000 Series
- 10 Gigabit Ethernet ports: 2x SFP+
- Gigabit Ethernet ports: 20x SFP
- Card type: Fixed Ethernet line card, no SPA slots
- Alternative to: ASR1000-SIP10, SIP40 and MIP100 carrier cards
- Supported chassis: ASR 1004 (2 slots), ASR 1006 (3 slots), ASR 1013 (6 slots)
- Not supported in: ASR 1001-X, 1002-X, 1001-HX, 1002-HX
- Software: Cisco IOS XE

FAQs

Q: Which ASR 1000 chassis does this line card fit?
A: It installs in the SIP and line-card slots of the modular ASR 1004, ASR 1006 and ASR 1013 chassis. It is not used in the fixed-form-factor ASR 1001-X, 1002-X, 1001-HX or 1002-HX routers.

Q: Does this card need its own licence?
A: The card itself does not need a separate licence. Features are enabled through the ASR 1000 chassis software and licence packages running Cisco IOS XE.

Q: What optics do the ports use?
A: The two 10 Gigabit Ethernet ports use SFP+ optics and the twenty Gigabit Ethernet ports use SFP optics.

Q: How does this differ from the ASR1000-SIP10 or SIP40?
A: The SIP10 and SIP40 are carrier cards that host shared port adapters. This is a fixed Ethernet line card with built-in 2x 10GE SFP+ and 20x 1GE SFP ports and no SPA slots.
