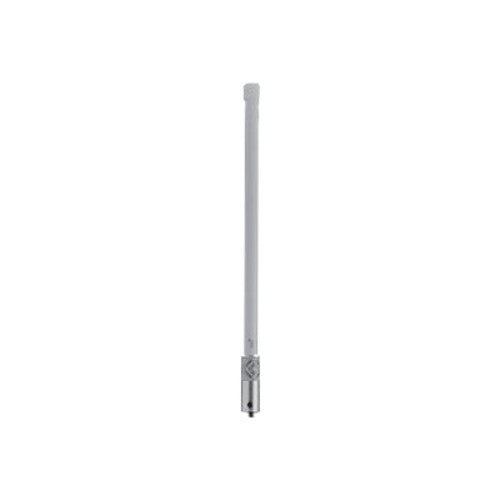

• Cisco ANT-WPAN-OD-OUT-N white dipole antenna with black accents
1 1

Cisco

Cisco ANT-WPAN-OD-OUT-N | WPAN Dipole Antenna, 863-928 MHz, 1.5 dBi, Type N Male

ANT-WPAN-OD-OUT-N

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco WPAN dipole antenna is a single-port, omnidirectional antenna covering the worldwide 863-928 MHz ISM band. It is designed for outdoor or indoor WPAN and resilient mesh deployments such as connected grid and utility networks and IoT mesh range extenders, where the antenna mounts directly to the router chassis.

It delivers a maximum gain of 1.5 dBi with linear vertical polarisation, an 84 degree vertical 3 dB beamwidth and a full 360 degree horizontal pattern. Impedance is 50 ohms with a VSWR of 2.0:1 maximum and a maximum input power of 20 W. The connector is Type N male, and the antenna is a passive design that needs no power supply.

The white UV-resistant polyester and fibreglass radome carries an IP67 rating and a 265 km/hr wind rating, with an operating range of -40 to 85 C. It is listed for use with the IR509, IR510, IR529 and IR530 WPAN routers, and with the CGM-WPAN-FSK-NA and CGM-WPAN-OFDM-FCC modules in CGR1240 and CGR1120 routers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports the worldwide 863-928 MHz ISM band
- Omnidirectional pattern with vertical polarisation
- Suitable for indoor or outdoor locations
- Direct chassis-mount installation
- Type N male connector
- UV-resistant white fibreglass radome with IP67 rating
- Wide operating temperature range of -40 to 85 C

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dipole
- Operating frequency range: 863 to 928 MHz (worldwide ISM)
- Gain: 1.5 dBi maximum
- Radiation pattern: Omnidirectional
- Polarisation: Linear, vertical
- 3 dB beamwidth (vertical plane): 84 degrees
- 3 dB beamwidth (horizontal plane): 360 degrees
- Nominal impedance: 50 ohms
- VSWR: 2.0:1 maximum
- Maximum input power: 20 W
- Connector: Type N male
- Mount style: Direct chassis or bulkhead mount
- Location: Indoor or outdoor
- IP rating: IP67
- Operating temperature: -40 to 85 C
- Wind rating: 265 km/hr
- Dimensions (length x diameter): 19.56 cm x 2.60 cm
- Weight: 120 g
- Radome: Polyester/fibreglass, UV resistant, white
- Compliance: RoHS

FAQs

Q: Which Cisco devices does this antenna work with?
A: It is listed for the IR509, IR510, IR529 and IR530 WPAN routers, and for the CGM-WPAN-FSK-NA and CGM-WPAN-OFDM-FCC modules in CGR1240 and CGR1120 routers. It is also a direct-mount outdoor option for the IR530.

Q: Does the antenna need external power?
A: No. It is a passive antenna and needs no power supply. Maximum input power is 20 W.

Q: What frequency band does it cover?
A: It covers 863-928 MHz, the worldwide ISM band used for WPAN and resilient mesh deployments.

Q: Can it be used outdoors?
A: Yes. It is rated IP67, has a UV-resistant radome, operates from -40 to 85 C and carries a 265 km/hr wind rating.

Q: What connector and mounting does it use?
A: It has a Type N male connector and mounts directly to the chassis or a bulkhead.
