Cisco ANT-UN-MP-OUT-QMA | 860-928 MHz Outdoor Omni Dome Antenna, QMA Male, 5 ft

ANT-UN-MP-OUT-QMA

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

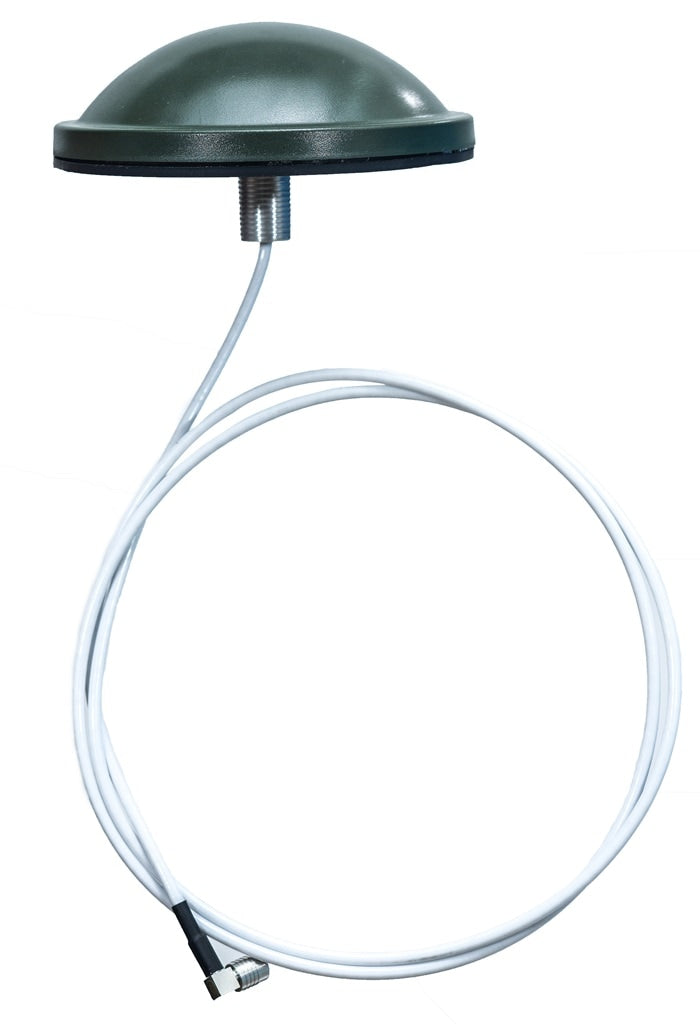

The Cisco ANT-UN-MP-OUT-QMA is a vandal-resistant, low-profile omni-directional dome antenna for outdoor 860-928 MHz ISM, WPAN and LoRaWAN deployments. It belongs to the Cisco Industrial Routers and Industrial Wireless Access Points Antennas range and suits sites such as outdoor electrical utility enclosures, where it is used with industrial routers like the IR509 and IR510.

The antenna delivers a typical peak gain of 1.7 dBi across 863-876 MHz and 1.5 dBi across 902-928 MHz without a ground plane, with vertical polarisation and a full 360 degree azimuth beamwidth. It has an integrated 5 ft RF cable terminated in a right-angle QMA male connector, handles up to 10 W of RF input power, and is rated IP67 when properly mounted to a flat surface, with impact resistance of IK10 or higher. The operating temperature range is -40 to +70 C.

It works with or without a ground plane, so it can be fitted to metallic or non-metallic surfaces. Mounting uses a Double-D stud that needs a 0.91 in hole in a flat surface of at least 15 x 15 cm. Cisco recommends a dedicated lightning arrestor where lightning exposure is possible.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Vandal-resistant dome design that withstands opportunistic impacts from common objects when properly installed on a flat surface
- Performs with or without a ground plane, so it can be fitted to metallic or non-metallic surfaces
- Smooth horizon radiation pattern with no azimuth nulls
- Double-D mounting stud prevents rotation and adds vandal resistance
- Integrated 5 ft cable with a right-angle QMA male connector
- Passed environmental and mechanical tests for outdoor electrical utility box deployment
- DC-grounded for ESD protection

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Frequency range: 860-928 MHz (ISM, WPAN, LoRaWAN)
- Peak gain, no ground plane: +1.7 dBi at 863-876 MHz, +1.5 dBi at 902-928 MHz
- Peak gain, 2 ft ground plane: +3 dBi at 863-876 MHz, +1.9 dBi at 902-928 MHz
- Pattern: Omni-directional, 360 degree azimuth 3 dB beamwidth
- Polarisation: Vertical
- Nominal impedance: 50 ohms
- Connector: QMA male, right angle
- RF cable: 5 ft integrated (RF specifications include cable loss)
- Maximum RF power: 10 W at 25 C
- VSWR (worst case): 1.7:1 at 863-876 MHz, 1.5:1 at 902-928 MHz
- Efficiency, no ground plane: 65% at 863-876 MHz, 67% at 902-928 MHz
- Anti-static protection: DC grounded
- Dimensions (diameter x height): 147 mm x 47 mm
- Weight: 0.6 kg
- Radome colour: Electrical utility box green, UV resistant
- Operating temperature: -40 to +70 C
- Storage temperature: -40 to +85 C
- Ingress protection: IP67 when properly mounted to a flat surface
- Impact resistance: IK10 or higher
- Wind operational and survival: 150 mph minimum
- Mounting: Double-D stud with 7/8-14 hex nut and serrated washer, 0.91 in hole
- Compliance: RoHS

FAQs

Q: Which Cisco routers is this antenna listed for?
A: Cisco's antenna selection table lists it for the IR509 and IR510 industrial routers, which use a QMA male right-angle connector.

Q: Does it need a ground plane?
A: No. It performs with or without a ground plane. Peak gain is higher with a 2 ft ground plane (+3 dBi at 863-876 MHz) than without one (+1.7 dBi).

Q: Does the antenna need power?
A: No. It is a passive antenna with no power requirement. Maximum RF input power is 10 W at 25 C.

Q: How is it mounted?
A: It mounts through a 0.91 in hole in a flat surface of at least 15 x 15 cm using its Double-D stud, hex nut and serrated washer. A Double-D hole punch such as McMaster Carr P/N 3449A85 is recommended.

Q: Is a lightning arrestor required?
A: The antenna is DC grounded for ESD protection, but Cisco recommends a separate lightning arrestor wherever lightning exposure is possible.
