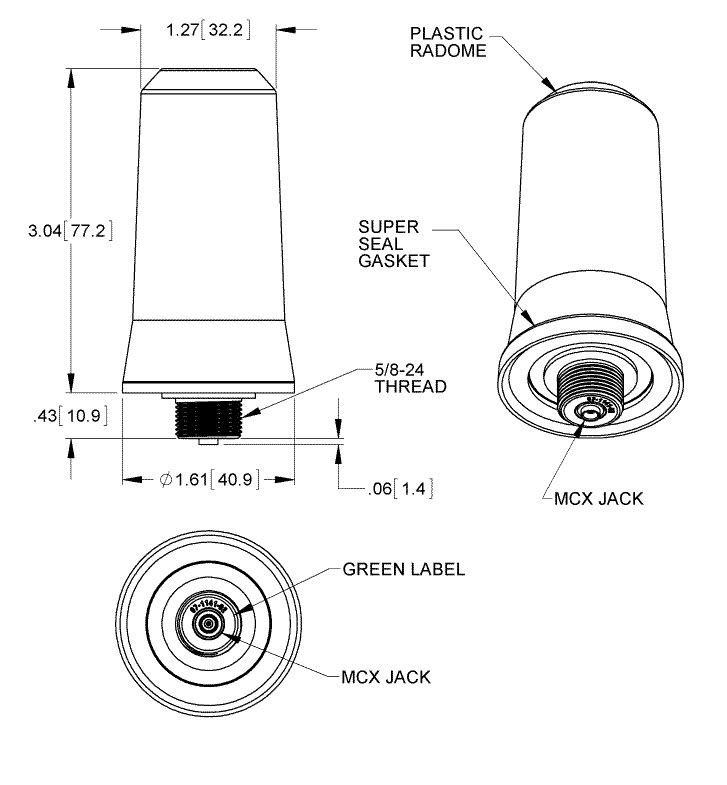

• Cisco ANT-MP2-I-OUT-M outdoor omni antenna with 3.04-inch MCX jack
1 1

Cisco

Cisco ANT-MP2-I-OUT-M | Multi-Purpose Outdoor Omni Antenna, 698-2700 MHz, 1 Antenna Kit

ANT-MP2-I-OUT-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ANT-MP2-I-OUT-M is a low-profile, IP67-rated monopole omnidirectional antenna covering cellular 3G and 4G LTE, 915 MHz ISM and 2.4 GHz WiFi bands. It suits indoor and outdoor field area deployments where one antenna needs to serve cellular, WPAN and WiFi connectivity on a Cisco CGR 1240 Connected Grid Router.

This is the single-antenna kit: one antenna, one gasket and one 10.5-inch RF cable with a tie wrap. It operates across 698 to 960 MHz, 1710 to 2170 MHz and 2300 to 2700 MHz, with peak gain of 2.8 dBi, 4.3 dBi and 5.0 dBi respectively. Polarisation is vertical with a 360 degree horizontal pattern, VSWR is 2:1 maximum and minimum efficiency is 75 percent. The MCX jack connector and a 10 W CW power handling rating suit direct router-mounted installation. It weighs 90 g and operates from -40 to 85 C.

The antenna mounts directly on the Cisco CGR 1240 router with no separate mast or mount needed. The supplied right-angle cable connects the MCX jack to the router's QMA-female connector. The sibling ANT-MP2-I-O-SS-M is the two-antenna version of this kit.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Indoor and outdoor operation with IP67 ingress protection
- Low-profile housing for discreet installation
- Covers 3G and 4G cellular, 915 MHz ISM and 2.4 GHz WiFi bands
- High-performance coverage across 698-960 MHz and 1710-2700 MHz
- Direct mounting on the router with no separate mast or mount needed
- Omnidirectional 360 degree horizontal pattern with vertical polarisation
- Passive design, no power required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Operating frequency range: 698 to 960 MHz, 1710 to 2170 MHz, 2300 to 2700 MHz
- VSWR: 2:1 max
- Peak gain 698 to 960 MHz: 2.8 dBi
- Peak gain 1710 to 2170 MHz: 4.3 dBi
- Peak gain 2300 to 2700 MHz: 5.0 dBi
- Average gain at 15 degrees elevation, 698 to 960 MHz: 0.9 dBi +/- 1.0 dB
- Average gain at 15 degrees elevation, 1710 to 2170 MHz: 3.0 dBi +/- 1.0 dB
- Average gain at 15 degrees elevation, 2300 to 2700 MHz: 4.0 dBi +/- 1.0 dB
- Efficiency: minimum 75%
- Polarisation: Vertical
- Horizontal beamwidth: Omnidirectional, 360 degrees
- Vertical beamwidth, 698 to 960 MHz: 66 degrees average
- Vertical beamwidth, 1710 to 2170 MHz: 47 degrees average
- Vertical beamwidth, 2300 to 2700 MHz: 42 degrees average
- Power handling, CW: 10 W
- Connector type: MCX jack
- Radome: PC/polyester blend, 0.110 in thick min.
- Flammability: UL94 V-0
- Colour: Cisco gray
- Ingress protection: IP67
- Weight: 90 g
- Wind loading: 165 MPH
- Overall length: 3.04 inches
- Installation torque: 6 to 9 ft/lbs
- Operating temperature: -40 to 85 C

FAQs

Q: Which router does this antenna mount on?
A: It is designed for direct mounting on the Cisco CGR 1240 Connected Grid Router. The antenna's MCX jack connects to the router's QMA-female connector through the right-angle cable.

Q: Which frequency bands does it cover?
A: It covers 698 to 960 MHz, 1710 to 2170 MHz and 2300 to 2700 MHz, which spans cellular 3G and 4G LTE, 915 MHz ISM and 2.4 GHz WiFi.

Q: Does the antenna need power?
A: No. It is a passive antenna and needs no power. It is rated for 10 W CW power handling.

Q: How does ANT-MP2-I-OUT-M differ from ANT-MP2-I-O-SS-M?
A: ANT-MP2-I-OUT-M is the single-antenna kit with one antenna, one gasket and one cable. ANT-MP2-I-O-SS-M is the two-antenna kit.

Q: What tools are needed to install it?
A: A strap wrench is recommended along with a 13 mm socket wrench. The installation torque is 6 to 9 ft/lbs.
