Cisco ANT-MP2-I-O-SS-M | Multi-Purpose Antenna Kit, MCX, 10.5in Cable, Indoor/Outdoor

ANT-MP2-I-O-SS-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

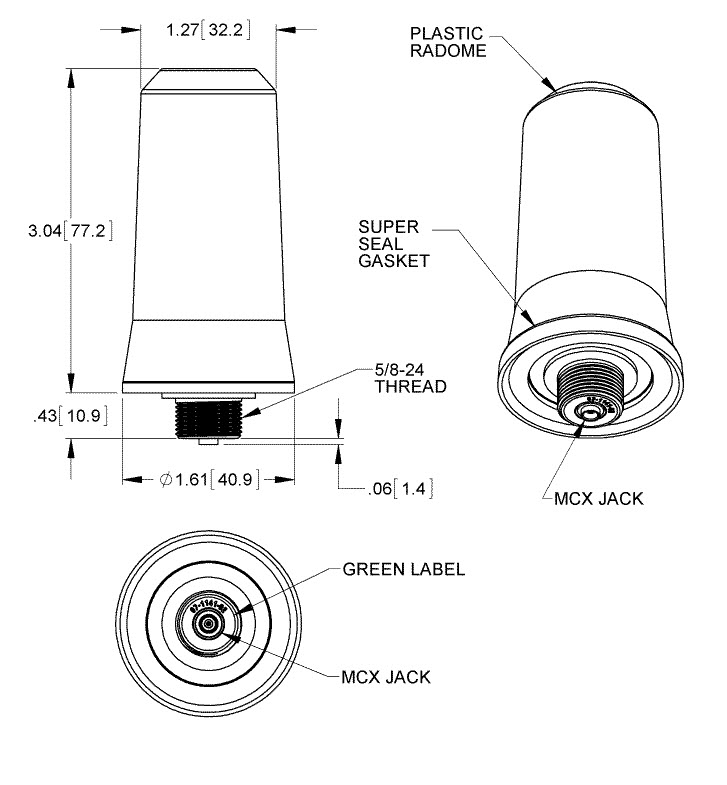

This multi-purpose integrated antenna and cable kit is a low-profile, IP67-rated monopole antenna for indoor and outdoor use. It covers 698-960 MHz, 1710-2170 MHz and 2300-2700 MHz, supporting 3G/4G cellular, 915 MHz ISM and 2.4 GHz WiFi bands. The kit includes a 10.5 inch RF cable with an MCX connector and mounts directly on the Cisco CGR1240 router, making it well suited to industrial and connected grid deployments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Indoor and outdoor operation
- Low-profile housing
- Supports 3G and 4G, 915 MHz ISM, 2.4 GHz WiFi and other bands
- Direct mounting on Cisco CGR1240 router
- Supported on Cisco CGR 1240 router

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Frequency range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz
- Peak gain: 2.8 dBi (698-960 MHz), 4.3 dBi (1710-2170 MHz), 5.0 dBi (2300-2700 MHz)
- VSWR: 2:1 maximum
- Efficiency: minimum 75%
- Polarisation: vertical, omni 360-degree horizontal pattern
- Power handling (CW): 10 W
- Connector: MCX jack
- Ingress protection: IP67
- Operating temperature: -40 to 85 °C (-40 to 185 °F)
- Weight: 90 g, overall length 3.04 in
- Radome: PC/polyester blend, UL94 V-0, Cisco gray
- Wind loading: 165 MPH
- Kit includes antenna, gasket/coax seal, 10.5 inch RF cable and tie wrap

FAQs

Q: Which frequency bands does this antenna cover?
A: It covers 698-960 MHz, 1710-2170 MHz and 2300-2700 MHz, supporting 3G/4G cellular, 915 MHz ISM and 2.4 GHz WiFi.

Q: Is this antenna suitable for outdoor use?
A: Yes. It is IP67-rated and operates from -40 to 85 °C, so it suits both indoor and outdoor installations.

Q: What connector does the kit use?
A: The antenna uses an MCX jack connector, and the kit includes a 10.5 inch RF cable.

Q: Which Cisco router is this antenna designed for?
A: It is supported on the Cisco CGR 1240 router and can mount directly on the unit.

Q: What is included in the kit?
A: The kit includes the antenna, a gasket/coax seal, a 10.5 inch RF cable and a tie wrap.
