Cisco ANT-MP-INT-OUT-M | Industrial Multi-Band Cellular Omni Antenna, IP67

ANT-MP-INT-OUT-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ANT-MP-INT-OUT-M is a low-profile multi-band omnidirectional antenna for cellular 3G and 4G connectivity. It is built for field area routers and industrial routers in utility, connected grid and other industrial deployments, and suits both indoor and outdoor installation.

The antenna covers 806 to 960 MHz, 1710 to 2170 MHz and 2300 to 2700 MHz with a peak gain of 2.8 dBi, 3.5 dBi and 4.0 dBi respectively. It is omnidirectional in the horizontal plane with vertical polarisation, a VSWR of 2:1 maximum and at least 60 percent efficiency across all bands. The IP67 rated radome and UL94 V-0 flammability rating support use in demanding environments, with an operating temperature range of -40 to 85 C. It is a passive antenna with a 10 W power handling rating and uses an MCX jack connector.

It is designed to mount directly on the router and connects to the router module using an MCX-to-QMA coaxial cable. It is listed for use with the Cisco Catalyst IR1100 Rugged Series Routers and the Cisco CGR 1240.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Indoor and outdoor use
- Low-profile housing
- Adjustable mounting brackets
- Supports 3G and 4G cellular bands
- Designed for direct mounting on the router
- IP67 rated radome with UL94 V-0 flammability rating
- Passive design with no power supply required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Operating frequency: 806 to 960 MHz, 1710 to 2170 MHz, 2300 to 2700 MHz
- Peak gain 806 to 960 MHz: 2.8 dBi
- Peak gain 1710 to 2170 MHz: 3.5 dBi
- Peak gain 2300 to 2700 MHz: 4.0 dBi
- Average gain at 15 degrees elevation, 806 to 960 MHz: 0.0 dBi +/- 1.0 dB
- Average gain at 15 degrees elevation, 1710 to 2170 MHz: 1.0 dBi +/- 1.0 dB
- Average gain at 15 degrees elevation, 2300 to 2700 MHz: 2.5 dBi +/- 1.0 dB
- Efficiency: 60% minimum across all bands
- VSWR: 2:1 max
- Polarisation: Vertical
- Horizontal plane beamwidth: Omnidirectional
- Vertical plane beamwidth: 59 degrees (806 to 960 MHz), 46 degrees (1710 to 2170 MHz), 40 degrees (2300 to 2700 MHz)
- Power withstanding: 10 W
- Connector type: MCX jack
- Radome: PC/polyester blend, Makroblend EL 703
- Flammability rating: UL94 V-0
- Colour: Cisco gray
- Ingress protection: IP67
- Wind loading: 165 MPH

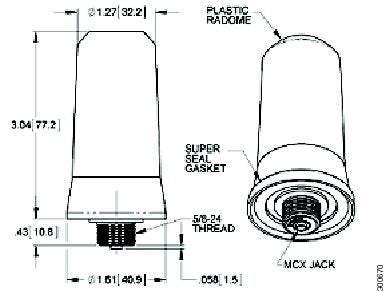

- Overall length: 3.04 inches
- Weight: 90 g
- Installation torque: 6 to 9 ft/lbs
- Operating temperature: -40 to 85 C (-40 to 185 F)

FAQs

Q: Does this antenna need a power supply?
A: No. It is a passive antenna and needs no power supply. Power handling is 10 W maximum.

Q: Which routers is it designed to work with?
A: It is designed to mount directly on Cisco industrial and connected grid routers. It is listed for the Cisco Catalyst IR1100 Rugged Series Routers and the Cisco CGR 1240.

Q: What connector does it use?
A: It has an MCX jack connector and connects to the router module using an MCX-to-QMA coaxial cable.

Q: Can it be used outdoors?
A: Yes. It is suitable for indoor and outdoor use, with an IP67 rated radome and an operating temperature range of -40 to 85 C.

Q: Which frequency bands does it cover?
A: It covers 806 to 960 MHz, 1710 to 2170 MHz and 2300 to 2700 MHz, supporting 3G and 4G cellular bands.
