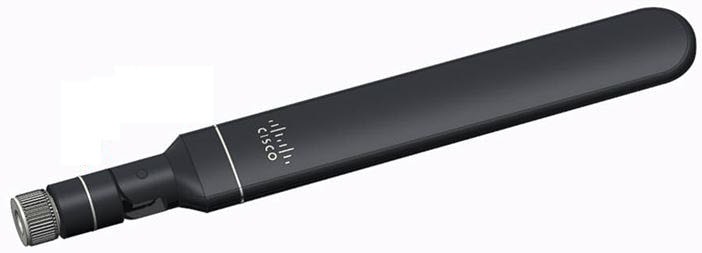

• Cisco ANT-LPWA-SMA-D black omni antenna with metallic accents
1 1

Cisco

Cisco ANT-LPWA-SMA-D | LoRaWAN Dipole Antenna, 863-928 MHz, SMA, 1 dBi

ANT-LPWA-SMA-D

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ANT-LPWA-SMA-D is an omnidirectional dipole antenna for LoRaWAN and LPWA deployments in the 863-928 MHz band. It suits indoor installations on Cisco routers (ISRs) and on IR1100 Rugged Series routers fitted with LoRaWAN pluggable interface modules.

The antenna delivers 1 dBi peak gain (0.9 dBi average peak gain) with vertical polarisation and a 88 degree vertical-plane half-power beamwidth. Nominal impedance is 50 Ohms with a VSWR of 2:1, average efficiency is 80% and power handling is 20 W. It is a passive antenna and needs no power. A male SMA connector allows direct mounting on any Cisco-supported router or pluggable module with an SMA female port, such as the P-LPWA series modules. The UV-protected PC/ABS housing is IP65 rated and measures 23.8 mm x 189.8 mm.

It is designed to perform in both straight and 90-degree bent positions, giving flexibility when the router or module sits in a tight enclosure or against a wall.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Covers 863-928 MHz for LoRaWAN and LPWA deployments
- Omnidirectional dipole pattern with vertical polarisation
- 1 dBi peak gain
- Optimised for straight and 90-degree bent positions
- Male SMA connector for direct mounting on routers or pluggable modules with an SMA female port
- UV-protected PC/ABS housing with IP65 rating
- Passive design, no power required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Frequency: 863-928 MHz
- Antenna type: Omnidirectional dipole
- Polarisation: Vertical
- Peak gain: 1 dBi
- Average peak gain: 0.9 dBi
- Connector: SMA male
- Nominal impedance: 50 Ohms
- VSWR: 2:1
- Power handling: 20 W
- HPBW vertical plane: 88 degrees
- Average efficiency: 80%
- DC ground: No
- Dimensions (W x H): 23.8 mm x 189.8 mm
- Weight: 41 g
- Operating temperature: -40 to +85 C
- Storage temperature: -40 to +85 C
- Housing material: PC/ABS, UV protected
- Colour: Black with silver stripes
- Ingress protection: IP65
- RoHS-6 compliant: Yes

FAQs

Q: What does this antenna connect to?
A: It has a male SMA connector, so it mounts directly on any Cisco-supported router or pluggable module with an SMA female connector, such as the P-LPWA LoRaWAN pluggable interface modules used in IR1100 Rugged Series routers.

Q: Does the antenna need power?
A: No. It is a passive antenna and requires no power. It can handle up to 20 W.

Q: Which frequency range does it cover?
A: It covers 863-928 MHz, the band used for LoRaWAN and LPWA in this range.

Q: Can it be used in a bent position?
A: Yes. The antenna is optimised for both straight and 90-degree bent positions.
