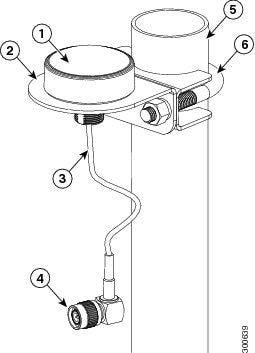

• Cisco ANT-GPS-OUT-TNC outdoor GPS antenna with black silver design
1 1

Cisco

Cisco ANT-GPS-OUT-TNC | Outdoor Active GPS Antenna, 4 dBi, 25 dB LNA, TNC

ANT-GPS-OUT-TNC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ANT-GPS-OUT-TNC is a rugged outdoor active GPS patch antenna from the Cisco Industrial Routers and Industrial Wireless Access Points antenna range. It receives the GPS L1 frequency and is built for outdoor GPS timing and location on industrial routers, connected grid routers, industrial wireless access points and LoRaWAN gateways. It mounts on a wall, pole or mast.

The antenna delivers 4.0 dBi minimum gain at zenith and 1 dBi minimum at 10 degrees elevation, with a hemispherical pattern and right-hand circular polarisation. A built-in 25 dB LNA is preceded by a GPS RF filter, which allows co-location with other radios. The housing is IP67 rated, with a 165 MPH wind speed rating and an operating temperature range of -40 to 85 C. An integrated 15 ft (4.57 m) LMR-100A cable ends in a right-angle TNC(m) connector.

As an active antenna it is powered by the host device over the coax, drawing 3 to 5 VDC at up to 20 mA. It suits any Cisco device that uses GPS and supplies the required bias, and it is supplied with the Cisco Wireless Gateway for LoRaWAN. Adapters may be needed from TNC(m) to the host interface.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Outdoor, low-profile housing
- Integrated LMR-100A cable with right-angle TNC(m) male connector
- Built-in 25 dB LNA for strong GPS signal at the host
- GPS RF filter ahead of the LNA allows co-location with other radios
- Rugged IP67 construction with a 165 MPH wind speed rating
- Mounts on a wall, pole or mast

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: Active patch antenna, GPS L1
- Operating frequency: 1575.42 MHz +/- 5 MHz
- Gain: 4.0 dBi minimum at zenith
- Minimum gain: 1 dBi at 10 degrees elevation
- Pattern: Hemispherical
- Polarisation: Circular RHCP
- LNA gain: 25 dB +/- 2 dB
- Out-of-band attenuation: 20 dB minimum at 1575 +/- 50 MHz
- Impedance: 50 ohm nominal
- VSWR: 2.0 maximum in band
- DC voltage: 3 to 5 VDC
- Current draw: 20 mA maximum at 3.3 VDC +/- 0.3 VDC
- Environment: Outdoor, IP67
- Connector: Right-angle TNC(m)
- Cable: LMR-100A, 15 ft (4.57 m)
- Height: 0.87 in. (2.21 cm)
- Diameter at base: 2.0 in. (5.0 cm) maximum
- Operating temperature: -40 to 85 C (-40 to 185 F)
- Wind speed rating: 165 MPH
- Compliance: RoHS

FAQs

Q: Does this antenna need external power?
A: It is an active antenna powered by the host device over the coax. The host must supply 3 to 5 VDC bias, and the antenna draws up to 20 mA at 3.3 VDC.

Q: Which Cisco devices does it work with?
A: It works with any Cisco device that uses GPS and supplies active-antenna DC bias within the stated specifications. It is supplied with the Cisco Wireless Gateway for LoRaWAN (IXM-LPWA-800/900) and is listed in the Cisco Industrial Router and Industrial Wireless AP antenna guide.

Q: What connector does the cable use?
A: The integrated 15 ft LMR-100A cable ends in a right-angle TNC(m) male connector. An adapter may be needed if the host GPS port uses a different interface.

Q: Can it be used next to other radios?
A: Yes. A GPS RF filter sits in front of the LNA, which allows the antenna to be co-located with other radios.

Q: How does it differ from other Cisco GPS antennas?
A: This version is the outdoor IP67 model with 4 dBi zenith gain, a 25 dB LNA and a 15 ft cable terminated in TNC(m).
