Cisco

Cisco ANT-GNSS-OUT-TNC | Outdoor Active GNSS Antenna, 15 ft Cable, TNC Male

ANT-GNSS-OUT-TNC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ANT-GNSS-OUT-TNC is an outdoor active patch GNSS antenna from the Cisco Industrial Routers and Industrial Wireless Access Points antenna range. It is designed for timing and GPS, GLONASS and BeiDou location-based services in outdoor industrial router and gateway deployments.

It covers 1560 to 1606 MHz with a built-in low-noise amplifier rated at 30 dB gain and 1 dBic antenna gain with RHCP polarisation. The antenna is connected by a 15 ft (4572 mm) LMR-100 cable ending in a TNC male connector. As an active antenna it is powered through the coax from the host by DC bias, drawing less than 10 mA. The housing is grey polycarbonate, rated IP66 and IP67, and operates from -40 to 85 C.

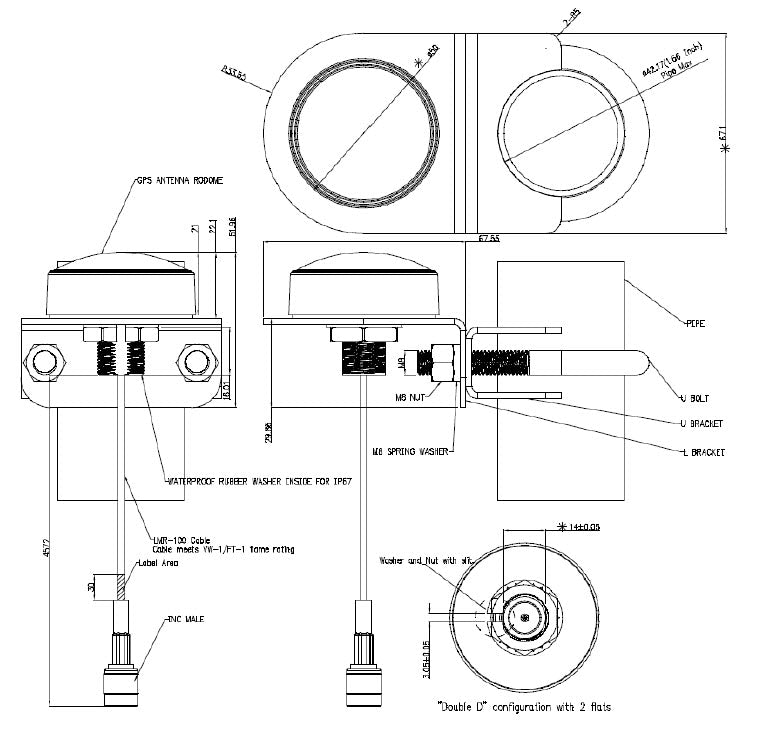

The antenna is documented in the Cisco antenna guide against the Catalyst IR1100 Rugged Series routers and is also listed for the Cisco Wireless Gateway for LoRaWAN. A pole-mount bracket and U-bolt are part of the antenna hardware set.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports GPS, GLONASS and BeiDou satellite systems
- 30 dB LNA gain for strong signal at the host
- Filter-LNA-filter-LNA arrangement to maximise performance and allow co-location with other radios
- Low current consumption of less than 10 mA
- IP66 and IP67 weather protection for outdoor installation
- Pole-mount bracket and U-bolt mounting hardware
- Wide -40 to 85 C operating range for industrial environments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Patch, active
- Frequency: 1561.1 +/- 2.1 MHz; 1575.42 +/- 1.023 MHz; 1602.6 +/- 4.0 MHz
- Frequency range: 1560 to 1606 MHz
- Nominal impedance: 50 ohm
- Antenna gain: 1 dBic +/- 1 dB
- LNA gain: 30 dB +/- 2 dB
- Polarisation: RHCP
- Current consumption: Less than 10 mA
- Connector: TNC male
- Cable type: LMR-100 (VW-1/FT-1 flame rating)
- Cable length: 4572 mm (15 ft)
- Weight: 420 g
- Colour and material: Grey, polycarbonate
- Operating temperature: -40 to 85 C
- Storage temperature: -40 to 85 C
- Ingress protection: IP66 and IP67
- RoHS compliant: Yes

FAQs

Q: How is the antenna powered?
A: It is an active antenna powered through the coax from the host by DC bias, drawing less than 10 mA.

Q: Which Cisco hosts is it documented for?
A: It is documented in the Cisco Industrial Routers and Industrial Wireless Access Points Antenna Guide under the Catalyst IR1100 Rugged Series routers, and is also listed for the Cisco Wireless Gateway for LoRaWAN.

Q: Which satellite systems does it support?
A: It supports GPS, GLONASS and BeiDou across 1560 to 1606 MHz.

Q: Does it need a licence?
A: No. It is a passive-mounted hardware antenna with no licence or subscription requirement.

Q: How does this SKU differ from other Cisco GNSS antennas?
A: This is the outdoor version with a 15 ft cable and a TNC male connector, rated IP66 and IP67.
