Cisco ANT-7-5G4WL2G1-O | 7-in-1 Outdoor Antenna, 4x 5G/LTE, 2x Wi-Fi, GNSS, IP67

ANT-7-5G4WL2G1-O

14 in stock

$1,221.00 inc. GST
$1,110.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

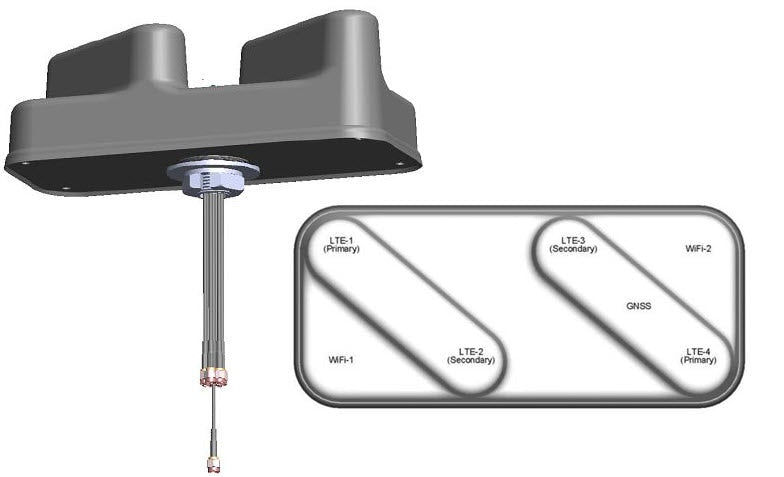

This Cisco 7-in-1 outdoor antenna combines four 4G LTE and 5G cellular elements, two dual-band Wi-Fi elements and one active GNSS element in a single rugged IP67 housing. It is built for vehicle-mount and fixed-infrastructure deployments such as transportation, vehicular and industrial outdoor networks that need cellular, Wi-Fi and positioning from one mounting point. It is listed in Cisco's Industrial Routers and Industrial Wireless Access Points antenna guide.

The four cellular elements cover 617-960 MHz and 1710-5925 MHz, including LTE and 5G FR1 Band 71, with average peak gain of 2.1 dBi and 5.3 dBi across those ranges. The two Wi-Fi elements cover 2400-2500 MHz and 4900-5925 MHz, with average peak gain of 5.8 dBi and 5.5 dBi. The GNSS element is an active L1-band design with a noise figure below 2.4 dB, powered from the host at 3.3-5 Vdc and drawing less than 11 mA. All elements are omnidirectional with vertical polarisation at 50 Ohm impedance.

The UV-stable thermoplastic housing is rated IP67 and operates from -40 to +85 C. It mounts directly through a 27.0 mm hole and uses pre-terminated cables with 4x SMA for LTE/5G, 2x reverse polarity SMA for Wi-Fi and 1x SMA for GNSS. Cisco's mounting guidance for modular routers such as the IR1835 with plug-in Wi-Fi, 4G LTE and 5G NR modules is to place the antenna away from the router chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 7-in-1 design consolidates cellular, Wi-Fi and GNSS into a single housing
- Supports LTE and 5G FR1 including Band 71 (617-698 MHz)
- Dual-band Wi-Fi elements covering 2.4 GHz and 4.9-5.925 GHz
- Active GNSS element with LNA for L1-band positioning
- UV-stable rugged thermoplastic housing, IP67 rated for outdoor and vehicular use
- Omnidirectional radiation pattern with vertical polarisation
- Pre-terminated low-loss cables with SMA and reverse polarity SMA connectors

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Multi Band Monopole, built-in ground plane
- Elements: 4x cellular (4G LTE / 5G FR1), 2x dual-band Wi-Fi, 1x active GNSS
- Frequency (4x LTE/5G): 617-960 / 1710-5925 MHz
- Frequency (2x Wi-Fi): 2400-2500 / 4900-5925 MHz
- Frequency (GNSS): 1561.098 +/- 2.046, 1575.42 +/- 1.023, 1602.5625 +/- 4 MHz
- Average peak gain (LTE/5G): 2.1 dBi at 617-960 MHz, 5.3 dBi at 1710-5925 MHz
- Average peak gain (Wi-Fi): 5.8 dBi at 2400-2500 MHz, 5.5 dBi at 4900-5925 MHz
- Connectors: 4x SMA plug (LTE/5G), 2x reverse polarity SMA plug (Wi-Fi), 1x SMA plug (GNSS)
- Cabling: 6x 0.6 m RG-316 (LTE and Wi-Fi), 1x 5.2 m RG-174 (GNSS)
- Nominal impedance: 50 Ohms
- VSWR (LTE / Wi-Fi): 3:1 / 2.5:1
- Radiation pattern: Omnidirectional
- Polarisation: Vertical
- GNSS noise figure: less than 2.4 dB
- GNSS operating voltage: 3.3-5 Vdc +/- 0.5 V
- GNSS current consumption: less than 11 mA
- Mounting: Direct mount, 27.0 mm hole required
- Dimensions (L x W x H): 275.3 x 123.3 x 92.3 mm
- Weight: 839.2 g
- Housing material: UV-stable rugged thermoplastic
- Ingress protection: IP67
- Operating temperature: -40 to +85 C
- Humidity: 5 to 95%
- Altitude: 4.5 km (15,000 ft)

FAQs

Q: Does this antenna need a licence or subscription?
A: No. There is no licence or subscription requirement. The cellular and Wi-Fi elements are passive, and the GNSS element is powered by the host device.

Q: How is the GNSS element powered?
A: The active GNSS element is powered by the host router or module at 3.3-5 Vdc +/- 0.5 V and draws less than 11 mA.

Q: Which Cisco devices is this antenna intended for?
A: It is listed in Cisco's Industrial Routers and Industrial Wireless Access Points antenna guide. For modular routers such as the IR1835 with plug-in Wi-Fi, 4G LTE and 5G NR modules, Cisco recommends mounting the antenna away from the router chassis.

Q: What connectors does it use?
A: It has four SMA plug connectors for the LTE/5G elements, two reverse polarity SMA plug connectors for the Wi-Fi elements and one SMA plug for the GNSS element.

Q: How is it mounted?
A: It is a direct-mount antenna and needs a 27.0 mm (1.063 in) hole in the mounting surface.
