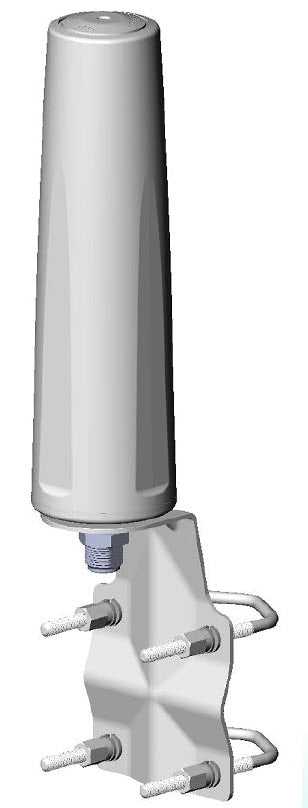

• Cisco ANT-5G-OMNI-OUT-N outdoor omni antenna with pole mount
1 1

Cisco

Cisco ANT-5G-OMNI-OUT-N | Industrial Omnidirectional Antenna, 617-7125 MHz, N-Female

ANT-5G-OMNI-OUT-N

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco ANT-5G-OMNI-OUT-N is an outdoor omnidirectional dipole antenna for 3G, 4G and 5G (FR1) cellular deployments. It is part of the Cisco industrial routers and industrial wireless access points antenna range and suits IoT devices, smart metering and utility boxes where a weather-resistant external antenna is needed.

The antenna covers 617-960 MHz and 1450-7125 MHz, including Band 71 and the LTE Japan bands at 1400-1520 MHz. Peak gain is 2.5 dBi across 617-960 MHz, 4.0 dBi across 1450-4200 MHz and 4.3 dBi across 4400-7125 MHz, with vertical polarisation and a 10 W average power rating. Connection is by N-Female connector, and the supplied pole-mount bracket fits poles from 25.4 to 54 mm in either a horizontal or vertical orientation. The housing is rated IP66 and IP67 and operates from -40 to +85 C.

It connects to a dedicated N-type female antenna port on Cisco IR21, IR31, IR1101, IR1800 and IR8300 routers fitted with a P-LTE, LTEA or 5G cellular modem, and on the IR8100 with a UIM LTE, LTEA or 5G cellular module.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Omnidirectional, vertically polarised pattern for 3G, 4G and 5G FR1 cellular
- Wide frequency coverage including sub-1 GHz Band 71 and up to 7125 MHz
- Dual-band Wi-Fi capability
- Weather-resistant IP66 and IP67 housing
- Connector and bracket rated for 720 hours of salt spray
- Pole-mount bracket for horizontal or vertical installation
- DC grounded for ESD protection
- Installs without special tools

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dipole, omnidirectional
- Operating frequency: 617-960 MHz and 1450-7125 MHz
- Band support: includes Band 71 (617-698 MHz) and LTE Japan 1400-1520 MHz
- Peak gain 617-960 MHz: 2.5 dBi
- Peak gain 1450-4200 MHz: 4.0 dBi
- Peak gain 4400-7125 MHz: 4.3 dBi
- Average efficiency: 81% (617-960 MHz), 84% (1450-4200 MHz), 66% (4400-7125 MHz)
- Nominal impedance: 50 Ohms
- VSWR: 2:1 (617-960 MHz and 1450-7125 MHz)
- Polarisation: Vertical
- Vertical beamwidth (HPBW): 96 deg (617-960 MHz), 48 deg (1450-4200 MHz), 46 deg (4400-7125 MHz)
- Average power rating: 10 W
- Connector: N-Female, 720-hour salt spray rated
- Mounting: pole-mount bracket for 25.4-54 mm poles, horizontal or vertical
- Dimensions: 62.2 mm diameter x 219.4 mm height
- Weight: 620 g
- Operating and storage temperature: -40 to +85 C
- Ingress protection: IP66 and IP67
- ESD protection: DC grounded
- Compliance: RoHS-6

FAQs

Q: Which Cisco routers does this antenna connect to?
A: It connects to a dedicated N-type female antenna port on the IR21, IR31, IR1101, IR1800 and IR8300 with a P-LTE, LTEA or 5G cellular modem, and on the IR8100 with a UIM LTE, LTEA or 5G cellular module.

Q: Does this antenna need power?
A: No. It is a passive antenna and needs no power supply. It has an average power rating of 10 W.

Q: What mounting options are available?
A: The pole-mount bracket fits poles from 25.4 to 54 mm and can be mounted horizontally or vertically. The connector and bracket are rated for 720 hours of salt spray.

Q: Which frequency bands does it cover?
A: It covers 617-960 MHz and 1450-7125 MHz, including Band 71 and the LTE Japan bands at 1400-1520 MHz.

Q: Is it suitable for outdoor use?
A: Yes. It is rated IP66 and IP67 and operates from -40 to +85 C. Cisco recommends coax seal on the outdoor connection.
