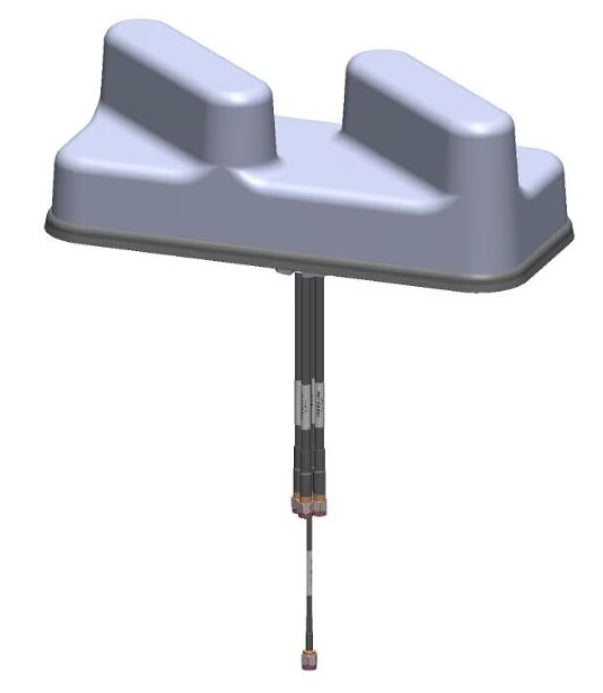

• Cisco ANT-5-5G4G1-O 5-in-1 outdoor antenna with gray black antenna
1 1

Cisco

Cisco ANT-5-5G4G1-O | 5-in-1 Outdoor Antenna, 4x 5G/LTE + 1x GNSS, IP67

ANT-5-5G4G1-O

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ANT-5-5G4G1-O is a rugged 5-in-1 outdoor antenna from the Cisco Industrial Routers and Industrial Wireless Access Points Antennas range. It combines four 5G (FR1)/LTE cellular elements with one active GNSS L1 element in a single IP67 housing, and is designed for roof mounting on a vehicle or fixed structure. It suits transportation and other outdoor industrial deployments that need cellular connectivity and positioning from one antenna.

The four cellular elements cover 617-960 MHz and 1710-5925 MHz, including Band 71 and CBRS Bands 42/48, with an omni-directional vertical-polarised pattern. Average peak gain is 2.0 dBi in the low band and 5.8 dBi in the high band, with 45 W power withstanding. The GNSS element is active, with a 30 dB low-noise amplifier running from a 3.3-5.0 Vdc supply at under 11 mA. Cabling is fire-retardant: four 5 ft (1.52 m) LMR-195-FR cellular leads and one 7.5 ft (2.29 m) RG-174 GNSS lead, all with SMA-male connectors.

The antenna is listed in Cisco's antenna guide for industrial routers such as the Catalyst IR1100 Rugged Series, and needs a 27.0 mm mounting hole. The PC/ABS housing is UV protected and rated from -40 to +85 C.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multi-element design covering 617-5925 MHz for 5G and LTE
- Band 71 and CBRS Bands 42/48 coverage
- Active GNSS L1 element with a low-noise 30 dB amplifier
- Fire-retardant low-loss cables with SMA-male connectors
- IP67 rated, UV-protected PC/ABS housing for outdoor use
- Meets or exceeds environmental ruggedization specifications for transportation applications
- Roof mount on a vehicle or fixed structure

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Cellular elements: 4 x 5G (FR1)/4G LTE
- Cellular frequency range: 617-960 MHz and 1710-5925 MHz
- GNSS element: 1 x active GNSS L1 with 30 dB LNA
- Includes Band 71 (617-698 MHz) and CBRS Bands 42/48 (3400-3700 MHz)
- Radiation pattern: Omni-directional
- Cellular polarization: Vertical
- Average peak gain: 2.0 dBi (617-960 MHz), 5.8 dBi (1710-5925 MHz)
- Power withstanding: 45 W
- Nominal impedance: 50 Ohms
- Cellular cables: 4 x 5 ft (1.52 m) LMR-195-FR, SMA male
- GNSS cable: 1 x 7.5 ft (2.29 m) RG-174, SMA male
- GNSS polarization: RHCP
- GNSS operating voltage: 3.3-5.0 Vdc
- GNSS current consumption: Under 11 mA
- Mounting: 27.0 mm (1.063 in) hole required
- Dimensions (L x W x H): 275.3 x 123.4 x 92.3 mm (10.84 x 4.86 x 3.63 in)
- Weight: 859.03 g (1.89 lbs)
- Housing material: PC/ABS, UV protected
- Ingress protection: IP67
- Operating temperature: -40 to +85 C
- Compliance: RoHS

FAQs

Q: What connectors does this antenna use?
A: It has four SMA-male connectors for the cellular elements and one SMA-male connector for the GNSS element.

Q: Does the GNSS element need power?
A: Yes. The GNSS element is active and needs a 3.3-5.0 Vdc supply at under 11 mA, normally fed from the host router's GNSS port. The cellular elements are passive.

Q: What mounting hole size is required?
A: A 27.0 mm (1.063 in) hole is required for mounting on a vehicle roof or fixed structure.

Q: Which Cisco devices is it listed for?
A: It is listed in Cisco's Industrial Routers and Industrial Wireless Access Points Antenna Guide, shown under the Catalyst IR1100 Rugged Series Routers.

Q: Does it cover CBRS and low-band 5G?
A: Yes. Coverage includes Band 71 (617-698 MHz) and CBRS Bands 42/48 (3400-3700 MHz) within its 617-960 MHz and 1710-5925 MHz range.
