Cisco ANT-4G-SR-OUT-TNC | 4G LTE Outdoor Saucer Antenna, TNC(m), 15 ft LMR-195

ANT-4G-SR-OUT-TNC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

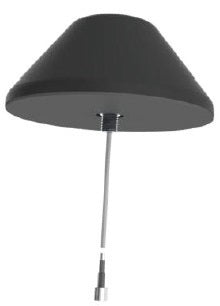

The ANT-4G-SR-OUT-TNC is a low-profile, weatherproof omnidirectional saucer antenna from the Cisco 4G LTE antenna range. It is designed for outdoor 3G and 4G LTE cellular connections on industrial and connected grid routers, and can be mounted on a roof, a flat surface or a utility cabinet wall.

The antenna covers 698-960 MHz, 1448-1511 MHz (GPS/GNSS) and 1710-2700 MHz, with linear vertical polarisation and a 50 ohm nominal impedance. Peak gain with the 15 ft cable is 0.8 dBi at 698-960 MHz, 0.5 dBi at 1448-1511 MHz and 0.2 dBi at 1710-2700 MHz. The 15 ft LMR-195 cable terminates in a TNC(m) connector, and the antenna fixes to a 5/8-18-NF mounting stud. The UV-stable PC/ABS radome is rated IP67 and IK-08 for outdoor use from -40 to 70 C.

It is documented for use with Cisco Catalyst IR1100 Rugged Series routers, Cisco 1000 Series Connected Grid Routers using the ANT-ADPTR-Q-TNC TNC(f)-to-QMA(m) adapter, and Cisco 4G LTE 2.0 Network Interface Modules using their TNC main and MIMO connectors.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Suitable for both 3G and 4G LTE solutions
- Supports the domestic LTE 700 band and the global LTE 2600 band
- Supports domestic cellular and global GSM bands
- Weatherproof, UV-stable radome for long outdoor life
- Low-profile saucer design for roof or flat-surface mounting
- Excellent flame rating
- Covers GSM, DCS, UMTS and LTE/WiMAX bands plus the GPS/GNSS range

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Frequency range: 698 to 960 MHz, 1448 to 1511 MHz, 1710 to 2700 MHz
- Peak gain with 15 ft cable: 0.8 dBi (698-960 MHz), 0.5 dBi (1448-1511 MHz), 0.2 dBi (1710-2700 MHz)
- Average efficiency with 15 ft cable: 60% (698-960 MHz), 50% (1448-1511 MHz), 40% (1710-2700 MHz)
- Polarisation: Linear, vertical
- Radiation pattern: Omnidirectional (H-plane)
- Nominal impedance: 50 ohms
- VSWR (maximum): 2.0:1 (698-960 MHz), 1.9:1 (1448-1511 MHz), 2.0:1 (1710-2700 MHz)
- Maximum input power: 3 W
- Cable: 15 ft LMR-195
- RF connector: TNC(m)
- Mount style: Stud mount, 5/8-18-NF mounting stud
- Radome: PC/ABS, UV stable, black
- Environmental rating: Outdoor, IP67, IK-08
- Operating temperature: -40 to 70 C (-22 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Dimensions (H x OD): 87 mm x 200 mm (3.4 in x 7.9 in)
- Weight: 0.75 kg
- Compliance: RoHS

FAQs

Q: Which Cisco routers is this antenna documented for?
A: It is documented for Cisco Catalyst IR1100 Rugged Series routers, Cisco 1000 Series Connected Grid Routers and Cisco 4G LTE 2.0 Network Interface Modules.

Q: Does it need a power supply?
A: No. It is a passive antenna with a maximum input power of 3 W, so it needs no external power.

Q: Can it be used with a CGR 1120 router?
A: Yes, with the CGM cellular module and the ANT-ADPTR-Q-TNC TNC(f)-to-QMA(m) adapter.

Q: How is it mounted?
A: It uses a 5/8-18-NF mounting stud and can be fixed to a roof or any suitable flat surface, such as a utility cabinet wall.

Q: Is it rated for outdoor use?
A: Yes. It is rated IP67 and IK-08 and operates from -40 to 70 C.
