Cisco ANT-4G-PNL-OUT-N | 4G LTE Multiband Panel Antenna, Outdoor, Dual N-Type

ANT-4G-PNL-OUT-N

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

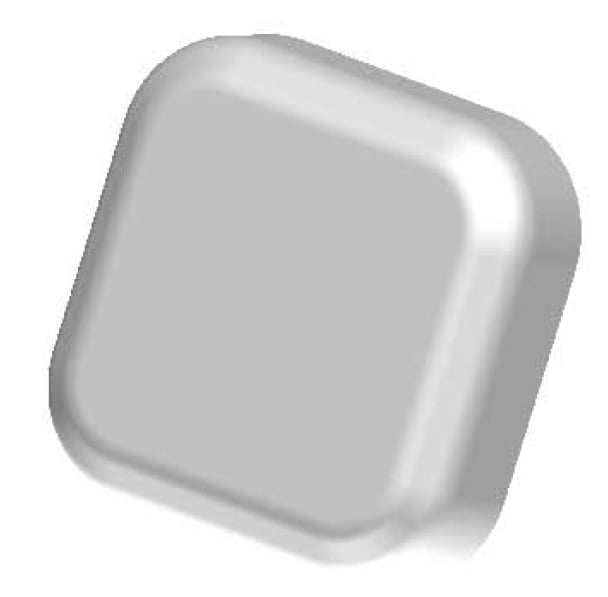

This Cisco 4G LTE multiband panel antenna is a dual-polarized MIMO directional antenna for 3G, 4G LTE and WiMAX cellular links. It suits indoor or outdoor installations where a router needs a stronger, aimed signal, such as outdoor or indoor 4G/LTE cellular backhaul for Cisco Connected Grid and industrial routers, mounted on a wall or mast.

The antenna covers 698 to 960 MHz and 1710 to 2700 MHz, with gain from 6.0 to 10.0 dBi depending on the band. It uses slant +/-45 degree polarization, a 50 ohm nominal impedance, VSWR of 2.0:1 maximum and isolation above 30 dB between the two ports. Connection is through two N-type female connectors, with a maximum input power of 10 W per port. Supported bands include LTE700, cellular, PCS, AWS, MDS, global GSM900, GSM1800, UMTS, LTE2600 and WiMAX 2300/2500.

The polycarbonate, UV-resistant radome is IP55 rated with a 160 km/hr wind rating, and it operates from -40 to 70 C. Mounting is by wall or mast. It is listed for use with the Cisco CGR 1120, CGR 1240, IR809 and IR829 routers, and also appears in Cisco's Catalyst IR1100 antenna guide and the 4G LTE 2.0 interface card, ISR 4000 NIM and 880G/890G router datasheets.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 3G, 4G LTE and WiMAX 2300/2500 operation
- Dual-band coverage across 698-960 MHz and 1710-2700 MHz
- Dual-polarized MIMO design with greater than 30 dB port isolation
- Directional panel pattern for aimed, higher-gain cellular links
- Two N-type female connectors for direct connection
- Wall or mast mount installation
- IP55 rated with a UV-resistant polycarbonate radome
- Operates from -40 to 70 C for outdoor deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: 4G directional panel, dual-polarized MIMO
- Frequency: 698 to 960 MHz and 1710 to 2700 MHz
- Gain, 698-960 MHz: 8.0 to 10.0 dBi
- Gain, 1710-2170 MHz: 6.0 to 8.5 dBi
- Gain, 2200-2400 MHz: 6.5 to 9.5 dBi
- Gain, 2500-2700 MHz: 8.5 to 9.5 dBi
- Nominal impedance: 50 ohms
- VSWR: 2.0:1 maximum
- Isolation: greater than 30 dB
- Polarization: Slant +/-45 degrees
- Radiation pattern: Directional
- 3 dB beamwidth, vertical plane: 55 to 70 degrees (698-960 MHz), 53 to 98 degrees (1710-2200 MHz), 60 to 70 degrees (2200-2500 MHz), 55 to 70 degrees (2500-2700 MHz)
- 3 dB beamwidth, horizontal plane: 55 to 70 degrees (698-960 MHz), 50 to 90 degrees (1710-2200 MHz)
- Front-to-back ratio: greater than 15 dB, typically 20 dB (698-960 MHz); greater than 17 dB, typically 23 dB (1700-2700 MHz)
- Connectors: 2 x type N female, direct connect
- Maximum input power: 10 W per port
- Operating temperature: -40 to 70 C
- Storage temperature: -40 to 85 C
- Ingress protection: IP55
- Wind rating: 160 km/hr
- Radome: polycarbonate, UV resistant, white
- Mounting: wall or mast
- Dimensions (W x L x H): 29.5 x 29.5 x 8.2 cm
- Weight: 1.46 kg
- Compliance: RoHS

FAQs

Q: Which Cisco routers is this antenna listed for?
A: The installation guide lists the CGR 1120, CGR 1240, IR809 and IR829 routers. Cisco also lists it in its Catalyst IR1100 antenna guide and in the 4G LTE 2.0 interface card, ISR 4000 NIM and 880G/890G router datasheets.

Q: Does the antenna need a power supply?
A: No. It is a passive antenna with no power supply. The maximum input power is 10 W per port.

Q: What frequency bands does it cover?
A: It covers 698 to 960 MHz and 1710 to 2700 MHz, including LTE700, cellular, PCS, AWS, MDS, global GSM900, GSM1800, UMTS, LTE2600 and WiMAX 2300/2500.

Q: Can it be installed outdoors?
A: Yes. It is IP55 rated with a UV-resistant polycarbonate radome, a 160 km/hr wind rating and an operating range of -40 to 70 C.

Q: How is it mounted and connected?
A: It mounts on a wall or a mast and connects through two N-type female connectors, one for each polarization.
