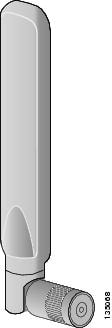

• Cisco ANT-4G-DP-IN-TNC indoor 4G LTE dipole antenna with TNC swivel mount
1 1

Cisco

Cisco ANT-4G-DP-IN-TNC | Indoor Swivel-Mount Dipole 4G/LTE Antenna, TNC(m)

ANT-4G-DP-IN-TNC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ANT-4G-DP-IN-TNC is a low-profile indoor dipole antenna with an articulating swivel arm, built for 3G and 4G/LTE connectivity on Cisco industrial and connected-grid routers. It suits front-panel mounted installations where the antenna can be angled for the best signal.

It covers 698-960 MHz and 1710-2700 MHz, spanning domestic LTE 700, global LTE 2600, cellular, PCS, AWS and global GSM/UMTS bands. Peak gain is 0.5 dBi in the lower band and 2.2 dBi in the upper band, with an average efficiency of 55% and 73% respectively. It is a 50 ohm linear-polarised dipole with a TNC male connector, a VSWR below 2.5:1 and a 3 W maximum input power. The white blade-style body measures 229 x 30.5 x 15 mm and weighs 49 g. As a passive antenna, it needs no power supply.

This antenna is the standard dipole for the Cisco IR829 and is also listed for the IR809 and Connected Grid Router 1120. The optional 4G-AE010-R (10 ft) and 4G-AE015-R (15 ft) extension bases allow the antenna to be positioned away from the router.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Low-profile blade style sheath
- Covers both 3G and 4G solutions in a single antenna
- Domestic LTE 700 and global LTE 2600 band support
- Domestic cellular and global GSM coverage
- Articulating arm for positioning the antenna for maximal coverage
- Passive design with no power supply required
- RoHS compliant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dipole
- Environment: Indoor
- Mount style: Direct mount, swivel (articulating arm)
- Frequency ranges: 698-960 MHz and 1710-2700 MHz
- Frequency bands: 698-806 MHz, 824-894 MHz, 880-960 MHz, 1710-1880 MHz, 1850-1990 MHz, 1920-2170 MHz, 2100-2500 MHz, 2500-2690 MHz
- Peak gain: 0.5 dBi (698-960 MHz), 2.2 dBi (1710-2700 MHz)
- Average efficiency: 55% (698-960 MHz), 73% (1710-2700 MHz)
- VSWR: less than 2.5:1
- Nominal impedance: 50 ohms
- Polarization: Linear
- RF connector: TNC (male)
- Maximum input power: 3 W
- Size (L x W x D): 229 x 30.5 x 15 mm
- Weight: 49 g
- Operating temperature: -35 to +70 C (-31 to 158 F)
- Colour: White
- Compliance: RoHS compliant

FAQs

Q: Which Cisco routers does this antenna work with?
A: It is the standard dipole antenna for the Cisco IR829 and is also listed for the IR809 and Connected Grid Router 1120. See the Cisco Antenna Selection Table for the full router compatibility list.

Q: Can the antenna be mounted away from the router?
A: Yes. The optional 4G-AE010-R (10 ft) and 4G-AE015-R (15 ft) extension bases for TNC dipole antennas allow remote positioning.

Q: Does it need a power supply?
A: No. It is a passive antenna with no power requirement. The maximum input power is 3 W.

Q: Is it suitable for outdoor use?
A: No. It is an indoor antenna. Use an outdoor-rated Cisco 4G/LTE antenna where the antenna must sit outside.

Q: What connector does it use?
A: It has an RF TNC male connector and a 50 ohm nominal impedance.
