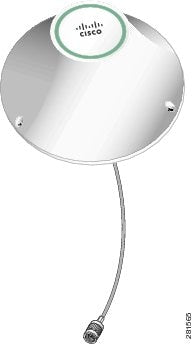

• White Cisco ANT-4G-CM-IN-TNC indoor ceiling-mount 4G/LTE antenna with green accents
1 1

Cisco

Cisco ANT-4G-CM-IN-TNC | 4G LTE Indoor Ceiling-Mount Omni Antenna, TNC (Male)

ANT-4G-CM-IN-TNC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 4G LTE Antennas range from Cisco includes this low-profile, indoor omnidirectional multiband antenna in a ceiling-mount Volcano style housing. It is intended for indoor 4G/LTE cellular connectivity on Cisco connected grid and industrial routers, such as utility, industrial and enterprise indoor sites where a neutral, unobtrusive ceiling-mounted antenna is needed.

The antenna covers 698 to 960 MHz, 1575 MHz and 1710 to 2700 MHz, with a peak gain of 1 dBi, 2 dBi and 3 dBi across those bands respectively. It has a 50 ohm TNC (male) RF connector, linear vertical polarisation and a 3 W power handling rating. The UV-stable PC/ABS enclosure measures 199 mm in diameter by 86 mm high and weighs 0.34 kg, with UL-94V0 flame-rated materials and a plenum-rated cable.

It is supported on the Cisco CGR 1120, CGR 1240 and CGR 2010 Connected Grid Routers, and is also listed in Cisco ISR 4G LTE antenna guides for cellular modules and NIMs that use TNC connectors. Mounting is flush to the ceiling.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Indoor ceiling mount in a low-profile, aesthetically neutral housing
- Radiation pattern shaped for optimal performance as a ceiling-mount antenna
- Multiband coverage across GSM, DCS, UMTS and LTE/WiMAX frequencies
- Designed and tested for high RF efficiency across all supported cellular bands
- Passive antenna, no power supply required
- UL-94V0 flame-rated materials with a plenum-rated cable

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: Omnidirectional, indoor, ceiling mount
- Frequency range: 698 to 960 MHz, 1575 MHz, 1710 to 2700 MHz
- Peak gain: 1 dBi (698 to 960 MHz), 2 dBi (1575 MHz), 3 dBi (1710 to 2700 MHz)
- VSWR: 2.0:1 (698 to 960 MHz), 2.5:1 (1575 MHz), 2.0:1 (1710 to 2700 MHz)
- H-plane (3 dB beamwidth): Omnidirectional
- Polarisation: Linear, vertical
- RF connector: TNC (male)
- Nominal impedance: 50 ohm
- Power handling: 3 W
- Dimensions: 199 mm diameter x 86 mm height
- Weight: 0.34 kg
- Enclosure: PC/ABS, UV stable
- Cable: 305 mm, plenum rated
- Mounting: Ceiling mount (flush)
- Operating temperature: -30 to 70 C
- Storage temperature: -40 to 85 C
- Flammability rating: UL-94V0 materials
- Compliance: RoHS 6/6

FAQs

Q: Which routers is this antenna supported on?
A: It is supported on the Cisco CGR 1120, CGR 1240 and CGR 2010 Connected Grid Routers. It is also listed in Cisco ISR 4G LTE antenna guides for cellular modules and NIMs that use TNC connectors.

Q: Does this antenna need a power supply?
A: No. It is a passive antenna and needs no power supply. It is rated for 3 W of power handling.

Q: What connector does it use?
A: It uses a 50 ohm TNC (male) RF connector, so the router or module port must accept a TNC connection.

Q: Can it be installed outdoors?
A: No. This model is designed for indoor use only, with flush ceiling mounting.

Q: Which frequency bands does it cover?
A: It covers 698 to 960 MHz, 1575 MHz and 1710 to 2700 MHz, spanning GSM, DCS, UMTS and LTE/WiMAX bands.
