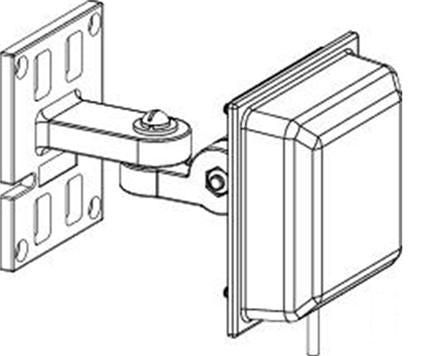

• Cisco AIR-ANTM5560P-R dual-band 2.4/5 GHz patch panel antenna with wall mount
1 1

Cisco

Cisco AIR-ANTM5560P-R | Aironet Dual-Band 5.5/6 dBi Wall-Mount Patch Antenna

AIR-ANTM5560P-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The AIR-ANTM5560P-R is an indoor dual-band directional patch antenna from the Cisco Aironet antenna range. It suits wall-mounted deployments where Wi-Fi coverage needs to be focused into a defined area, such as offices and similar indoor spaces, and it is built for access points that use spatial diversity.

The antenna covers both the 2.4 GHz and 5 GHz bands, so a single antenna serves both radios. Gain is 5.5 dBi in the 2.4 GHz band and 6 dBi in the 5 GHz band, with a directional panel pattern of roughly 60 degrees. It is a passive antenna and needs no power supply. Connection is by an RP-TNC pigtail cable.

It works with Cisco Aironet access points that have RP-TNC antenna connectors, including spatial-diversity systems using IEEE 802.11a/b/g radios.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Covers both the 2.4 GHz and 5 GHz bands with a single antenna
- Designed for spatial-diversity access point systems
- Directional wall-mount patch design for focused indoor coverage
- RP-TNC pigtail connection for Aironet access points with RP-TNC antenna ports
- Passive design with no power requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Frequency bands: 2.4 GHz and 5 GHz
- Gain at 2.4 GHz: 5.5 dBi
- Gain at 5 GHz: 6 dBi
- Antenna type: Panel / patch, directional
- Beam width: approximately 60 degrees
- Mounting: Wall mount
- Connector: RP-TNC (pigtail)
- Environment: Indoor
- Power: Passive, no power supply required

FAQs

Q: Does this antenna need power?
A: No. It is a passive antenna, so it needs no power supply or PoE.

Q: Which access points does it work with?
A: It works with Cisco Aironet access points that have RP-TNC antenna connectors, including spatial-diversity systems using IEEE 802.11a/b/g radios.

Q: Is it suitable for outdoor use?
A: No. The AIR-ANTM5560P-R is designed for indoor use.

Q: What coverage pattern does it provide?
A: It is a directional patch antenna with a beam of roughly 60 degrees, so it concentrates coverage in front of the wall mounting position rather than in all directions.
