Cisco

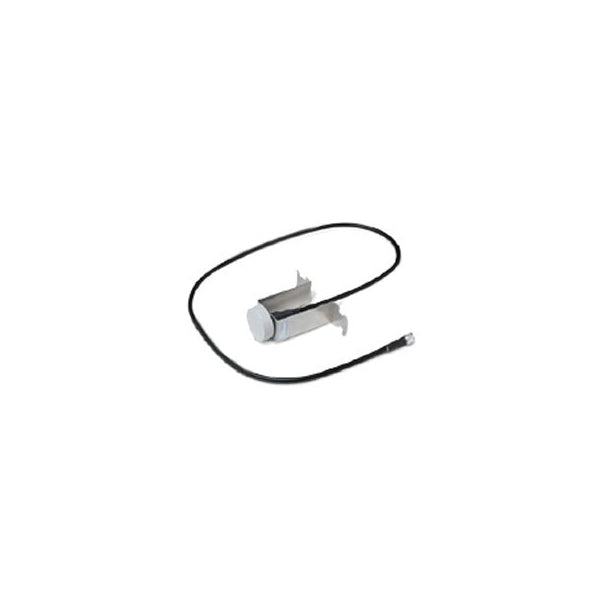

Cisco AIR-ANT58G10SSA-N | Aironet 5.8 GHz 9.5 dBi 60° Sector Antenna, N-type

AIR-ANT58G10SSA-N

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco Aironet sector antenna is a directional, mast-mount antenna for the 5.8 GHz UNII-3 band (5725-5825 MHz). It suits outdoor wireless bridge links, covering medium-range point-to-point and point-to-multipoint deployments where focused coverage in a defined sector is needed.

The antenna delivers 9.5 dBi of gain with a 60 degree horizontal and 60 degree vertical beamwidth. It is a non-diversity, symmetric sector design that connects through an N-type connector. As a passive antenna it requires no power of its own, and it fits a 1.5 to 2.5 inch mast for outdoor installation.

It is designed for use with Cisco Aironet 1400 Series wireless bridges over an N-type connection, and it is also among the antenna options Cisco lists for outdoor mesh access points.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Sector (directional) pattern for outdoor medium-range point-to-point and point-to-multipoint links
- Designed for use with Cisco Aironet 1400 Series bridges via an N-type connection
- Operates in the UNII-3 band (5725-5825 MHz)
- Mast-mount design for outdoor deployment
- Passive design with no power requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: AIR-ANT58G10SSA-N
- Antenna type: Sector, mast mount, non-diversity symmetric
- Frequency band: 5.8 GHz (UNII-3, 5725-5825 MHz)
- Gain: 9.5 dBi
- Horizontal beamwidth: 60 degrees
- Vertical beamwidth: 60 degrees
- Connector: N-type
- Mounting: 1.5 to 2.5 in mast mount
- Power: Passive antenna, no power required
- Application: Outdoor medium-range point-to-point and point-to-multipoint
- Compatible product: Cisco Aironet 1400 Series bridges

FAQs

Q: Which Cisco devices does this antenna work with?
A: It is designed for Cisco Aironet 1400 Series wireless bridges using an N-type connection. It is also listed among Cisco's mesh antenna options for outdoor mesh access points.

Q: Does this antenna need power?
A: No. It is a passive antenna and requires no power of its own.

Q: What kind of coverage pattern does it provide?
A: It is a sector antenna with 9.5 dBi gain and a 60 degree beamwidth in both the horizontal and vertical planes, giving focused directional coverage.

Q: Which frequency band does it operate in?
A: It operates in the 5.8 GHz UNII-3 band, 5725 to 5825 MHz, so it is not intended for 2.4 GHz or other 5 GHz sub-bands.

Q: How is it mounted?
A: It is a mast-mount antenna that fits a 1.5 to 2.5 inch mast for outdoor installation.
