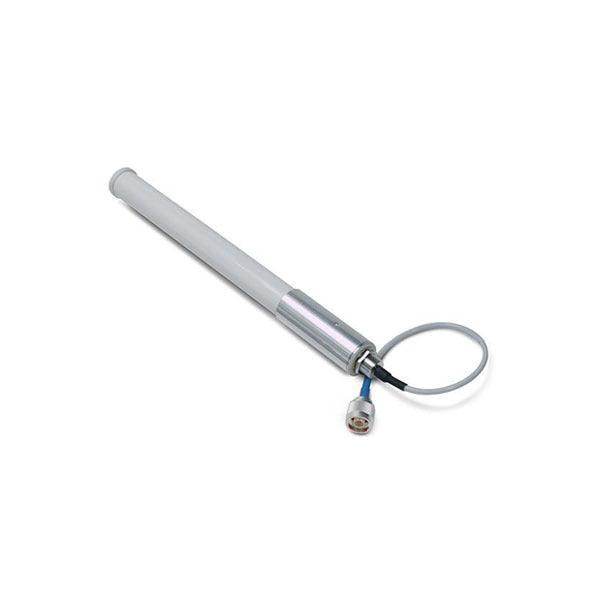

• Cisco AIR-ANT5175V-N 5 GHz omni antenna with silver sensor
1 1

Cisco

Cisco AIR-ANT5175V-N | Aironet 5 GHz 7.5 dBi Omni Antenna, N Connector

AIR-ANT5175V-N

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Aironet AIR-ANT5175V-N is a 5 GHz omnidirectional colinear array antenna for outdoor use. It is designed for the Cisco Aironet 1500 Series Lightweight Outdoor Mesh Access Point and suits outdoor 5 GHz mesh deployments where all-round coverage is needed.

The antenna covers 4.9 to 5.8 GHz (4900-5850 MHz) with 6.5 dBi gain across 4900-5000 MHz and 7.5 dBi gain across 5400-5850 MHz. It is a passive antenna with linear polarisation and a 50 ohm nominal impedance, so no power is required. The E-plane 3 dB beamwidth is 16 degrees, with an omnidirectional H-plane pattern. It uses an N-type connector, which makes it incompatible with other Aironet access points.

It is built for exposed sites, with an operating temperature range of -30 to 70 C and a wind rating of 100 mph sustained and 165 mph gusts. It mounts on the 5 GHz antenna mounting panel of the access point and needs only a wrench. For best results, mount it clear of obstructions and about 1.5 to 3 m above the roof line.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Omnidirectional colinear array design for 5 GHz coverage
- Covers the full 4.9 to 5.8 GHz range
- Up to 7.5 dBi gain in the 5400-5850 MHz range
- Outdoor-rated for -30 to 70 C operation
- Withstands 100 mph sustained wind and 165 mph gusts
- Mounts on the 5 GHz antenna mounting panel of the access point using only a wrench

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Omnidirectional colinear array
- Operating frequency range: 4900-5850 MHz
- 2.0:1 VSWR bandwidth: 4900-5850 MHz
- Gain (4900-5000 MHz): 6.5 dBi
- Gain (5400-5850 MHz): 7.5 dBi
- Polarisation: Linear
- Nominal input impedance: 50 ohms
- E-plane 3 dB beamwidth: 16 degrees
- H-plane 3 dB beamwidth: Omnidirectional
- Connector: N-type
- Length: 12.0 in. (30.5 cm)
- Weight: 6.0 oz (160 g)
- Operating temperature: -30 to 70 C (-22 to 158 F)
- Wind rating: 100 mph (160 km/h) sustained, 165 mph (265 km/h) gusts
- Power: Passive, no power required

FAQs

Q: Which access points is this antenna designed for?
A: It is designed for the Cisco Aironet 1500 Series Lightweight Outdoor Mesh Access Point. Because it uses an N-type connector, it is incompatible with other Aironet access points.

Q: Does the antenna need power?
A: No. It is a passive antenna and requires no power.

Q: What frequency range does it cover?
A: It covers 4.9 to 5.8 GHz (4900-5850 MHz), with 6.5 dBi gain at 4900-5000 MHz and 7.5 dBi gain at 5400-5850 MHz.

Q: How should it be mounted?
A: It mounts on the 5 GHz antenna mounting panel of the access point and needs only a wrench. Mount it clear of obstructions and about 1.5 to 3 m above the roof line.

Q: Is it suitable for harsh outdoor conditions?
A: Yes. It operates from -30 to 70 C and is rated for 100 mph sustained wind and 165 mph gusts.
