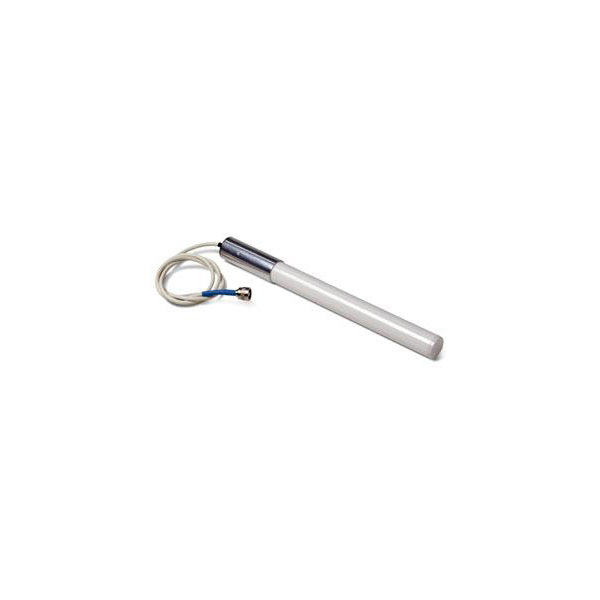

• Cisco AIR-ANT5160V-R 5GHz 6dBi omni antenna with white cylindrical sensor
1 1

Cisco

Cisco AIR-ANT5160V-R | Aironet 5 GHz 6 dBi Omni Antenna, RP-TNC

AIR-ANT5160V-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Aironet AIR-ANT5160V-R is a 5 GHz omnidirectional colinear-array antenna with 6 dBi peak gain. It is designed for large rooms or vaulted areas where extended 5 GHz coverage is needed, and it pairs with Cisco Aironet access points and bridges that use RP-TNC connectors.

The antenna covers 5150-5875 MHz with a 2:1 VSWR bandwidth of 5150-5850 MHz and a 50 Ohm nominal impedance. Polarisation is linear (vertical), with a 17 degree E-plane 3-dB beamwidth and an omnidirectional H-plane pattern. It connects through a 36 in. (91.4 cm) plenum-rated cable terminated in an RP-TNC male connector.

The ruggedised housing measures 11.5 in. (29.2 cm) long by 1 in. (2.5 cm) in diameter, weighs 12 oz. (0.34 kg) and is rated for operation from -30 to 70 C and winds up to 125 mph. As a passive antenna it needs no power.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Ruggedised high-performance colinear antenna design
- Omnidirectional pattern for extended coverage in large rooms or vaulted areas
- 6 dBi peak gain across the 5 GHz band
- Plenum-rated 36 in. cable with RP-TNC male connector
- Pole (mast) mount kit supplied for installation
- Passive design with no power required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Omnidirectional colinear array
- Operating frequency range: 5150-5875 MHz
- Nominal input impedance: 50 Ohms
- 2:1 VSWR bandwidth: 5150-5850 MHz
- Peak gain: 6 dBi
- Polarisation: Linear (vertical)
- E-plane 3-dB beamwidth: 17 degrees
- H-plane 3-dB beamwidth: Omnidirectional
- Cable length and type: 36 in. (91.4 cm) plenum rated
- Connector type: RP-TNC male
- Length: 11.5 in. (29.2 cm)
- Diameter: 1 in. (2.5 cm)
- Weight: 12 oz. (0.34 kg)
- Operating temperature range: -30 to 70 C (-22 to 158 F)
- Storage temperature range: -40 to 85 C (-40 to 185 F)
- Wind rating: 125 mph (200 kph)

FAQs

Q: Which devices does it work with?
A: It works with Cisco Aironet access points and bridges, and any 5 GHz Cisco Aironet radio that uses a reverse-polarity RP-TNC connector.

Q: Does it need power?
A: No. It is a passive antenna and requires no power.

Q: What frequency range does it cover?
A: It operates across 5150-5875 MHz, with a 2:1 VSWR bandwidth of 5150-5850 MHz.

Q: Is it suitable for large open spaces?
A: Yes. The omnidirectional pattern and 6 dBi gain are intended for large rooms or vaulted areas that need extended 5 GHz coverage.

Q: Is the cable plenum rated?
A: Yes. The 36 in. (91.4 cm) cable is plenum rated and ends in an RP-TNC male connector.
