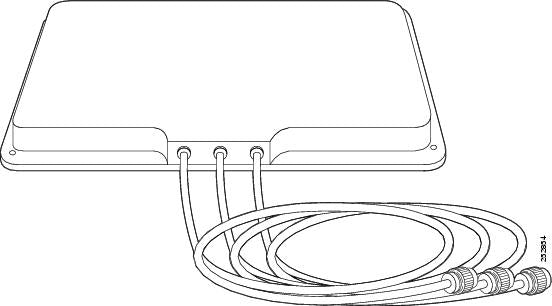

  • Cisco AIR-ANT5160NP 5 GHz MIMO directional patch antenna with 6 dBi gain
1 2

Cisco

Cisco AIR-ANT5160NP | Aironet 5 GHz 6 dBi 3-Element MIMO Patch Antenna, RP-TNC

AIR-ANT5160NP

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 5 GHz MIMO patch antenna is a directional antenna for Cisco Aironet access points that use external 5 GHz antenna ports. It suits wall-mounted indoor or outdoor deployments where coverage needs to be focused in one direction rather than spread omnidirectionally.

It is a 3-element MIMO design with 6 dBi gain across the 5150-5850 MHz range, with a 65 degree beamwidth in both azimuth and elevation. Three 3 ft (91.4 cm) plenum-rated leads terminate in RP-TNC connectors, and polarization is linear, vertical. VSWR is 2:1 or less and front-to-back ratio is better than 15 dB. The antenna measures 4 in. x 7 in. x 1 in. (10.16 x 17.78 x 2.54 cm) and is passive, so no power is required.

It connects over RP-TNC to Aironet access points with external 5 GHz MIMO antenna ports. For correct moisture drainage it must be installed with the orientation arrow pointing up.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 3-element MIMO design for 802.11n 5 GHz access points
- Directional patch pattern with 65 x 65 degree beamwidth for focused coverage
- Three plenum-rated 3 ft cable leads with RP-TNC connectors
- Wall-mountable for indoor or outdoor installation
- Linear, vertical polarization with better than 15 dB front-to-back ratio
- Passive antenna with no power requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: 3-element MIMO patch
- Operating frequency range: 5150-5850 MHz
- Gain: 6 dBi
- Polarization: Linear, vertical
- Azimuth plane beamwidth: 65 degrees
- Elevation plane beamwidth: 65 degrees
- VSWR: 2:1 or less
- Front-to-back ratio: greater than 15 dB
- Connector: 3 x RP-TNC
- Cable length and type: 3 ft (91.4 cm), plenum rated
- Length: 4 in. (10.16 cm)
- Width: 7 in. (17.78 cm)
- Depth: 1 in. (2.54 cm)
- Power: Passive, no power required
- Environment: Indoor/outdoor

FAQs

Q: Does this antenna need power?
A: No. It is a passive antenna and needs no power supply or PoE.

Q: Which access points does it connect to?
A: It connects via RP-TNC to Aironet access points that have external 5 GHz MIMO antenna ports, for example the Aironet 1262.

Q: Is it a directional or omnidirectional antenna?
A: It is directional. The patch design has a 65 degree beamwidth in both azimuth and elevation, which focuses coverage in one direction.

Q: How should it be mounted?
A: It can be wall-mounted. Install it with the orientation arrow pointing up so that moisture drains correctly.

Q: Can it be used outdoors?
A: Yes. The Cisco installation guide lists it for both indoor and outdoor use.
