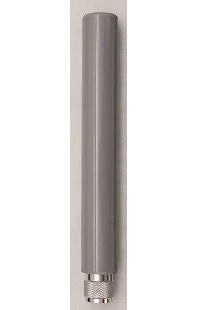

• Cisco AIR-ANT5150HG-N 5GHz Omni Antenna with Gray Metallic Design
1 1

Cisco

Cisco AIR-ANT5150HG-N | Aironet 5 GHz 5 dBi Omni Antenna, Horizontal, N-type

AIR-ANT5150HG-N

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Aironet omnidirectional antenna is built for outdoor 5 GHz coverage, including mesh deployments, with Cisco Aironet 1560 and 1570 series outdoor access points. It connects through the access point's N-type antenna port and mounts directly to the access point with no cable attachments and no special tools.

It delivers 5 dBi of gain across 5150 to 5925 MHz with horizontal polarisation, which is what separates it from the vertically polarised AIR-ANT5150VG-N. The pattern is omnidirectional in the azimuth plane with a 2 dB maximum ripple, VSWR is 2:1 and nominal input impedance is 50 ohm. The antenna is 200.2 mm long, 25.4 mm in diameter and weighs 0.1 kg.

Built for exposed sites, it carries an IP67 rating, operates from -40 to +70 C and has a 100 mph wind rating. For best omnidirectional performance, mount the access point clear of obstructions beside the antenna, roughly 1.5 to 3 m above the roof line and away from power lines. Cisco recommends sealing outdoor connections with a coax seal such as CoaxSeal.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Omnidirectional radiation pattern for 5 GHz coverage
- Horizontal polarisation with 5 dBi gain
- Mounts directly to the access point antenna port with no cable attachments or special tools
- N-Male connector for Cisco Aironet outdoor access points
- IP67 rated for water and foreign body ingress
- Operates from -40 to +70 C with a 100 mph wind rating
- Passive antenna, no power supply required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Omnidirectional
- Operating frequency range: 5150 - 5925 MHz
- Gain: 5 dBi
- Polarisation: Horizontal
- VSWR: 2:1
- Nominal input impedance: 50 ohm
- Azimuth plane ripple: 2 dB (max)
- Azimuth plane 3 dB beamwidth: Omnidirectional
- Connector: N-Male
- Length: 200.2 mm (7.88 in)
- Diameter: 25.4 mm (1.0 in)
- Weight: 0.1 kg (3.5 oz)
- Operating temperature: -40 to +70 C
- Storage temperature: -40 to +85 C
- Ingress protection: IP67
- Wind rating (operational): 161 kph (100 mph)

FAQs

Q: Which access points is this antenna designed for?
A: It is designed for Cisco Aironet outdoor access points with 5 GHz radios, and the Cisco antenna reference guide lists it as suitable for Aironet 1560 and 1570 mesh access points. It connects through the access point's N-type antenna port.

Q: What is the difference between AIR-ANT5150HG-N and AIR-ANT5150VG-N?
A: Both are 5 GHz, 5 dBi omnidirectional antennas with an N-male connector. This model, AIR-ANT5150HG-N, has horizontal polarisation, while AIR-ANT5150VG-N is vertically polarised.

Q: Does this antenna need power or a licence?
A: No. It is a passive antenna, so it needs no power supply and has no licensing requirement.

Q: Is it suitable for outdoor installation?
A: Yes. It is IP67 rated, operates from -40 to +70 C and has a 100 mph wind rating. Cisco recommends sealing outdoor connections with a coax seal such as CoaxSeal.

Q: How should I position it for the best coverage?
A: Mount the access point clear of obstructions beside the antenna for the best omnidirectional performance. Cisco suggests roughly 1.5 to 3 m above the roof line, away from power lines.
