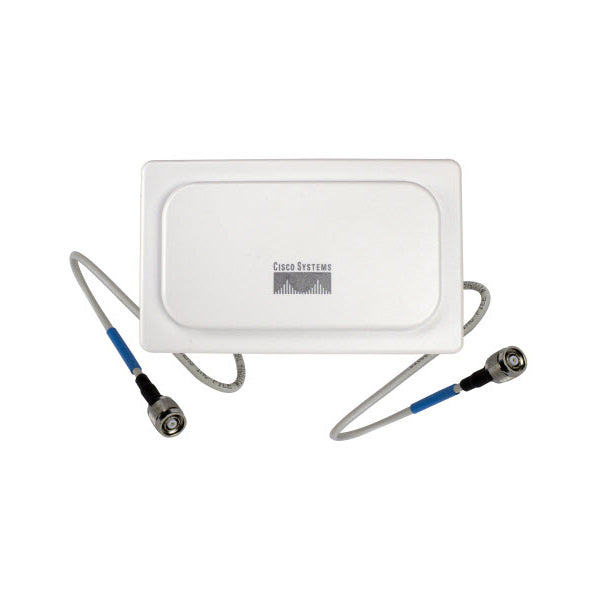

• Cisco AIR-ANT5145V-R 5GHz 4.5dBi low-profile omni access point with cables
1 1

Cisco

Cisco AIR-ANT5145V-R | Aironet 5GHz 4.5dBi Omni Antenna, 2x RP-TNC, 36 in

AIR-ANT5145V-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Aironet AIR-ANT5145V-R is a low-profile 5 GHz indoor omnidirectional diversity antenna built on a TM02 mode patch design. It suits indoor office deployments where a 5 GHz Cisco Aironet access point or bridge needs a compact omnidirectional antenna.

It delivers 4.5 dBi gain across 5150 to 5850 MHz, with a 2:1 VSWR bandwidth of 5000 to 6000 MHz and linear polarisation. The pattern is omnidirectional in the H-plane with a 50 degree E-plane 3 dB beamwidth and a 10 dB front-to-back ratio. Two RP-TNC male connectors terminate a 36 in. (91.4 cm) plenum-rated, UV-stable LMR-185 cable. The antenna is passive, so no power is required, and it is UL2043 compliant for plenum-space installation.

It is designed for Cisco Aironet access points and bridges, and works with any 5 GHz Cisco Aironet radio device that uses reverse polarity TNC (RP-TNC) connectors. For best results, mount it horizontally and as high as possible, away from metal obstructions.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Low-profile omnidirectional TM02 mode patch design
- Dual RP-TNC connectors for diversity operation
- Plenum-rated, UV-stable LMR-185 cable
- UL2043 compliant for plenum-space installation
- Wide 5150-5850 MHz coverage of the 5 GHz band
- Passive design with no power requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Omnidirectional TM02 Mode Patch
- Operating frequency range: 5150 - 5850 MHz
- Gain: 4.5 dBi
- Nominal input impedance: 50 Ohms
- 2:1 VSWR bandwidth: 5000 - 6000 MHz
- Polarisation: Linear
- Front-to-back ratio: 10 dB
- E-plane 3 dB beamwidth: 50 degrees
- H-plane 3 dB beamwidth: Omnidirectional
- Cable: 36 in. (91.4 cm) plenum-rated, UV-stable LMR-185
- Connectors: 2 x RP-TNC male
- Length: 5 in. (12.7 cm)
- Width: 3 in. (7.6 cm)
- Weight: 0.75 oz (21.2 g)
- Operating temperature: -22 to 158 F (-30 to 70 C)
- Storage temperature: -40 to 185 F (-40 to 85 C)
- UL2043 compliant: Yes
- Environment: Indoor, office

FAQs

Q: Which devices can this antenna be used with?
A: It is designed for Cisco Aironet access points and bridges. It also works with any 5 GHz Cisco Aironet radio device that uses reverse polarity TNC (RP-TNC) connectors.

Q: Does it need power?
A: No. It is a passive antenna and requires no power.

Q: Is it suitable for outdoor use?
A: No. It is intended for indoor and office environments.

Q: Is it suitable for installation in plenum spaces?
A: Yes. It is UL2043 compliant and uses plenum-rated cable.

Q: How should it be mounted for best performance?
A: Mount it horizontally and as high as possible, away from metal obstructions.
