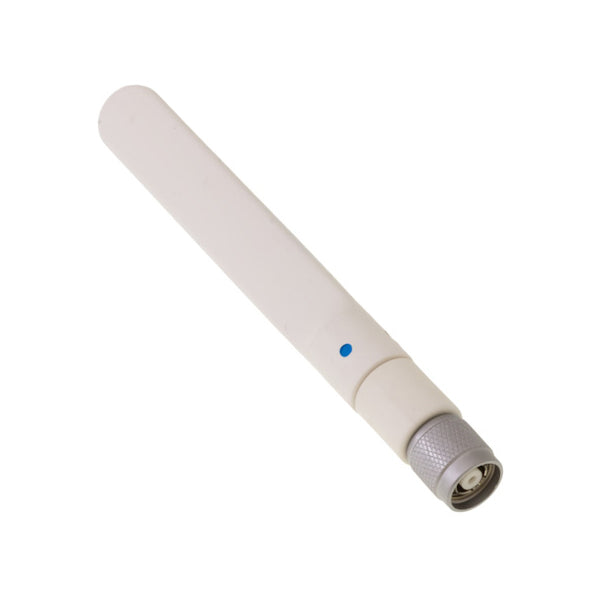

Cisco AIR-ANT5135DW-R | Aironet 3.5 dBi 5GHz Dipole Antenna, RP-TNC, White

AIR-ANT5135DW-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Aironet articulated dipole antenna is a 5 GHz indoor antenna with 3.5 dBi gain and an RP-TNC plug connector, finished in white. It suits indoor 5 GHz Wi-Fi deployments that use Cisco Aironet access points or radios with RP-TNC antenna ports, where an adjustable, omnidirectional antenna is needed.

The antenna covers the full 5 GHz band from 5150 to 5850 MHz with a nominal input impedance of 50 Ohms. Polarisation is linear and vertical, with a 40 degree E-plane beamwidth and omnidirectional coverage in the H-plane. It measures 5.3 in. (13.4 cm) in length with a 3.4 in. (8.6 cm) radome and a 0.62 in. (1.5 cm) width. As a passive antenna it needs no power.

It is designed for Cisco Aironet 5 GHz radio products with an RP-TNC connector and attaches directly to the antenna port.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Articulated dipole design for adjustable orientation
- Omnidirectional coverage in the horizontal plane
- RP-TNC connector for direct attachment to compatible Cisco Aironet 5 GHz radios
- Covers the full 5 GHz band (5150 - 5850 MHz)
- Passive antenna design with no power required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dipole (articulated)
- Operating frequency range: 5150 - 5850 MHz
- Nominal input impedance: 50 Ohms
- 2:1 VSWR bandwidth: 5150 - 5850 MHz
- Gain: 3.5 dBi
- Polarisation: Linear, vertical
- E-plane 3-dB beamwidth: 40 degrees
- H-plane 3-dB beamwidth: Omnidirectional
- Connector type: RP-TNC plug
- Length: 5.3 in. (13.4 cm)
- Radome length: 3.4 in. (8.6 cm)
- Width: 0.62 in. (1.5 cm)
- Colour: White

FAQs

Q: Does this antenna need power?
A: No. It is a passive antenna, so it needs no power supply and draws nothing from the access point beyond the radio signal.

Q: Which devices does it work with?
A: It is designed for Cisco Aironet 5 GHz radio products that use an RP-TNC connector. Check that your access point or radio has an RP-TNC antenna port before ordering.

Q: Is it suitable for outdoor use?
A: No. This antenna is intended for indoor deployments.

Q: Does it cover the 2.4 GHz band?
A: No. It operates across 5150 to 5850 MHz only, so it is for 5 GHz radios.
