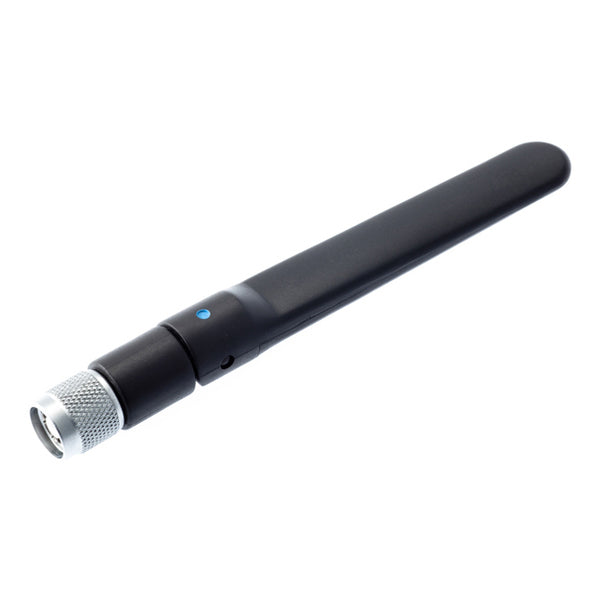

• Cisco AIR-ANT5135D-R black and silver 5 GHz dipole antenna with blue LED
1 1

Cisco

Cisco AIR-ANT5135D-R | Aironet 5 GHz 3.5 dBi Dipole Antenna, Black, RP-TNC

AIR-ANT5135D-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Aironet 3.5 dBi articulated dipole antenna is a 5 GHz indoor antenna for Cisco Aironet access points and bridges that use RP-TNC connectors. It suits indoor office environments, where it attaches directly to the RP-TNC 5 GHz connector on the device.

This dipole covers 5150 to 5850 MHz with 3.5 dBi of gain and a 50 Ohm nominal input impedance. Polarisation is linear and vertical, with an omni-directional horizontal pattern and a 40 degree E-plane 3-dB beamwidth. The articulated base rotates 360 degrees at the connection point and the joint adjusts from 0 to 90 degrees, so the radiating element can be angled to suit the installation. This SKU has a black radome. It is electrically identical to the AIR-ANT5135DG-R (gray) and AIR-ANT5135DW-R (white), which differ only in radome colour.

This is a passive antenna and needs no power. It must be fitted to a 5 GHz antenna port, marked with a blue dot. Connecting it to a 2.4 GHz port degrades radio performance and could damage the radio.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Articulated base rotates 360 degrees at the connection point
- Joint adjusts from 0 to 90 degrees
- Omni-directional horizontal pattern
- Attaches directly to the access point's RP-TNC connector with no cable
- Passive design, no power required
- Electrically identical to the gray AIR-ANT5135DG-R and white AIR-ANT5135DW-R, only the radome colour differs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dipole (articulated)
- Operating frequency range: 5150-5850 MHz
- Nominal input impedance: 50 Ohms
- 2:1 VSWR bandwidth: 5150-5850 MHz
- Gain: 3.5 dBi
- Polarisation: Linear, vertical
- E-plane 3-dB beamwidth: 40 degrees
- H-plane 3-dB beamwidth: Omni-directional
- Connector type: RP-TNC plug
- Length: 5.3 in. (13.4 cm)
- Radome length: 3.4 in. (8.6 cm)
- Width: 0.62 in. (1.5 cm)
- Operating temperature: -22 to 158 F (-30 to 70 C)
- Storage temperature: -40 to 185 F (-40 to 85 C)
- Environment: Indoor, office
- Radome colour: Black

FAQs

Q: Which devices does this antenna work with?
A: It works with Cisco Aironet access points and bridges that use RP-TNC connectors on a 5 GHz radio.

Q: Which antenna port should I connect it to?
A: Connect it to a 5 GHz antenna port, which is marked with a blue dot. Connecting it to a 2.4 GHz port degrades radio performance and could damage the radio.

Q: Does it need power or a cable?
A: No. It is a passive antenna that attaches directly to the access point's RP-TNC connector without a cable.

Q: How does it differ from the AIR-ANT5135DG-R and AIR-ANT5135DW-R?
A: The three are electrically identical. This SKU has a black radome, the DG-R is gray and the DW-R is white.
